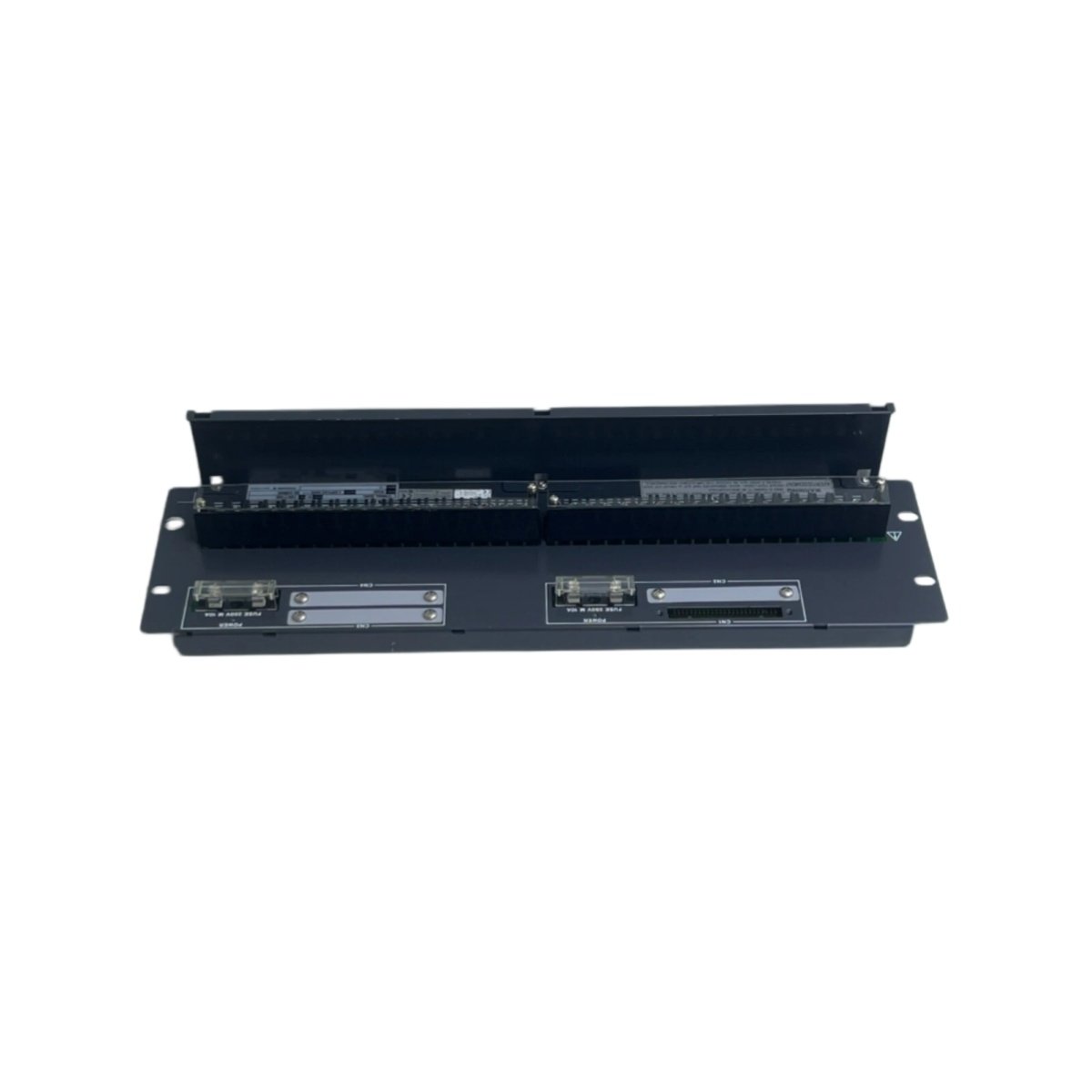

The Yokogawa SED4D-11 digital terminal board handles field wiring termination for discrete control signals. Engineers select this unit for organized signal routing across process automation environments. Moreover, its compact design supports straightforward mounting inside existing cabinets.

Interface and Connectivity

The board links digital field devices to I/O modules through clearly labeled screw terminals. Additionally, it provides multiple termination points for discrete 24 VDC signals. These terminals accept standard wire gauges, therefore covering common industrial wiring requirements. Routing stays clean, which simplifies troubleshooting considerably.

Physical Dimensions and Weight

The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The SED4D-11 integrates terminal blocks with labeling strips for clear identification. It also contains one filtering capacitor rated at 100 µF for signal stability. Therefore, this energy storage element suppresses noise during digital transmission. The board carries roughly 70 discrete components for dependable operation.

Technical Specifications Table

Why This Board Suits Industrial Applications

System integrators value the SED4D-11 for its organized wiring and simple installation. Meanwhile, the filtering capacitor protects digital signals from electrical noise. As a result, system reliability improves while maintenance costs decrease.
