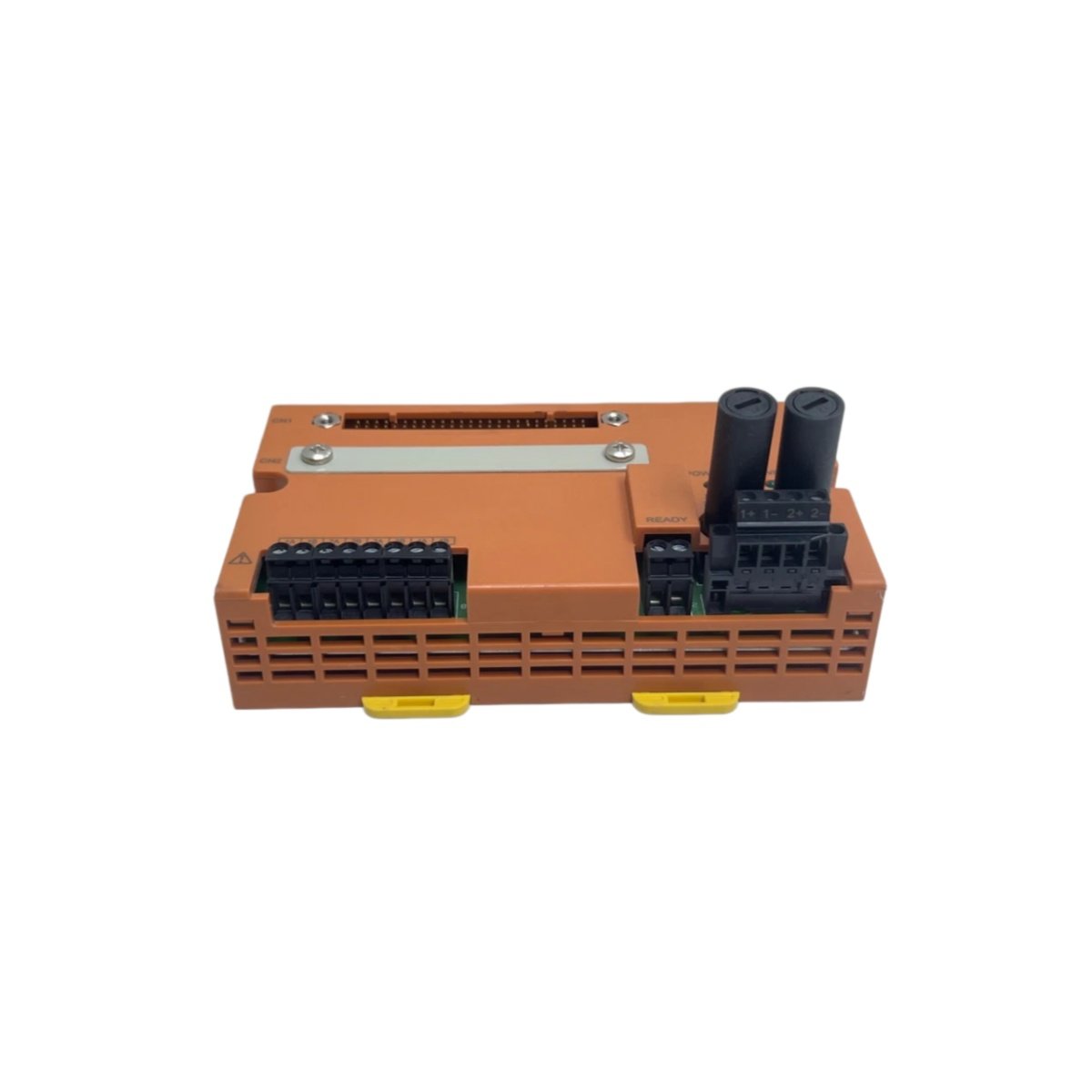

The Yokogawa SED2D-11 signal conditioner module converts and isolates analog field signals for industrial control systems. Engineers choose this unit for accurate signal processing across process automation environments. Moreover, its compact housing supports straightforward mounting inside existing cabinets.

Interface and Connectivity

The module connects field devices to control systems through labeled screw terminals. Additionally, it handles multiple analog channels with voltage and current compatibility. These terminals accept standard wire gauges, therefore covering common industrial wiring requirements. Signal isolation keeps measurement loops clean, which reduces noise interference considerably.

Physical Dimensions and Weight

The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The SED2D-11 integrates isolation amplifier circuits for stable signal conversion. It also contains one filtering capacitor rated at 100 µF for output stability. Therefore, this energy storage element suppresses ripple during analog transmission. The board carries roughly 90 discrete components for dependable operation.

Technical Specifications Table

Why This Module Suits Industrial Applications

System integrators value the SED2D-11 for its stable conversion and simple wiring. Meanwhile, the isolation circuits protect control systems from ground loops. As a result, measurement accuracy improves while maintenance costs decrease.
