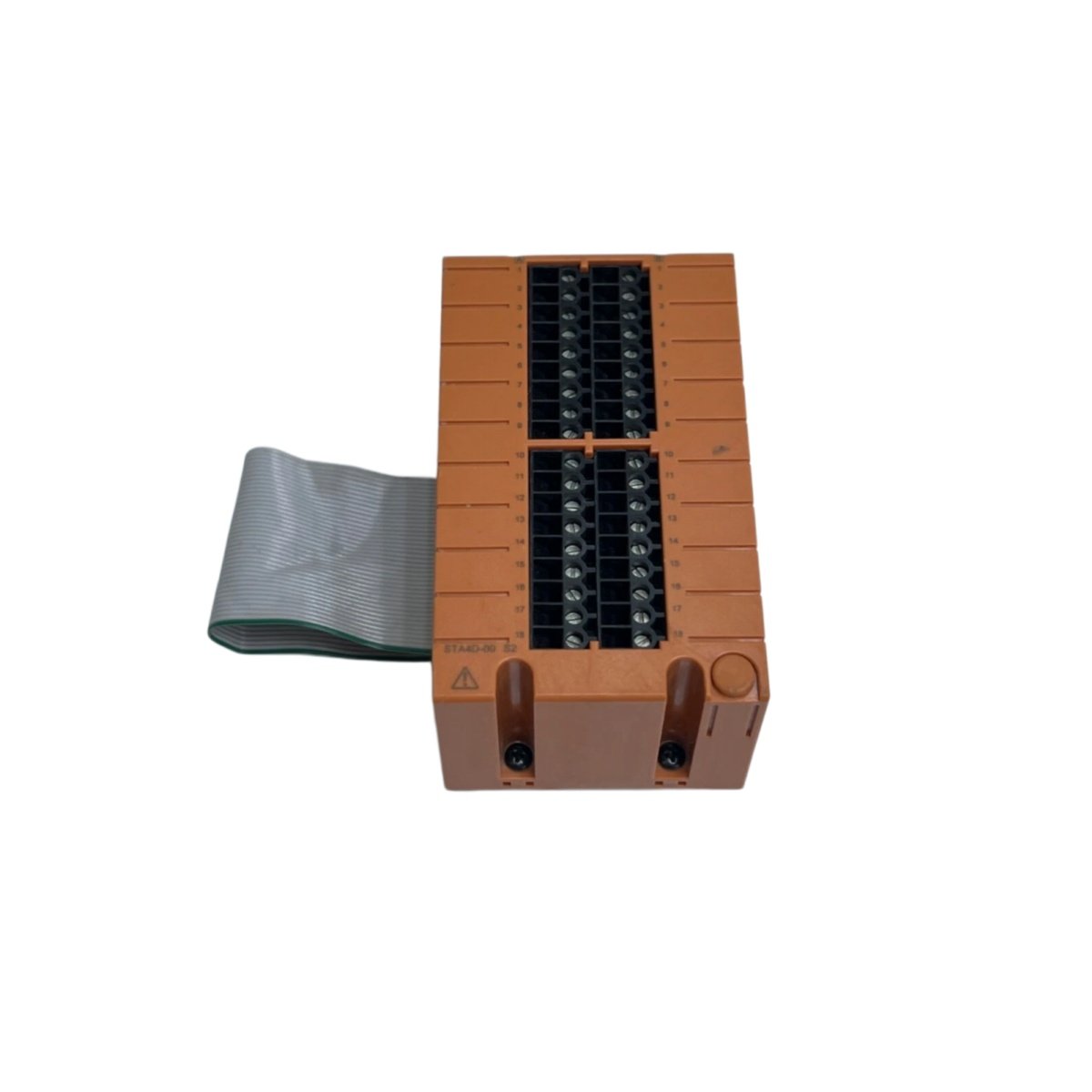

The Yokogawa SEA4D-01 terminal board provides reliable field wiring termination for industrial control systems. Engineers choose this unit for clean signal routing across process automation environments. Moreover, its compact design supports straightforward mounting inside existing cabinets.
Interface and Connectivity
The board connects field wiring to I/O modules through clearly labeled screw terminals. Additionally, it offers multiple termination points for analog and digital signals. These terminals accept standard wire gauges, therefore covering common industrial wiring requirements. Signal routing remains organized, which simplifies troubleshooting considerably.
Physical Dimensions and Weight
The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The SEA4D-01 integrates terminal blocks with labeling strips for identification. It also contains one filtering capacitor rated at 100 µF for signal stability. Therefore, this energy storage element suppresses noise during transmission. The board carries roughly 60 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | SEA4D-01 |
| Category | Terminal Board |
| Termination Points | Multiple |
| Wire Gauge | Standard Industrial |
| Dimensions (W×H×D) | 28.6 × 100 × 90 mm |
| Weight | ~150 g |
| Connector Type | Screw Terminal |
| Energy Storage | 100 µF Capacitor |
| Operating Temperature | 0°C to 55°C |
Why This Board Suits Industrial Applications
System integrators value the SEA4D-01 for its organized wiring and simple installation. Meanwhile, the filtering capacitor protects signals from electrical noise. As a result, system reliability improves while maintenance costs decrease.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
