Technical Overview

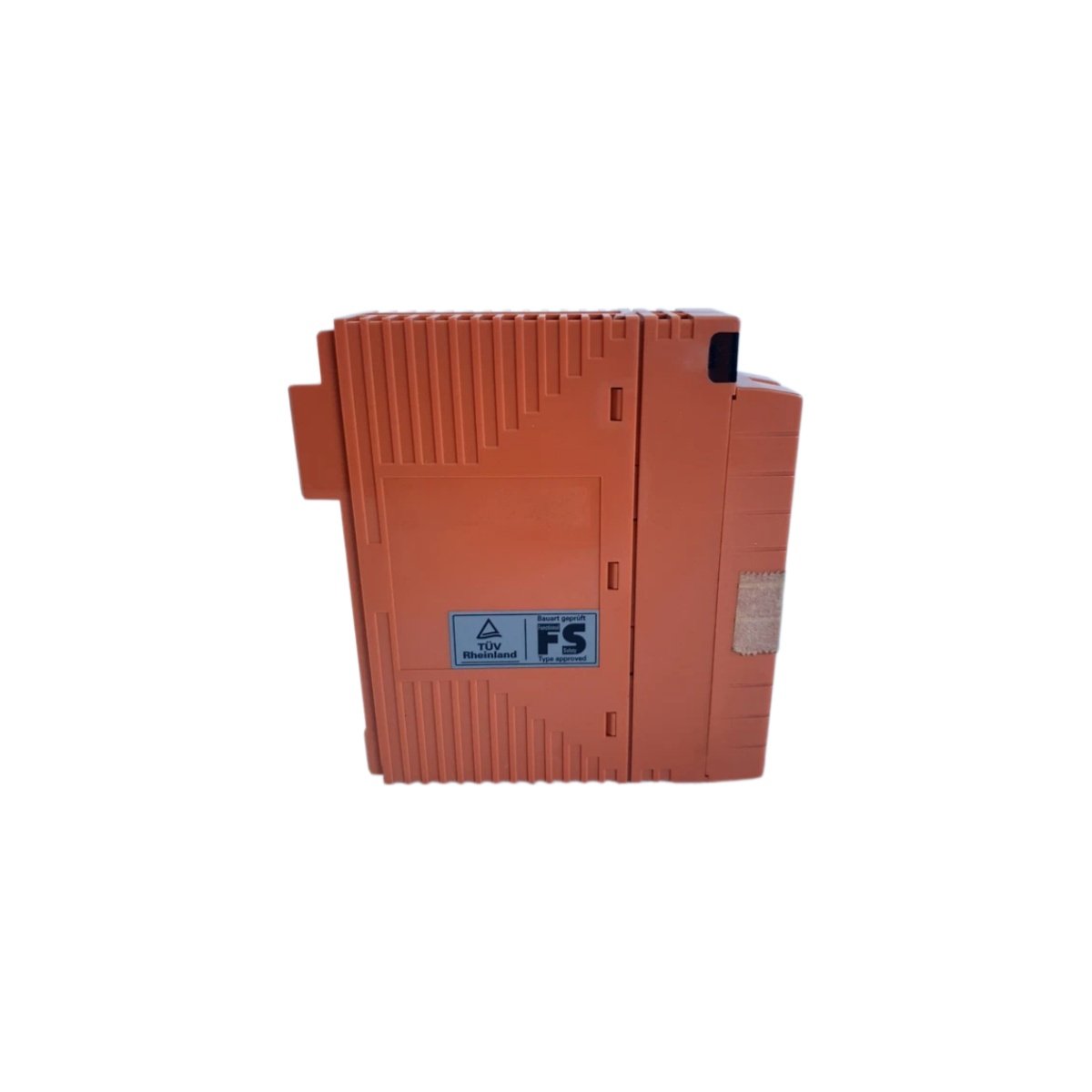

The Yokogawa SCB110-S0 functions as a versatile wiring check adapter designed for Yokogawa digital I/O modules and termination boards. This tool allows technicians to verify field wiring integrity before system energization, preventing costly startup errors. Its passive design draws no external power, while the compact form factor enables easy handling in crowded cabinets. The SCB110-S0 significantly reduces commissioning time by identifying open circuits, short circuits, and reversed polarity connections.

Key Technical Specifications

Wiring Verification and Troubleshooting

The Yokogawa SCB110-S0 performs comprehensive cable testing, detecting open and short circuits along with reversed wiring. It provides immediate visual feedback through individual LEDs for each channel, allowing rapid fault identification. Consequently, technicians can resolve wiring issues before system startup, avoiding potential damage to field devices and controllers.

Design and Field Usability

This wiring check adapter requires no external power source or software configuration, enabling instant deployment in the field. Its compact, lightweight design allows comfortable handling in tight cabinet spaces. Furthermore, the SCB110-S0 supports up to 128 channels, making it ideal for large-scale I/O installations in chemical plants and power stations.

Safety and Practical Applications

The SCB110-S0 uses a low-voltage test signal, ensuring complete safety for field devices and personnel during testing. It also includes reversed polarity detection, a common issue in digital I/O wiring. With its robust construction and straightforward operation, this adapter enhances installation quality and reduces commissioning timelines.
