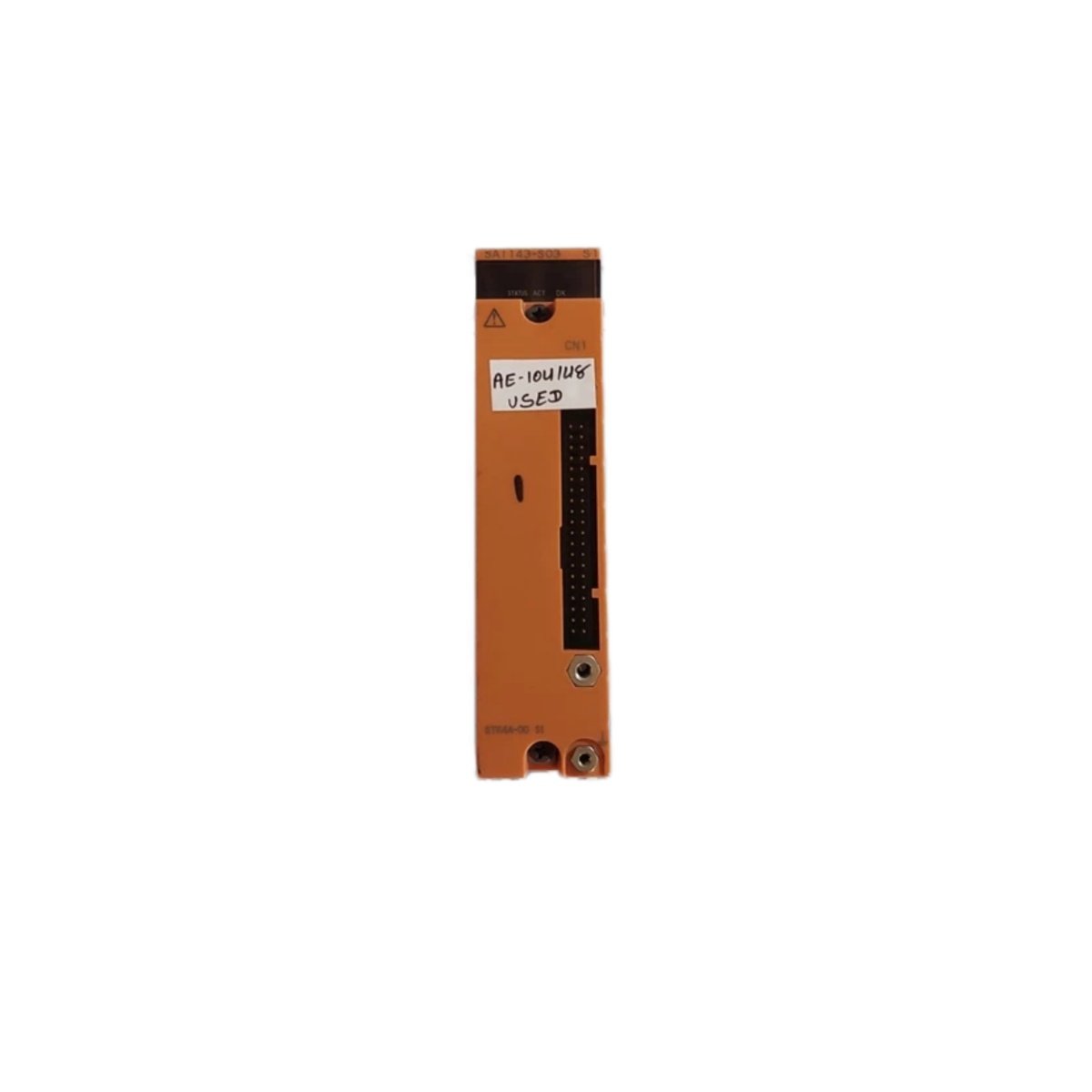

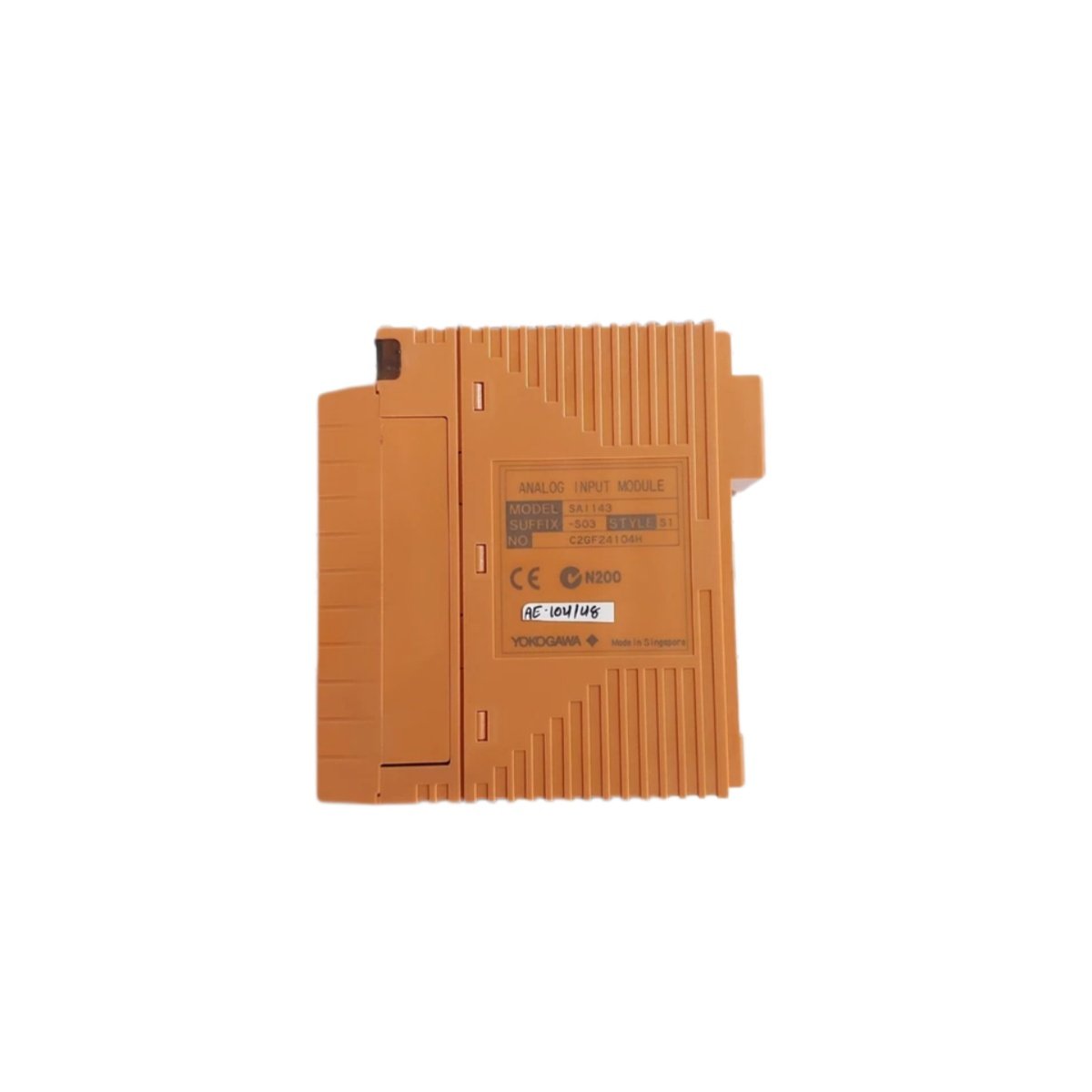

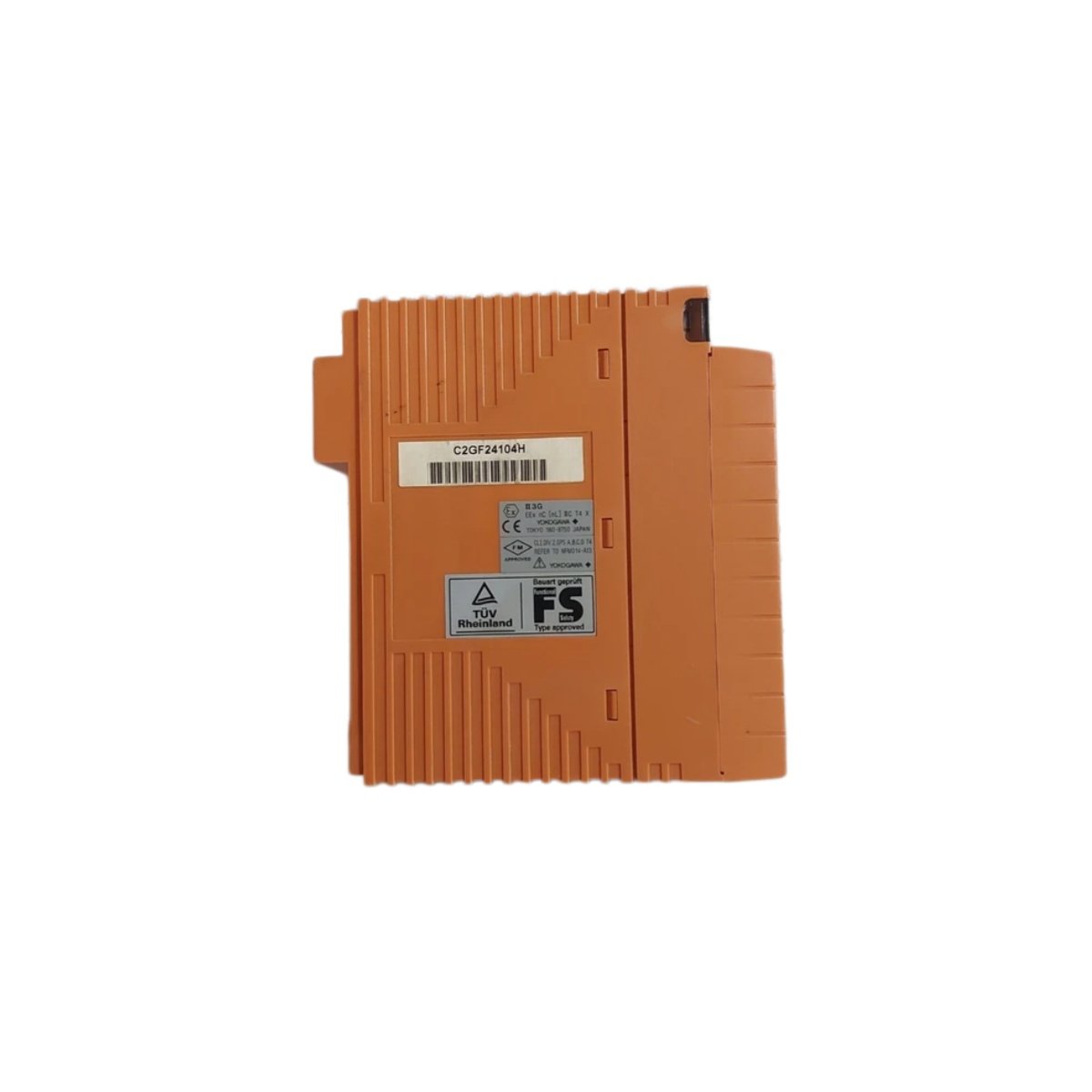

This Yokogawa analog input module converts field sensor signals for Centum VP DCS applications. It provides 16 isolated differential channels for high-density I/O configurations. Engineers can deploy this unit in continuous process monitoring and control systems. Its robust design ensures reliable operation across various industrial environments. The module supports multiple input types through flexible configuration options.

Physical Dimensions and Rack Installation

The module measures 4.9 inches in height and 1.4 inches in width. Its sturdy metal housing weighs approximately 1.8 pounds for stable rack mounting. A 64-pin DIN connector handles all field wiring and communication interfaces. The unit slides smoothly into standard Centum VP I/O racks. This design enables rapid replacement without complex disassembly procedures.

Input Channel Configuration and Signal Support

The module offers 16 differential channels for versatile analog signal acquisition. Each channel accepts 4-20 mA current signals from process transmitters. The unit also handles 0-10 VDC voltage inputs from various sensing devices. An onboard jumper selects the appropriate input type per channel individually. This flexibility accommodates mixed signal types within a single module.

Resolution, Accuracy, and Conversion Performance

The module delivers 16-bit resolution for high-precision measurement of variables. Its accuracy reaches ±0.1% of full scale at standard ambient conditions. The unit achieves a conversion time of 50 milliseconds per channel. An internal digital filter attenuates high-frequency electrical noise effectively. This filtering ensures stable readings for critical control applications.

Communication Interface and HART Protocol

The module communicates via the ESB bus at 10 Mbps data rates. This bus transfers real-time process data to the field control unit. The unit supports HART protocol pass-through on every input channel. This capability enables digital access to smart instrument parameters. Engineers can read device diagnostics and calibration data through the interface.

Power Supply Requirements and Thermal Management

The module draws 300 mA from the 5 VDC backplane supply for logic circuits. It also consumes 200 mA from the 24 VDC field supply for loop excitation. Total power dissipation reaches approximately 8 watts under maximum loading. An integral aluminum heat sink dissipates thermal energy without fans. This passive cooling design enhances long-term reliability in the field.

Diagnostic Monitoring and Status Indication

The front panel features 16 green LED indicators for real-time channel status. Two additional LEDs display module health and communication integrity. The module performs continuous self-diagnostics on all analog channels. It detects open-wire conditions and out-of-range signals promptly. These diagnostic functions simplify troubleshooting and minimize production interruptions.

Environmental Ratings and Standards Compliance

The module operates reliably from 0 to 55 degrees Celsius ambient temperature. Its conformal-coated PCB resists moisture and airborne contaminants effectively. The unit withstands 95% non-condensing humidity for versatile deployment. It carries CE and UL certifications for global industrial applications. These approvals streamline equipment certification for international projects.
