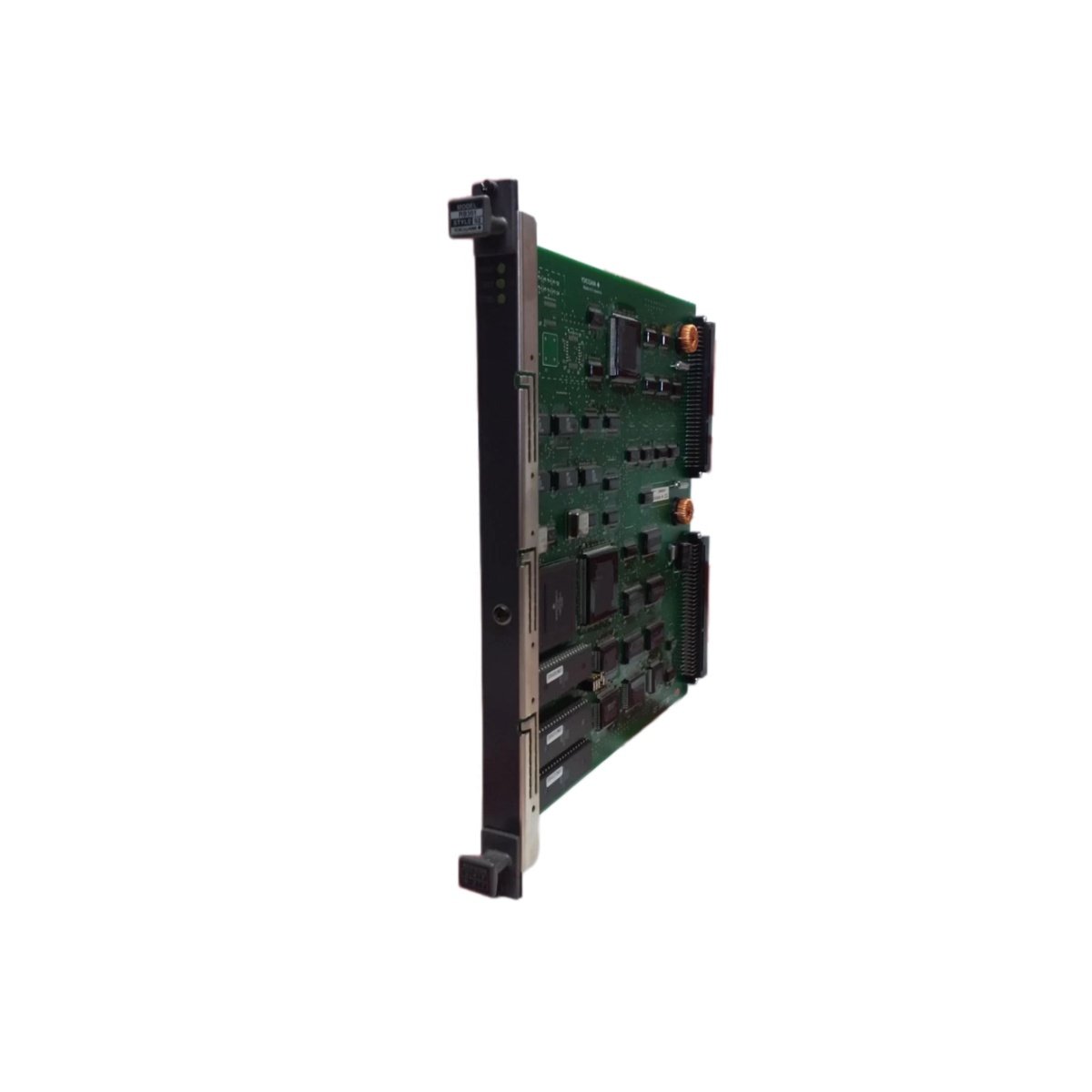

The RB301 operates as an S2 RIO bus interface master card within Yokogawa distributed control systems. This unit manages communication between the host controller and remote I/O racks. Consequently, engineers gain a dependable network link for large-scale process automation.

Technical Specifications Overview

The RB301 combines a compact card body with rugged industrial construction. Moreover, its parameter set helps engineers plan network topology and cable routing accurately.

Interface and Network Communication Details

The RB301 links remote racks through a dedicated S2 RIO bus port. Therefore, it exchanges process data quickly with distributed I/O modules. The master card manages polling and error detection across the network segment. In addition, the module draws 24 V DC directly from the rack power rail.

Physical Characteristics and Installation

This card measures roughly 130 mm wide and 100 mm high. Furthermore, its 45 mm depth suits compact cabinet layouts. The RB301 weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the RB301 for remote I/O coordination and distributed control tasks. Meanwhile, front-panel LEDs show live bus status during troubleshooting. The card holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for power.
