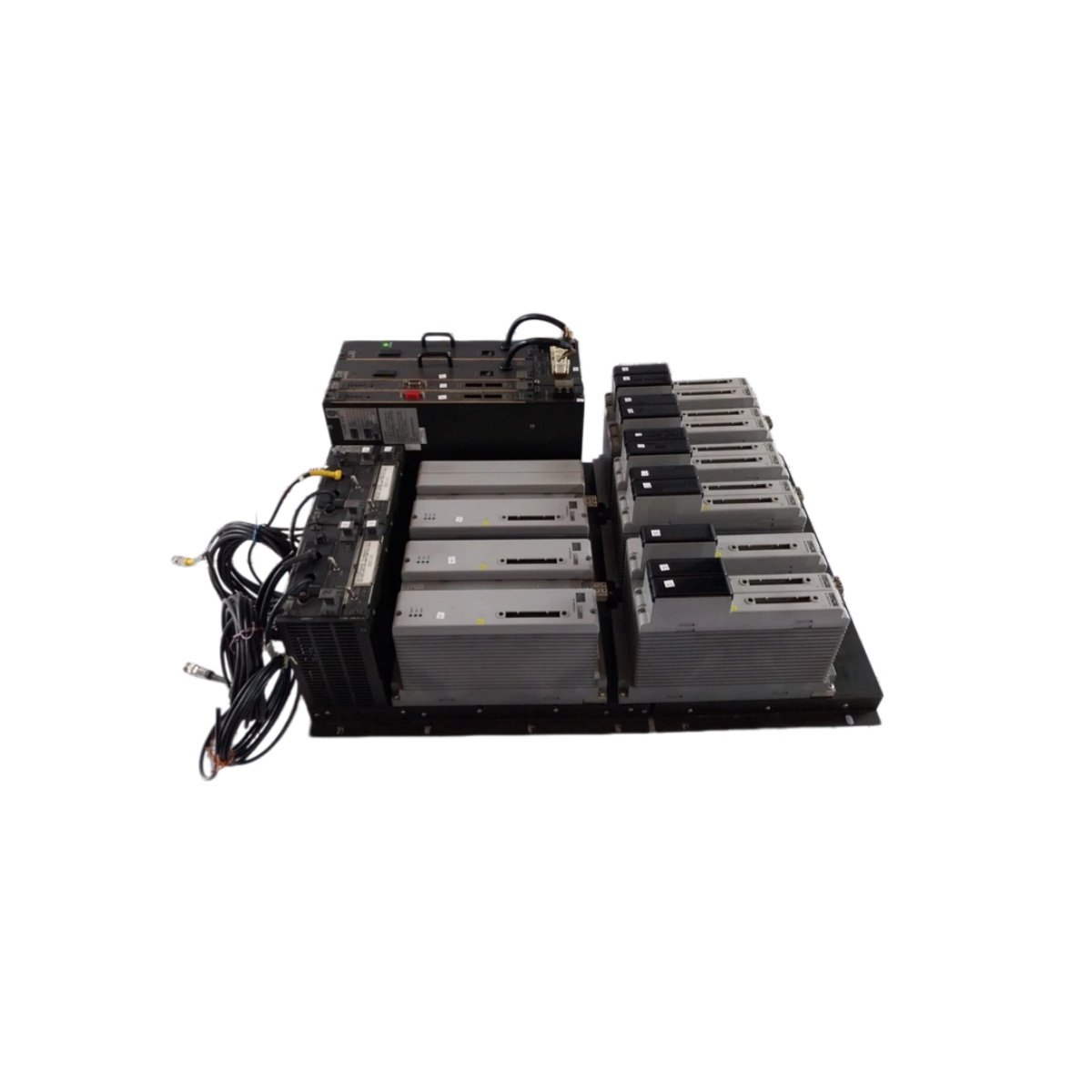

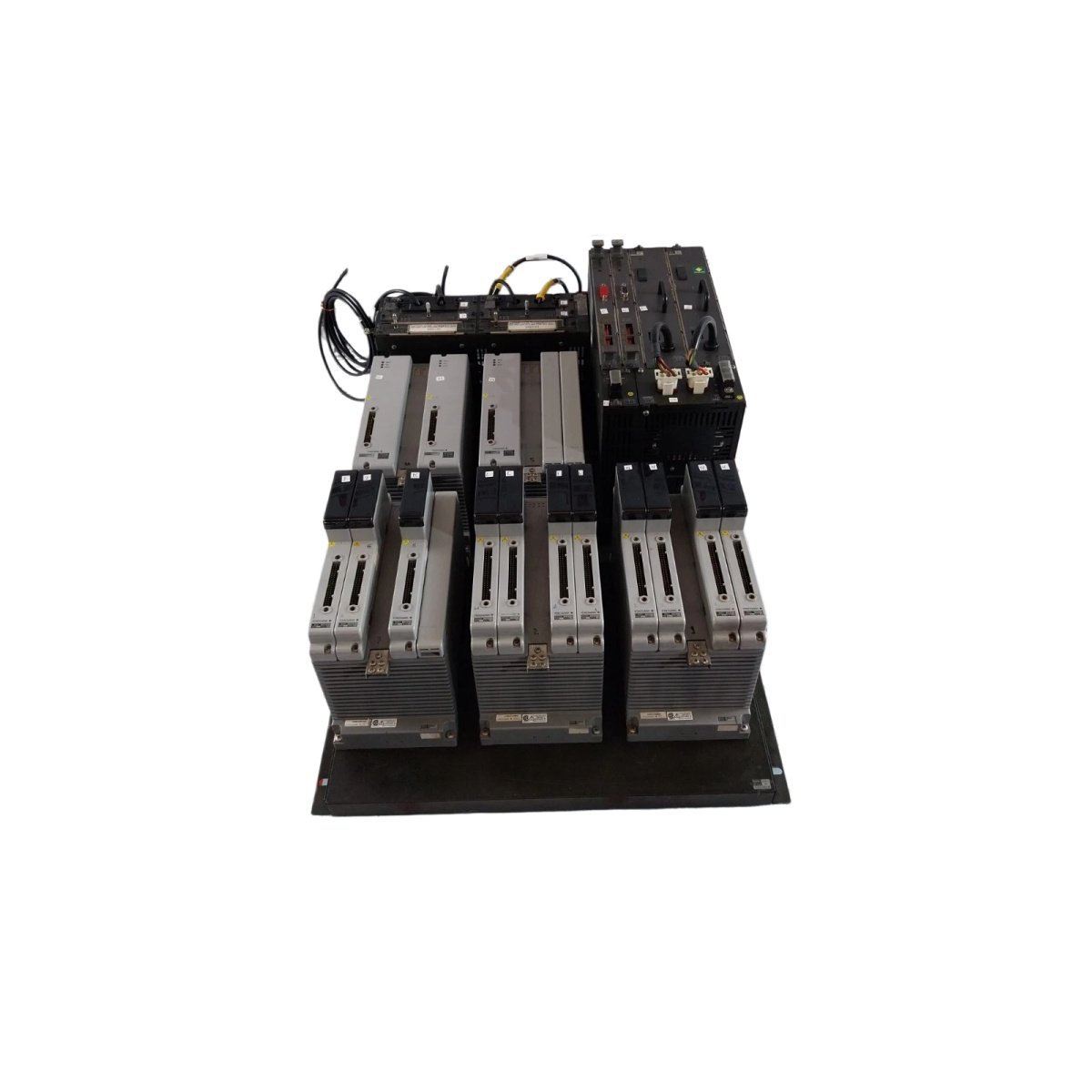

The PRK71 operates as a power distribution module within Yokogawa industrial control cabinets. This unit routes electrical power to multiple connected modules and field devices. Engineers depend on its organized distribution design for stable system power delivery.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Power Distribution Module |
| Compatibility | Yokogawa Control and Measurement Systems |
| Module Width | Compact rack-mount housing |
| Weight | Approximately 1.2 kg |
| Interface Type | System backplane and terminal connections |
| Distribution Channels | Multiple fused output branches |
| Input Voltage | Standard industrial DC supply |
| Output Protection | Integrated fuse and breaker protection |
| Connector Count | Screw terminal and plug-in connectors |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Mounting Style | Panel or rack mounting |
Functional Overview
This module distributes electrical power from a single input to multiple output branches. Consequently, it protects connected equipment through integrated fuse and breaker circuits. The PRK71 supports several fused output channels within one compact frame. Therefore, technicians simplify cabinet wiring and reduce installation errors.
Integration and Compatibility
The PRK71 mounts directly into standard control cabinets and racks. Additionally, it connects to compatible Yokogawa systems through backplane and terminal interfaces. This arrangement shortens wiring runs and improves maintenance access. Furthermore, the module maintains stable power delivery across extended operating periods.
Typical Applications
Manufacturers deploy this module in control cabinets, measurement racks, and distributed power systems. Moreover, it suits applications requiring organized and protected power routing. The PRK71 excels where dependable power distribution matters most.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
