Product Overview

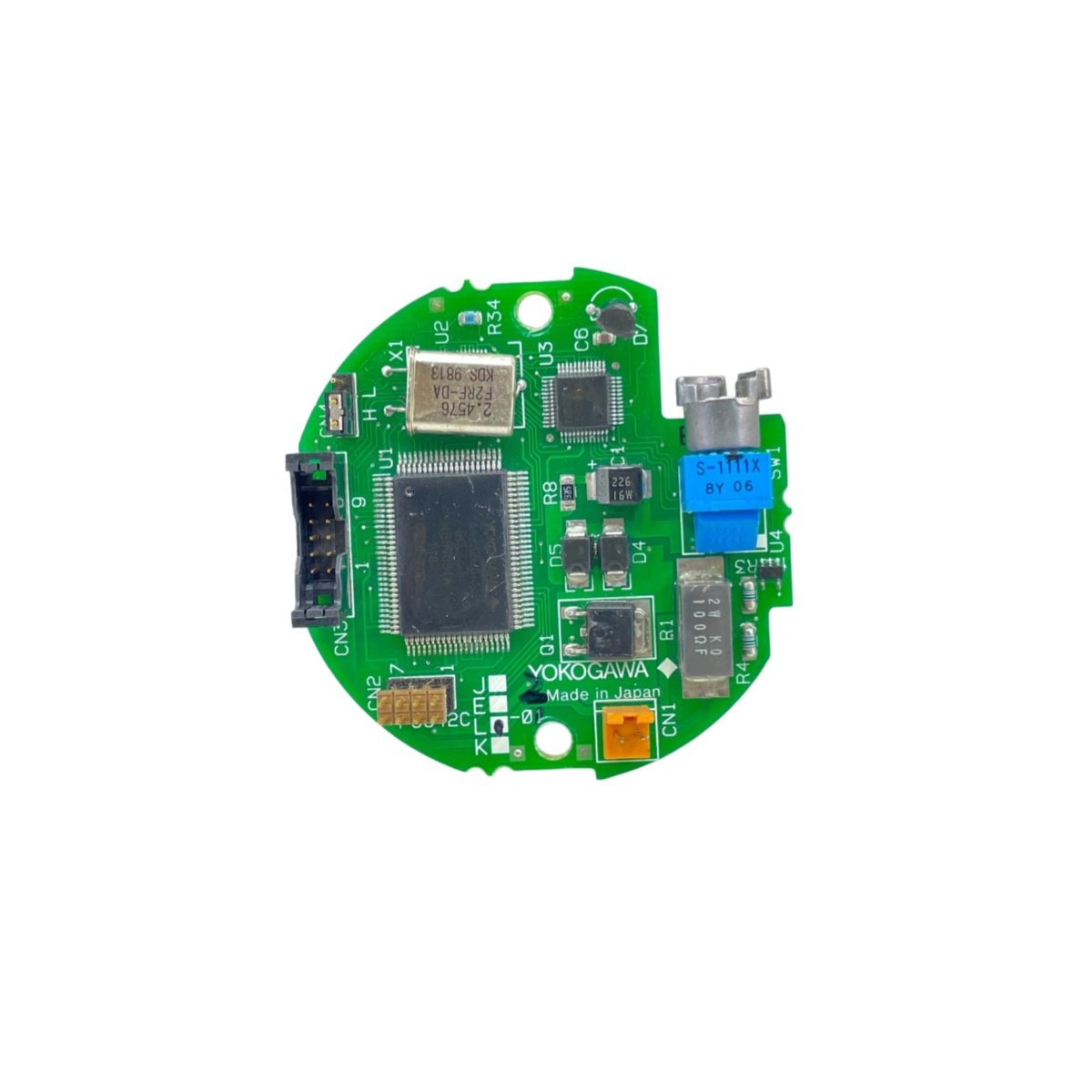

The Yokogawa F9342L-02 provides a local readout for the F9342 series pressure transmitters. This display module presents process variables and diagnostic information clearly. Field operators rely on this unit for immediate pressure verification without external tools. The module’s compact design mounts directly onto the transmitter electronics.
Technical Specifications
This display module features a high-contrast LCD for excellent visibility in bright sunlight. The Yokogawa F9342L-02 includes intuitive push buttons for local configuration and zero adjustment. Its low power consumption makes it suitable for loop-powered transmitter installations. The module’s segmented display shows numeric values and engineering units effectively.
| Parameter | Specification |
|---|---|
| Product Type | Display Module / Local Indicator |
| Series Compatibility | Yokogawa F9342 Series Transmitters |
| Display Type | Segmented LCD (reflective) |
| Display Format | 5-digit (numeric) plus unit annunciators |
| Digit Height | 9.5 mm |
| Update Rate | 500 ms |
| Available Units | Pa, kPa, MPa, bar, psi, mmH₂O, mmHg, torr, g/cm², kgf/cm² |
| User Interface | 3 push buttons (Zero, Span, Function) |
| Button Life | 100,000 actuations minimum |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +95°C |
| Power Supply | 3.5 V DC (from CPU board) |
| Current Consumption | < 800 µA (including button circuit) |
| Dimensions (W x H x D) | 45 mm x 30 mm x 12 mm |
| Weight | Approximately 0.03 kg |
| Connector Type | 8-pin flex cable to CPU assembly |
| Energy Storage | None (data refreshed from CPU) |
| Protection | Transparent cover (part of transmitter housing) |
| Humidity | 0 to 100% RH (non-condensing) |
Display Features
The Yokogawa F9342L-02 shows pressure values with up to five significant digits. Its segmented design includes dedicated annunciators for bar, psi, and other common units. The reflective LCD requires no backlight, reducing overall transmitter power consumption. The display updates reliably even at the minimum loop current of 4 mA.
Local Configuration
The push-button interface enables full transmitter configuration without a communicator. The Yokogawa F9342L-02 allows users to adjust zero and span values directly in the field. Technicians can navigate through configuration menus using simple button sequences. This local capability reduces commissioning time and eliminates handheld device dependency.
Integration and Mounting
This display module connects to the CPU board through a flexible ribbon cable. The Yokogawa F9342L-02 sits behind the transmitter’s cover window for environmental protection. Its low profile does not increase the overall transmitter dimensions. Field personnel can replace the display without recalibrating the instrument.
Application Scenarios
Maintenance teams use this display for quick process checks during routine rounds. It aids in troubleshooting and verifying transmitter output during startup. The Yokogawa F9342L-02 proves essential in locations where handheld communicators are unavailable.
Details
| Weight | 0.03 kg |
|---|---|
| Dimensions | 45 × 30 × 12 mm |
