Product Overview

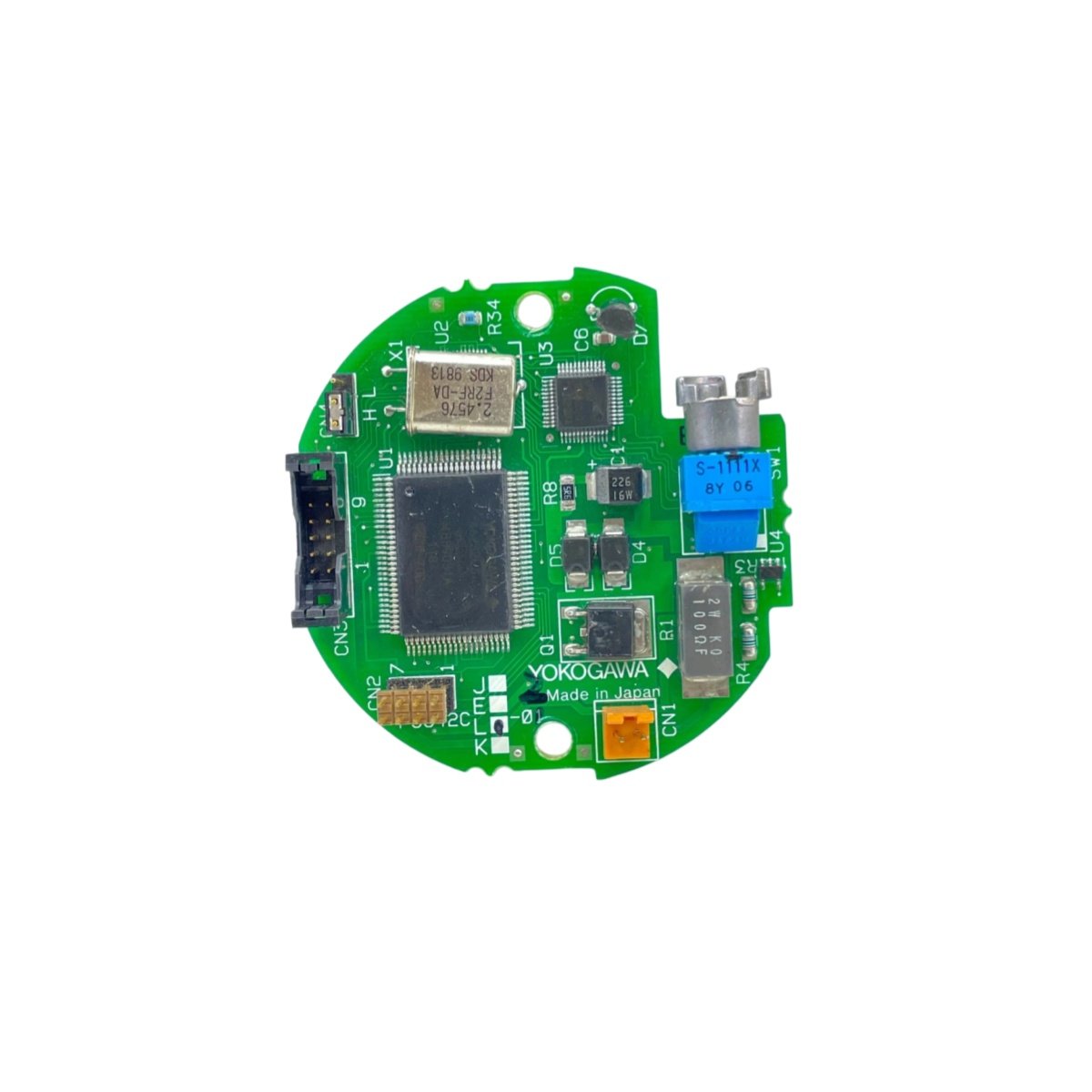

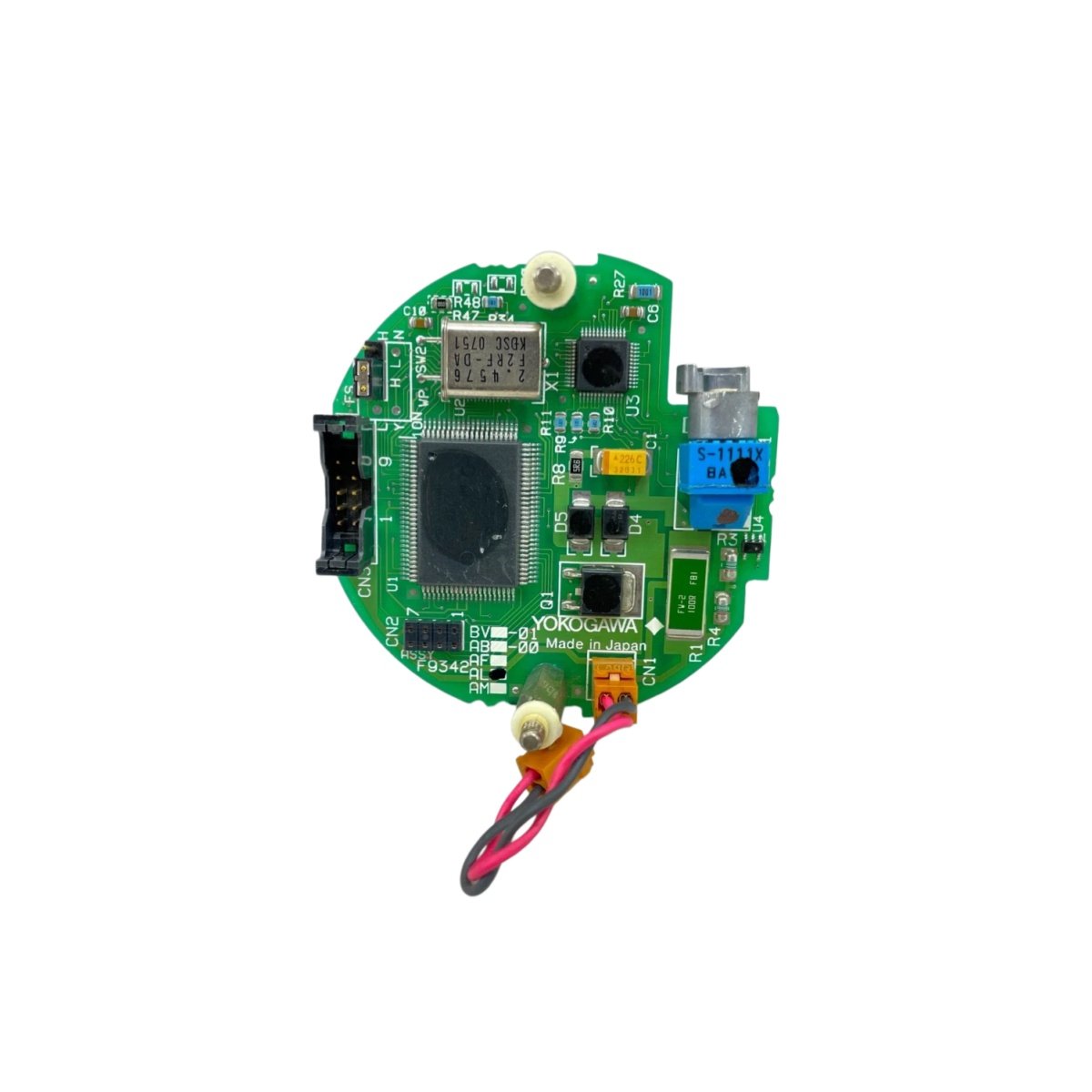

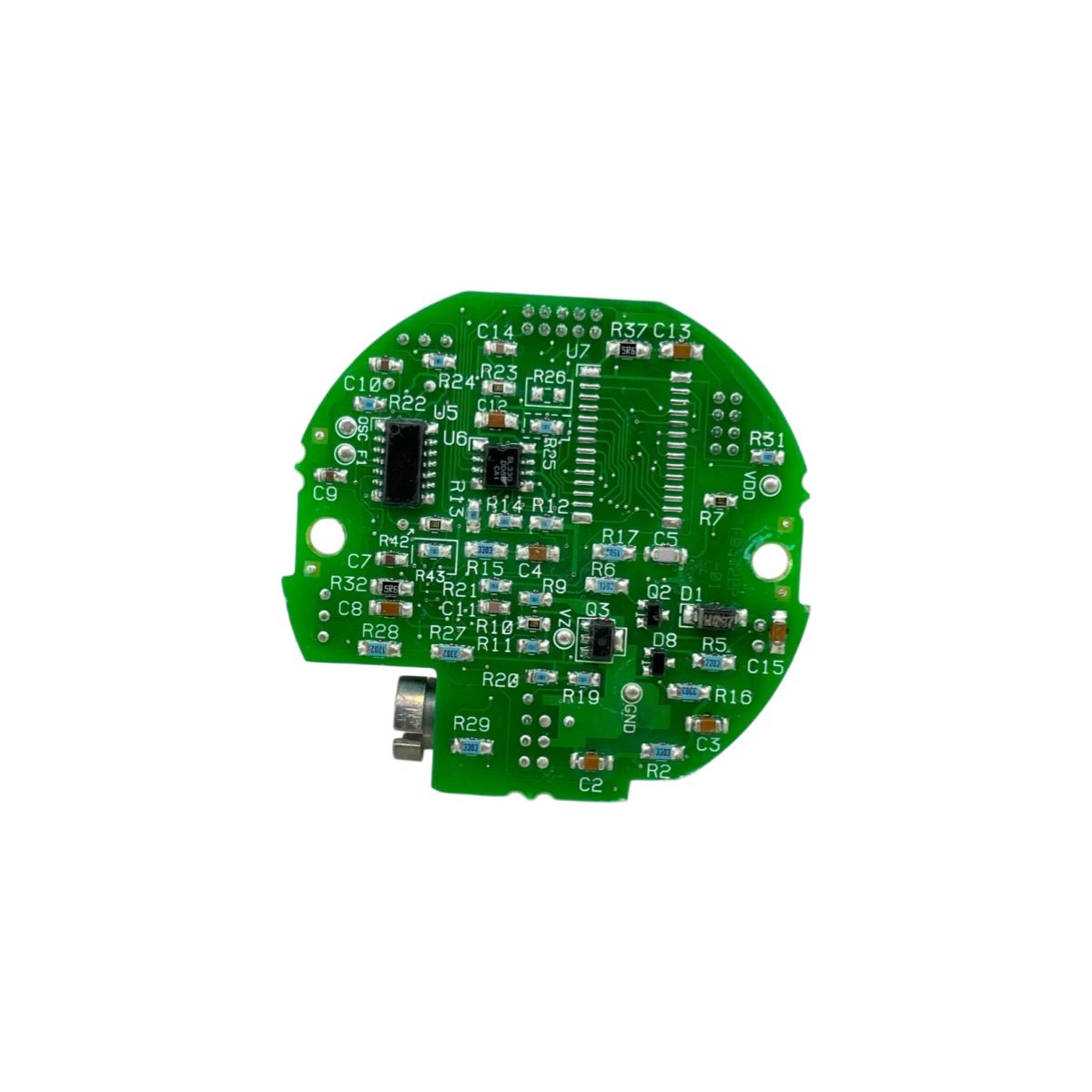

The Yokogawa F9342BG serves as the central processor board for the F9342 series differential pressure transmitters. This CPU assembly manages signal acquisition, digital communication, and diagnostic monitoring tasks effectively. Industrial processes depend on this module for reliable measurement data and stable control outputs. The board’s advanced firmware ensures accurate performance across fluctuating operating conditions.
Technical Specifications
This processor board integrates seamlessly into the F9342 transmitter electronics housing. The Yokogawa F9342BG features a high-speed microcontroller with hardware-accelerated arithmetic functions. Its multi-layered PCB design minimizes electrical noise and enhances signal integrity. The module includes dedicated interfaces for sensor input and communication bus connectivity.
| Parameter | Specification |
|---|---|
| Product Type | CPU Assembly / Processor Board |
| Series Compatibility | Yokogawa F9342 Series (DPharp transmitters) |
| Processor Architecture | 16-bit microcontroller with integrated peripherals |
| Resolution (A/D) | 24-bit delta-sigma converter |
| Sampling Rate | 20 Hz to 100 Hz (programmable) |
| Internal Memory | 64 KB flash for firmware; 8 KB EEPROM for configuration |
| Data Retention | 10 years without power (EEPROM) |
| Communication Protocol | BRAIN and HART support |
| Output Signal | 4-20 mA with superimposed digital |
| Diagnostic Functions | Self-monitoring, error logging, alarm reporting |
| Temperature Compensation | Integrated algorithms for sensor drift correction |
| Dimensions (W x H x D) | 40 mm x 65 mm x 30 mm |
| Weight | Approximately 0.10 kg |
| Power Supply | 12 to 42 V DC (loop-powered) |
| Current Consumption | 3.5 mA (minimum) to 21 mA (maximum) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +95°C |
Processing and Signal Handling
The Yokogawa F9342BG converts analog sensor signals into digital values with 24-bit resolution. Its onboard algorithms perform linearization and temperature compensation for accurate pressure readings. The processor handles both differential pressure and static pressure inputs simultaneously. This board delivers updated measurement values every 50 milliseconds for responsive control.
Communication and Configuration
This CPU assembly supports both BRAIN and HART protocols for versatile integration. The Yokogawa F9342BG enables remote configuration, calibration, and diagnostics through digital communication. Users can adjust damping values and output scaling parameters from a control room. The module also supports multi-drop connections for network-based installations.
Reliability and Diagnostics
The Yokogawa F9342BG includes continuous self-test routines to detect hardware or firmware anomalies. Its error logging function records fault events for subsequent analysis and troubleshooting. The module automatically reverts to safe values if critical sensor signals become invalid. This processor also monitors supply voltage and temperature for early warning.
Application Scenarios
Process engineers deploy this board in chemical reactors for flow and level measurement. It also suits oil pipelines, water treatment, and steam monitoring systems. The Yokogawa F9342BG provides dependable processing for critical pressure and level control loops.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 40 × 65 × 30 mm |
