Technical Overview

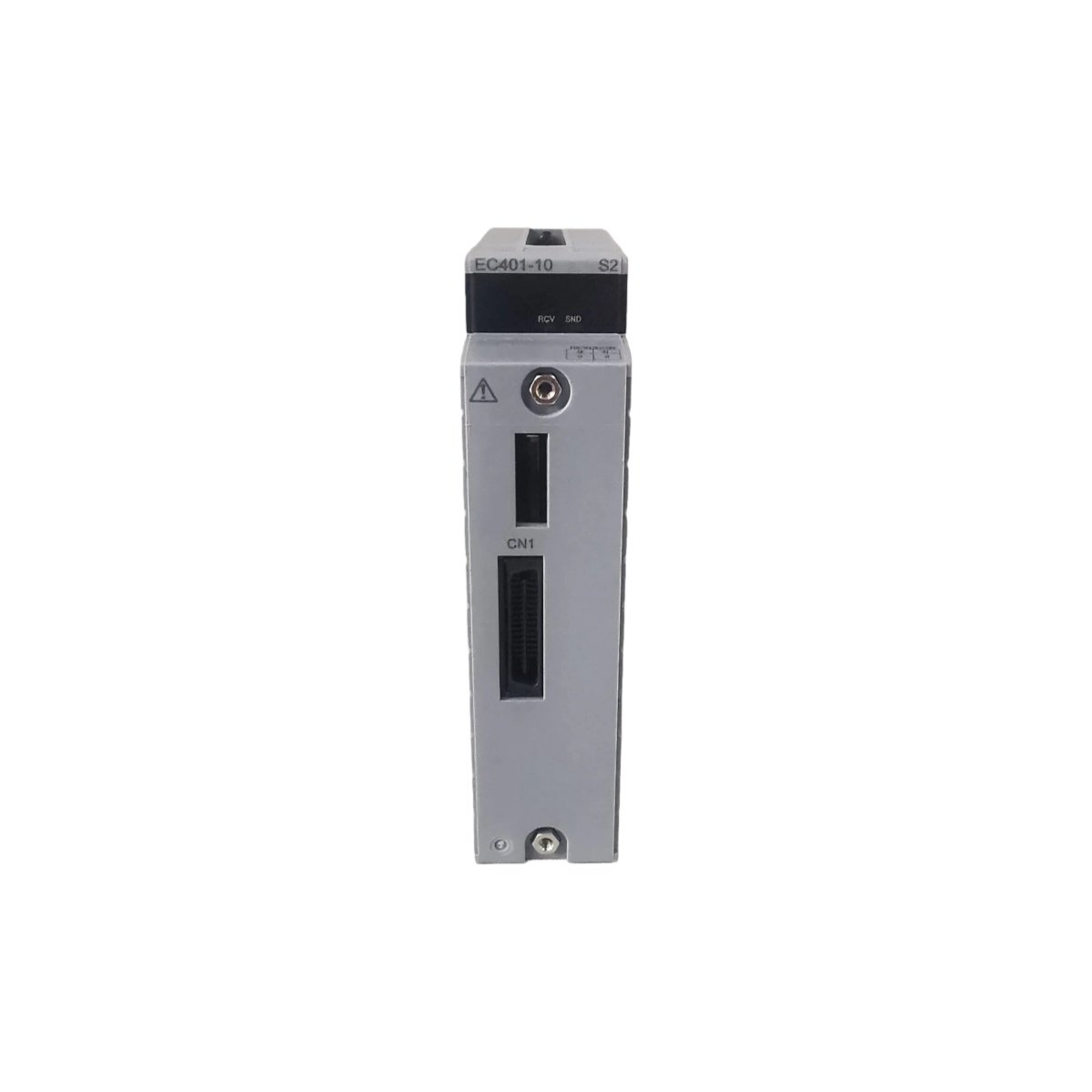

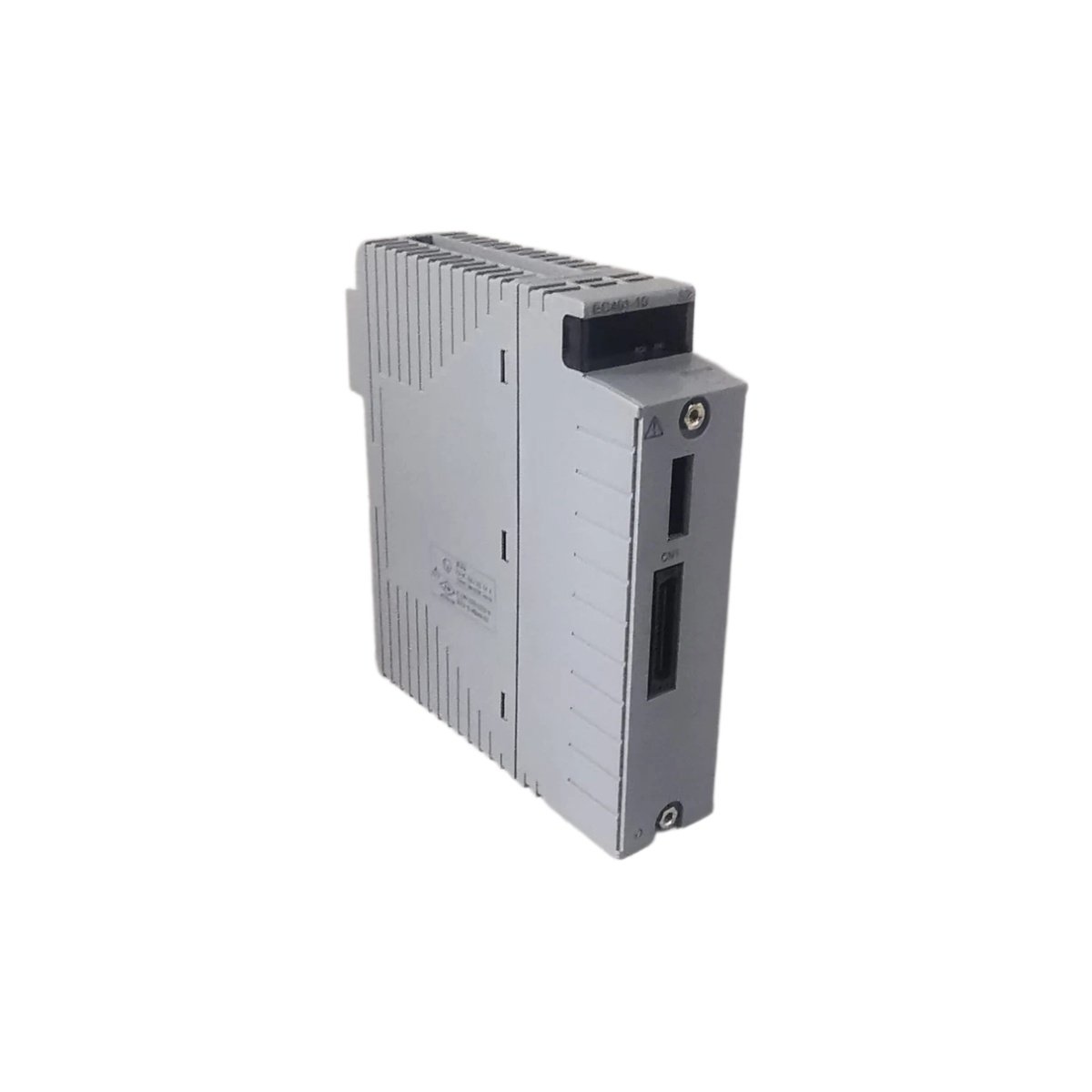

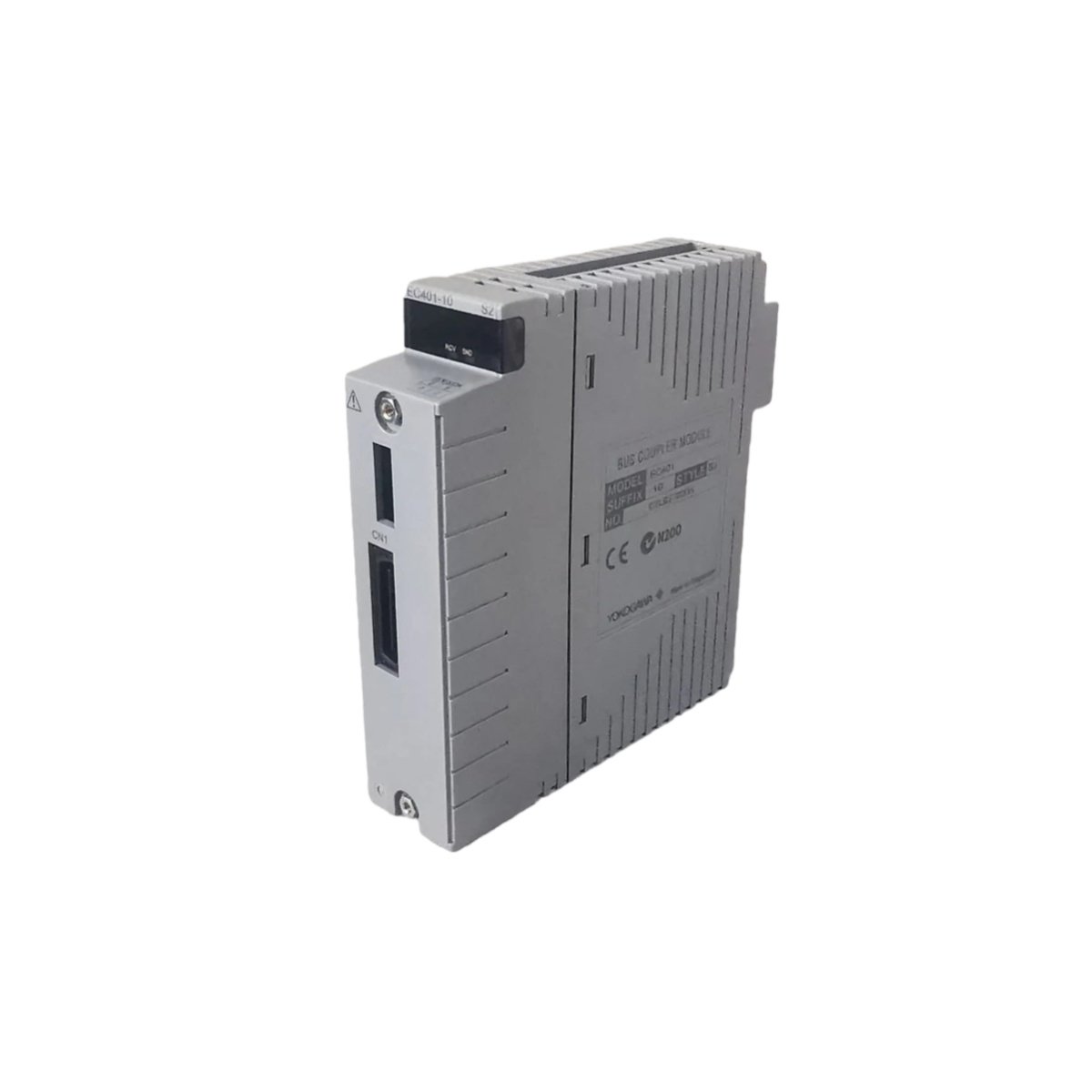

The EC401 functions as an ESB bus coupler module within Yokogawa CENTUM VP systems. This module bridges the ESB bus and the control network for seamless data exchange. Industrial plants depend on this coupler for high-speed, deterministic communication between field devices and controllers. The EC401 supports dual-redundant configurations to enhance system availability and fault tolerance.

Key Specifications

Bus Interface and Connectivity

The EC401 provides a dedicated ESB interface for connecting remote I/O nodes to the main controller. This coupler handles data frames at 10 Mbps, ensuring low-latency transmission for time-critical process signals. Operators configure the node address using the onboard rotary switches, which support settings from 0 to 15. The module also features two RJ45 connectors for daisy-chaining multiple nodes along the bus segment. Front-panel LEDs deliver real-time status feedback for power, communication activity, and node health.

Power and Electrical Characteristics

This bus coupler draws 150 mA from a 24 V DC nominal supply, with an acceptable range of 20 to 30 V DC. The EC401 incorporates 500 V AC isolation between the bus side and the internal logic circuitry. This isolation prevents ground loops and protects sensitive control electronics from electrical noise. The module’s efficient power design minimizes heat dissipation, which contributes to long service life.

Mechanical Design and Installation

The EC401 comes in a compact DIN-rail mountable enclosure measuring 130 mm × 50 mm × 115 mm. Its lightweight construction at 0.38 kg allows for easy installation in crowded cabinet spaces. The module operates reliably across a temperature range of 0°C to 50°C. Storage temperatures from -20°C to 70°C do not affect its performance or integrity. Humidity tolerance from 10% to 90% RH ensures consistent operation in varying environmental conditions.

Redundancy and System Integration

The EC401 supports dual-redundant coupler configurations for mission-critical applications. When two couplers operate in parallel, the system automatically switches to the backup unit upon failure detection. This redundancy mechanism ensures uninterrupted communication between the controller and remote I/O stations. The module integrates seamlessly with CENTUM VP and other Yokogawa DCS platforms. Process engineers can also use the EC401 with ProSafe-RS safety systems for integrated control and safety solutions.

Practical Applications

The EC401 suits a wide range of process industries, including oil refining, chemical production, and power generation. This coupler excels in applications requiring distributed I/O architectures with high reliability. Its deterministic bus protocol makes it ideal for time-sensitive control loops and interlock sequences. The module reduces wiring complexity by enabling multiple I/O nodes to share a single bus cable. Consequently, plant operators can achieve significant savings in installation materials and engineering hours.

Maintenance and Operational Guidance

Mount the EC401 securely on a standard DIN rail inside the control cabinet. Connect the ESB cables to the RJ45 ports, ensuring proper termination at both ends. Set the rotary address switches before powering up the module to avoid configuration conflicts. Monitor the LED indicators periodically to verify normal communication and power status. The module requires no scheduled calibration, which reduces routine maintenance efforts. For detailed troubleshooting, consult the product manual’s diagnostic section.
