Product Overview

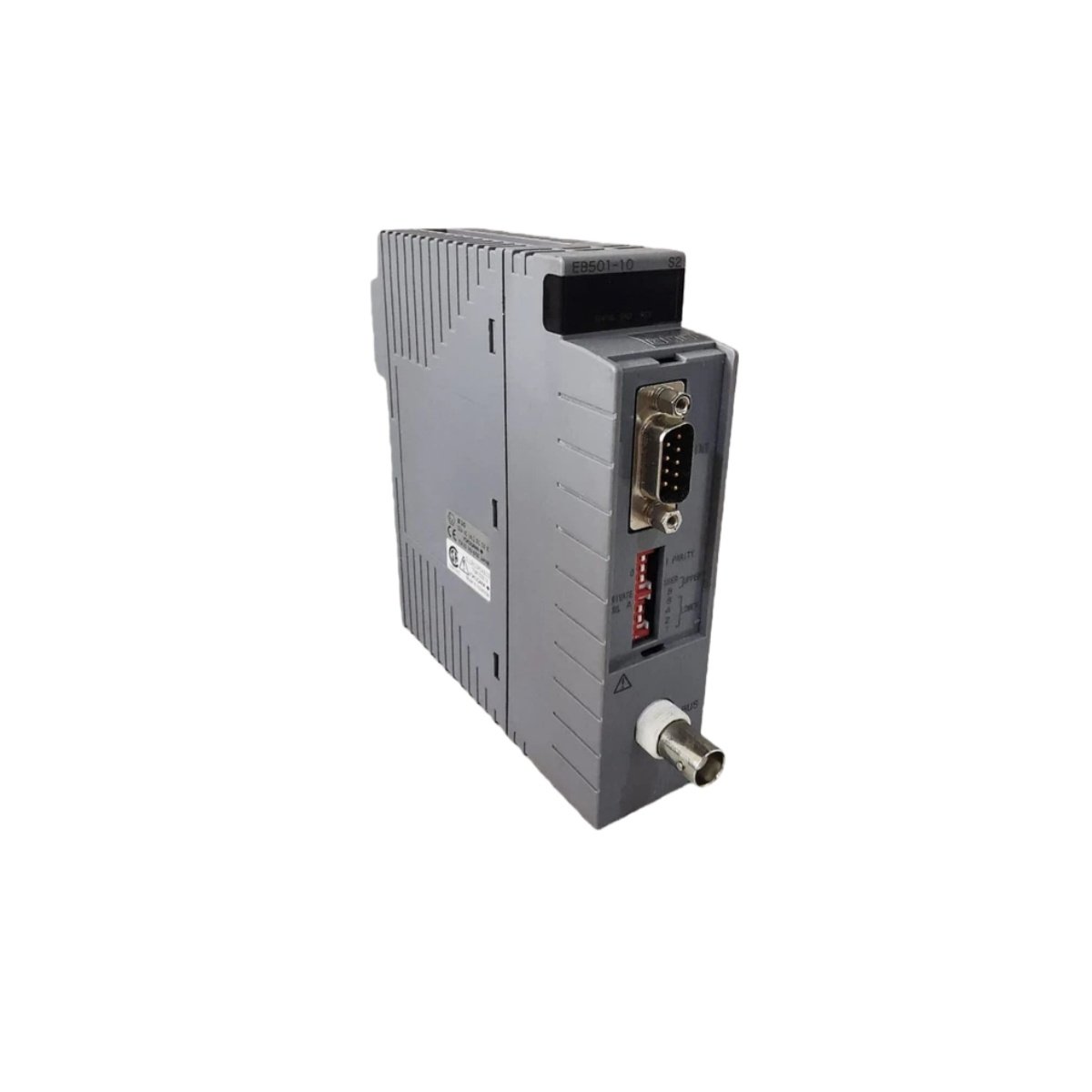

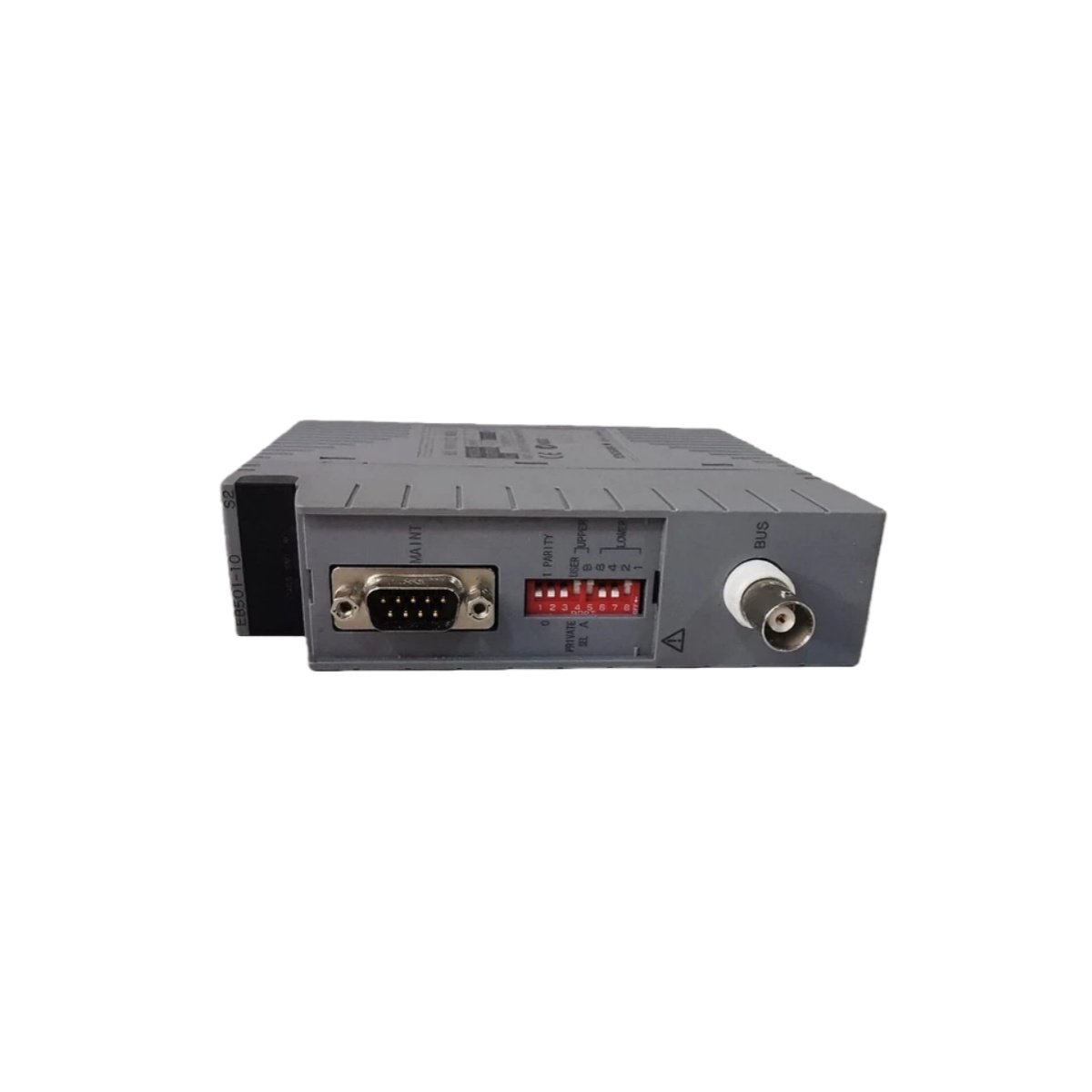

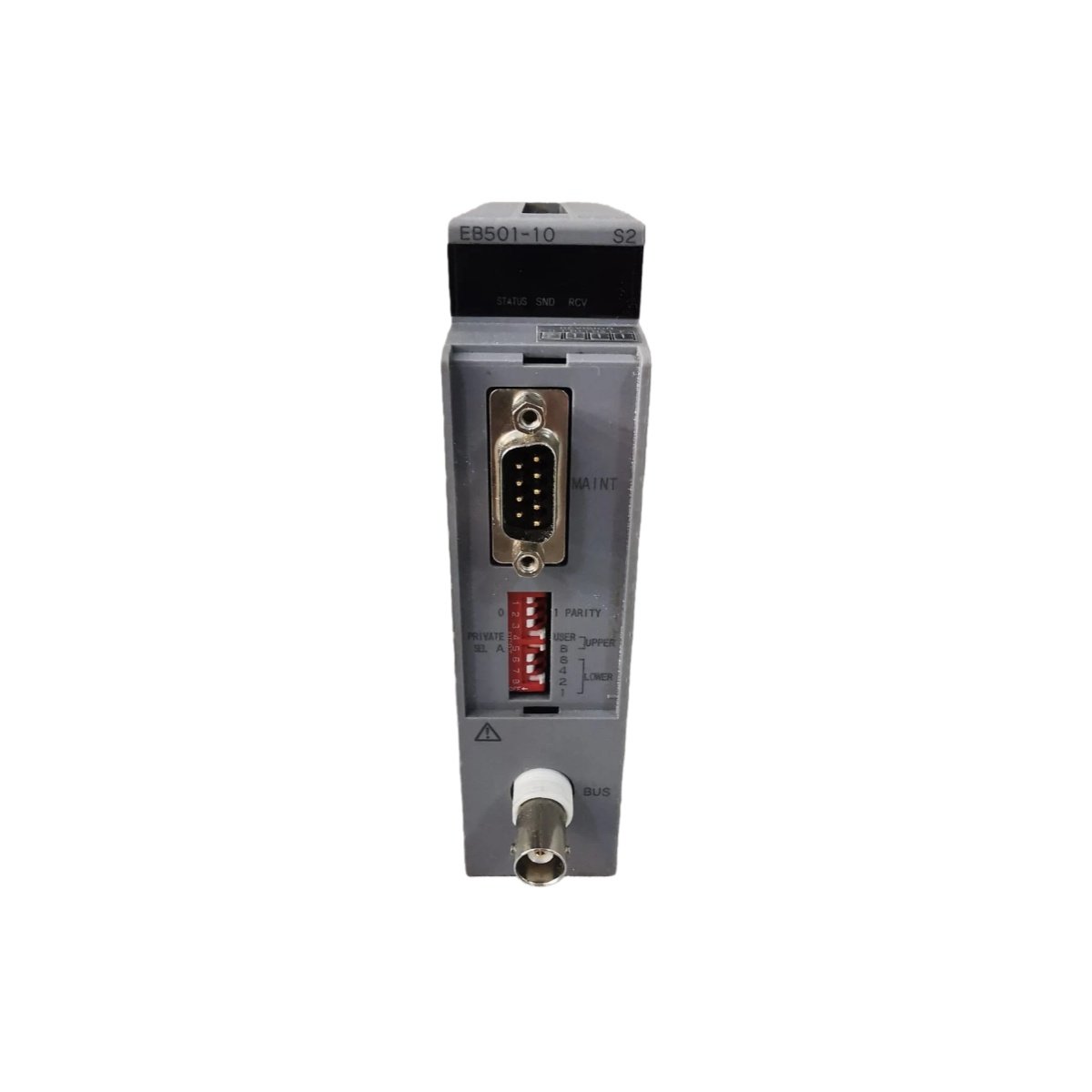

The Yokogawa EB501 communication module delivers reliable data transfer for distributed control systems. This fieldbus interface component supports Foundation Fieldbus H1 protocol for seamless integration. Industrial facilities rely on this module for stable process automation communication.

Technical Specifications

Communication and Connectivity

The EB501 interfaces directly with Yokogawa CENTUM VP and CS 3000 systems. Its integrated termination switch simplifies network configuration and reduces setup time. The module supports up to 32 connected devices per fieldbus segment. Operators can monitor real-time communication status through front-panel LED indicators. These indicators display power, communication activity, and error states clearly. The module provides electrical isolation of 500 V AC between field and logic circuitry. This isolation protects the control system from potential ground loops and surge events.

Mechanical Design and Installation

This communication module comes in a compact housing measuring 130 mm × 50 mm × 120 mm. The lightweight construction at 0.45 kg simplifies mounting within standard DIN rail enclosures. Its robust design operates reliably across temperatures from -10°C to +55°C. The module also withstands storage conditions from -40°C to +85°C without performance degradation. Non-condensing humidity tolerance from 10% to 90% RH ensures dependable operation in various plant environments.

Power and Energy Characteristics

The EB501 accepts a nominal 24 V DC supply with a wide operating range of 18 to 32 V DC. Typical current consumption remains at a modest 30 mA, which minimizes energy demands. This low power draw reduces heat generation and enhances long-term reliability. The module’s efficient power design contributes to overall system energy savings.

Application and Compatibility

Process industries benefit significantly from this module’s robust communication capabilities. The EB501 suits applications in oil and gas, chemical, pharmaceutical, and power generation sectors. Its Foundation Fieldbus H1 compatibility ensures interoperability with a wide range of field instruments. The module supports both analog and discrete I/O devices through the same bus segment. This flexibility reduces wiring complexity and installation costs considerably.

Installation and Maintenance

Mount the EB501 on a standard DIN rail within the control cabinet. Connect the fieldbus cable to the terminal block following the pin assignment diagram. Set the integrated termination switch to ON only when the module sits at the segment end. Regular inspection of LED indicators helps identify communication issues promptly. The module requires no periodic calibration, which minimizes maintenance overhead. Refer to the product manual for detailed wiring and configuration guidelines.
