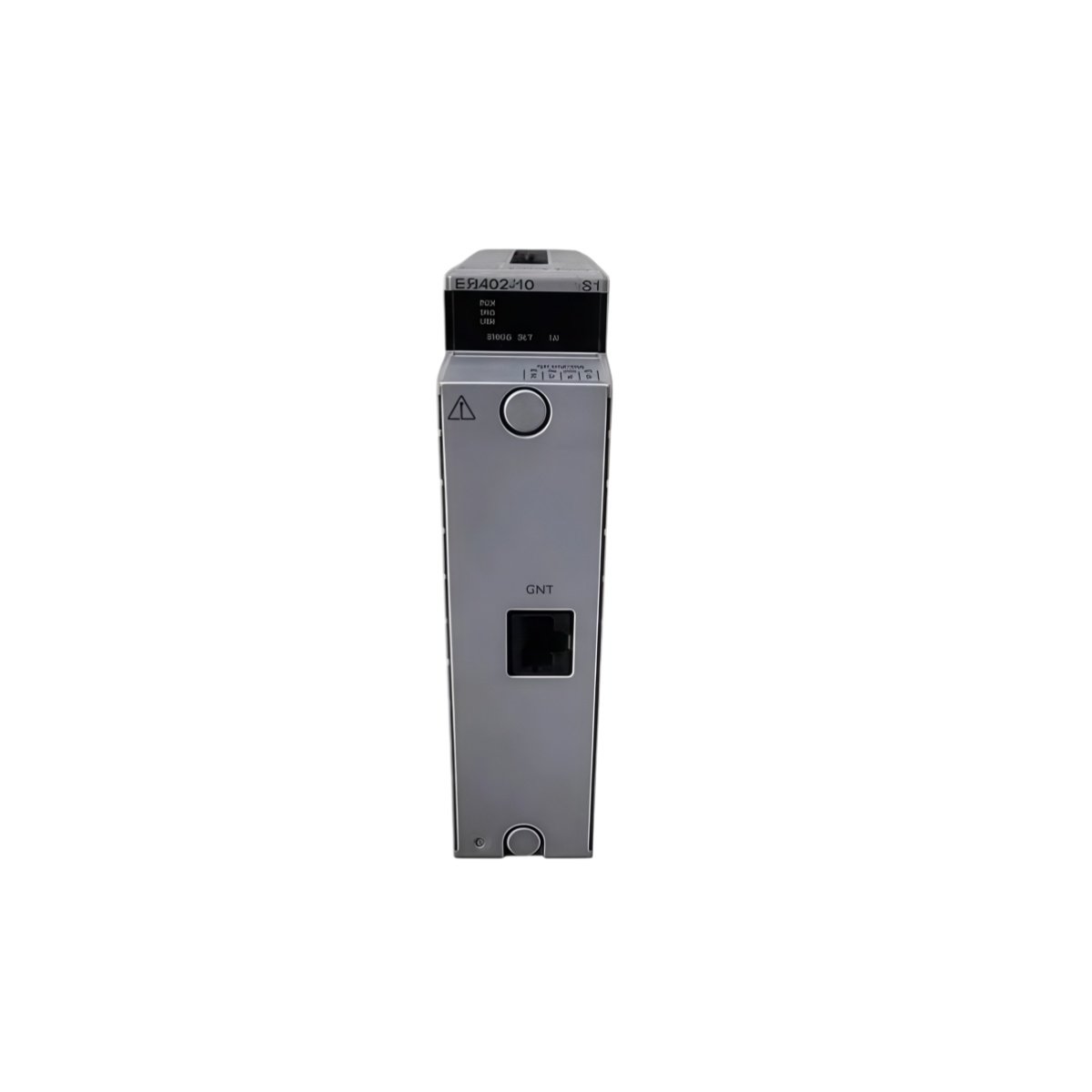

Overview of the Yokogawa EB402-10 ESB Bus Coupler Module

The EB402-10 functions as an ESB bus coupler module within Yokogawa’s distributed control architecture. This unit connects remote I/O nodes to the ESB network for continuous data exchange. Engineers deploy it in process plants that demand stable, high-speed communication links.

Key Technical Specifications of the EB402-10

The EB402-10 combines a rugged housing with dedicated ESB bus connectors. Below you will find the core parameters that define this module’s performance envelope.

Physical Design and Interface Details

The EB402-10 adopts a compact footprint that fits standard Yokogawa I/O racks. Its dimensions measure 130 mm in length, 100 mm in width, and 25 mm in depth. Moreover, the module weighs roughly 270 grams, which simplifies rack installation and field replacement. Two ESB ports extend network reach across distributed I/O cabinets.

Performance and Communication Capabilities

This module sustains a data transfer rate of 10 Mbps across ESB network links. Bus-to-logic isolation shields internal circuitry from electrical noise, therefore protecting sensitive components. Additionally, the second port extends coverage to remote I/O nodes without extra hardware. Consequently, the unit suits high-availability process control architectures.

Power and Environmental Considerations

The EB402-10 operates on a 24 V DC nominal power supply. Power consumption remains approximately 4 W during normal operation. The operating temperature range spans 0°C to 55°C for industrial environments. Storage temperature extends from -20°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
