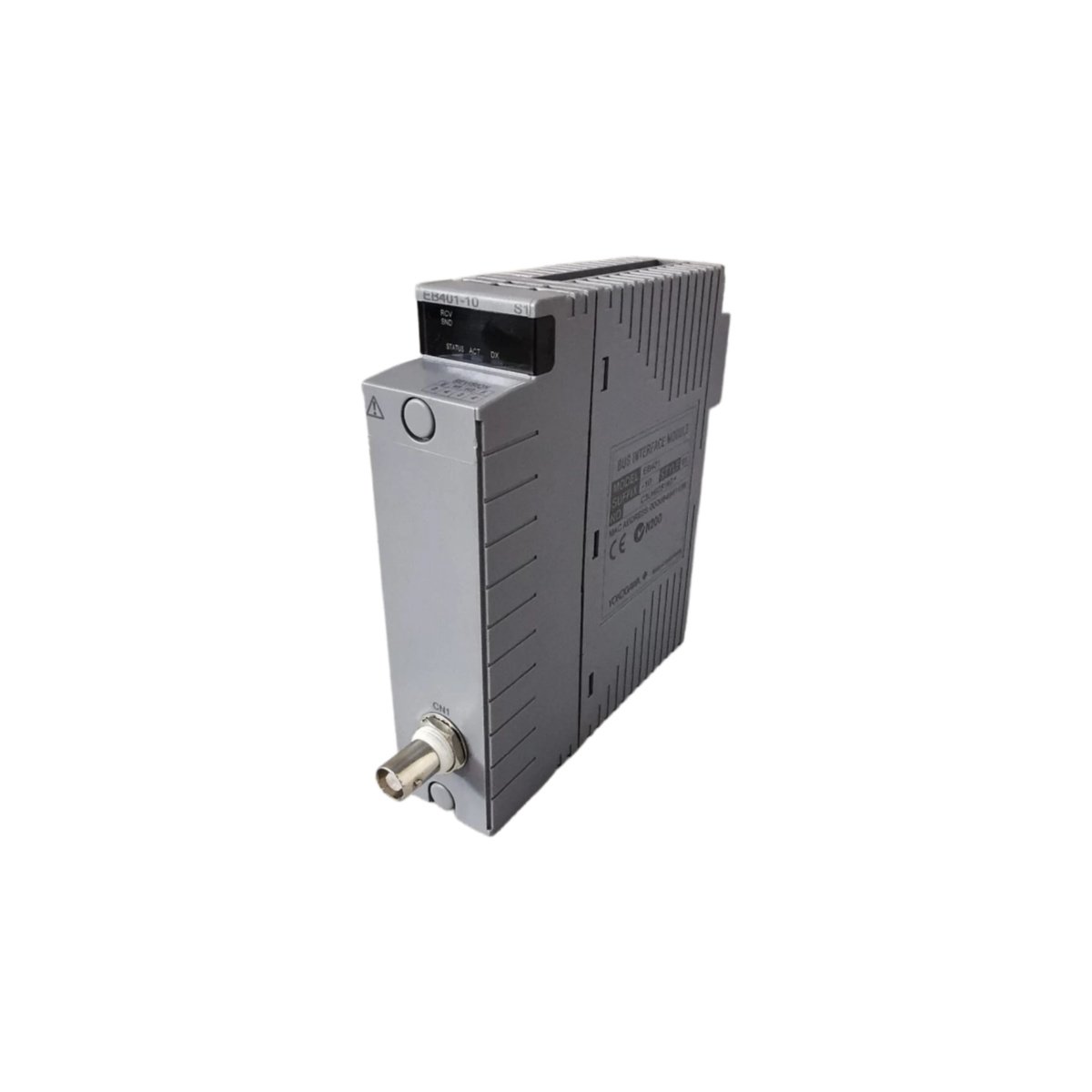

The EB401-10 functions as an ER bus interface master module within Yokogawa industrial control systems. This unit manages communication between the host controller and remote I/O stations. Consequently, engineers gain a dependable network link for distributed process control.

Technical Specifications Overview

The EB401-10 combines a compact module body with rugged industrial construction. Moreover, its parameter set helps engineers plan network topology and cable routing accurately.

Interface and Network Communication Details

The EB401-10 links remote stations through a dedicated ER bus port. Therefore, it exchanges process data quickly with distributed I/O modules. The master port manages polling and error detection across the network segment. In addition, the module draws 24 V DC directly from the rack power rail.

Physical Characteristics and Installation

This module measures roughly 130 mm wide and 100 mm high. Furthermore, its 45 mm depth suits compact cabinet layouts. The EB401-10 weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the EB401-10 for remote I/O coordination and distributed control tasks. Meanwhile, front-panel LEDs show live bus status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for power.
