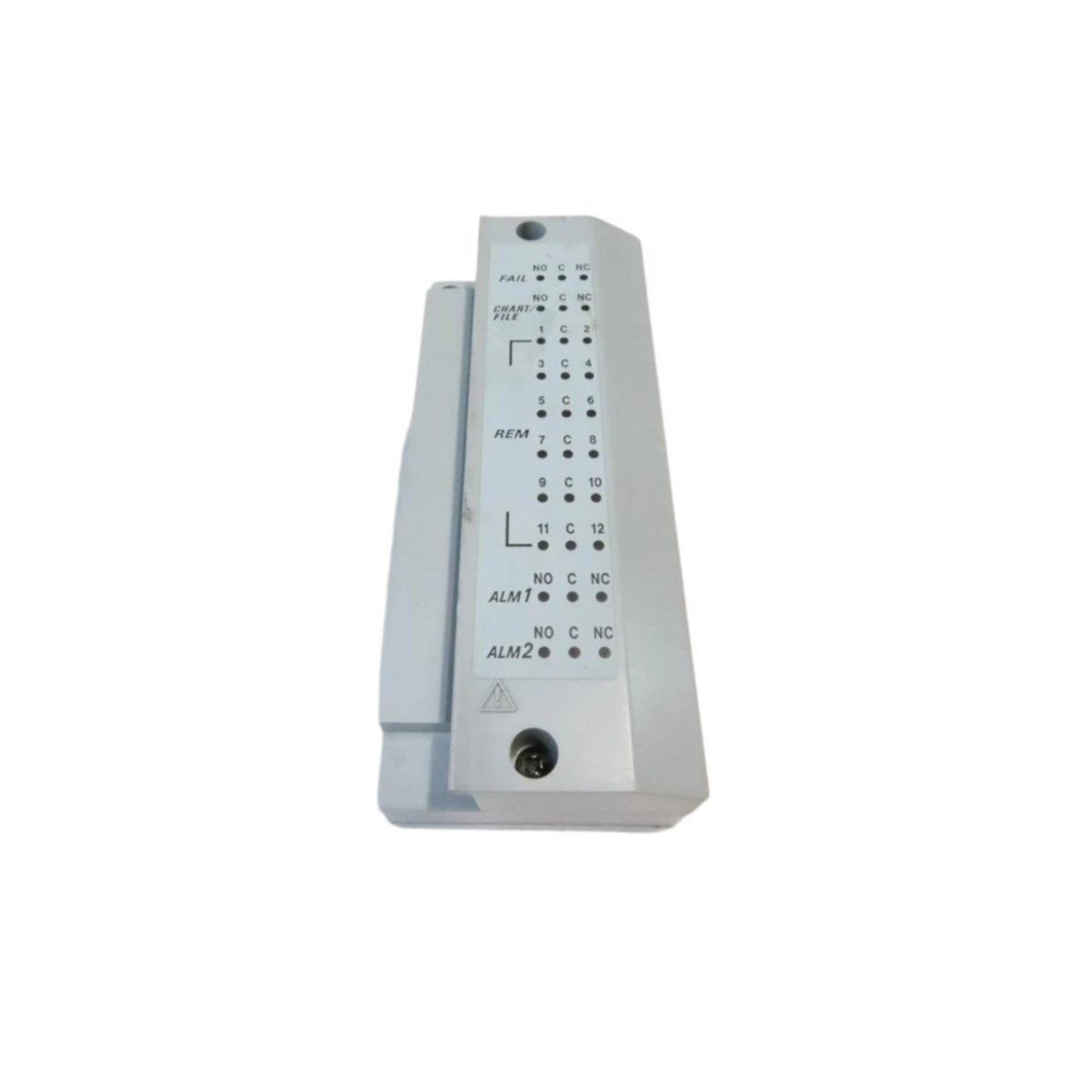

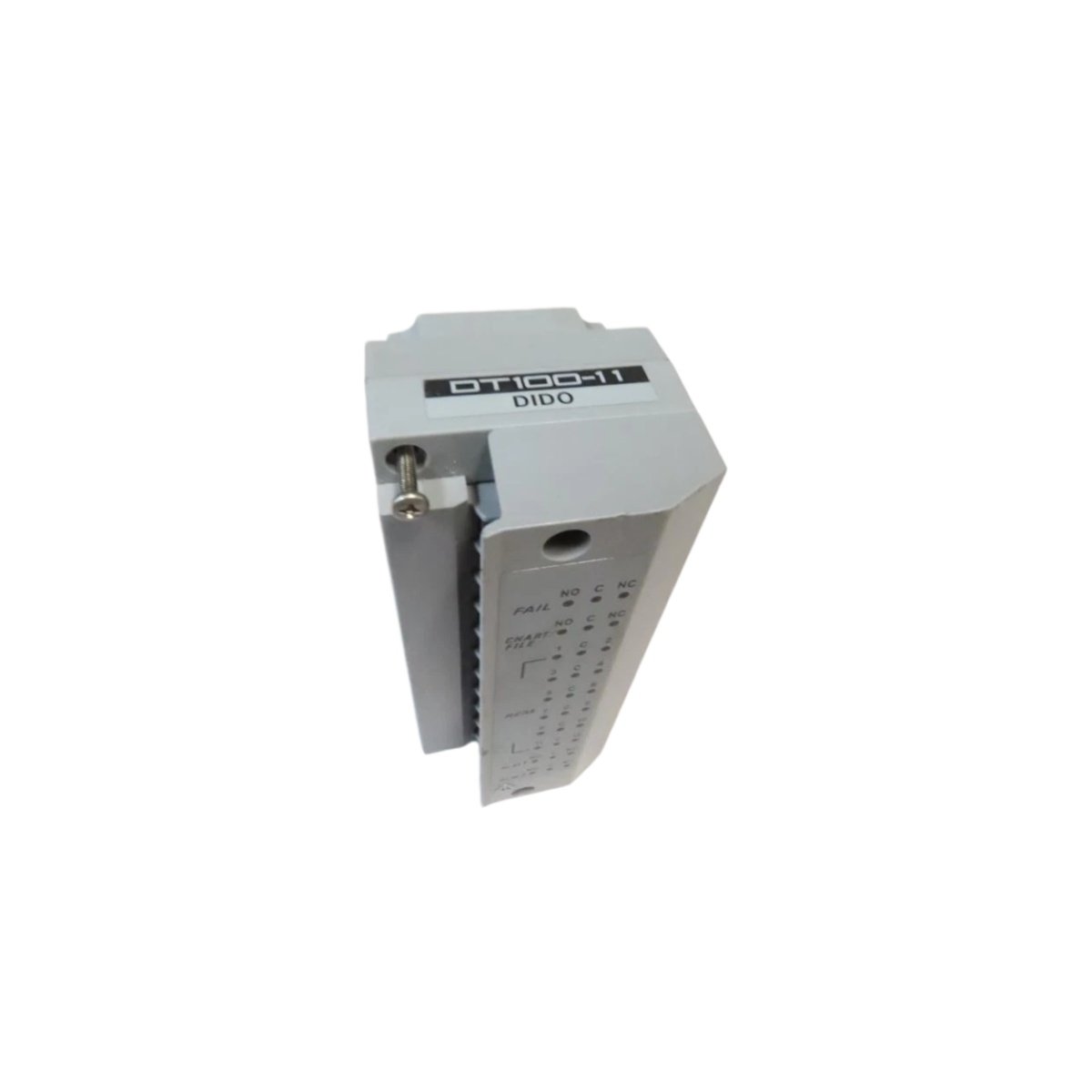

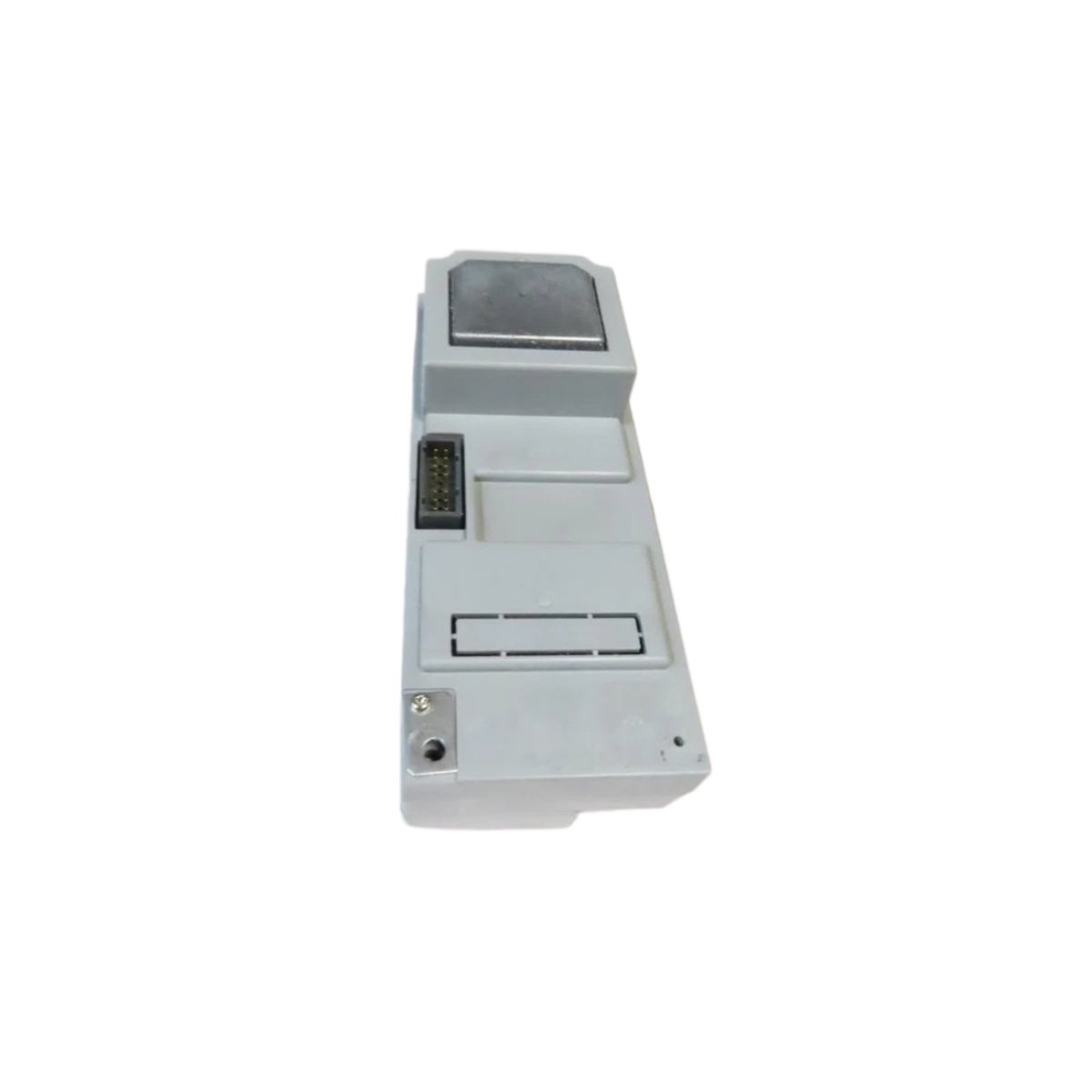

The DT100-11 serves as a universal input module within Yokogawa industrial measurement systems. This unit accepts multiple sensor signals and converts them into reliable digital data. Engineers value its flexible input handling and consistent accuracy in process environments.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Universal Input Module |
| Compatibility | Yokogawa Control and Measurement Systems |
| Module Width | Compact single-width housing |
| Weight | Approximately 0.4 kg |
| Interface Type | System backplane connection |
| Input Types | Thermocouple, RTD, voltage, and current signals |
| Input Channels | Multiple configurable measurement points |
| Resolution | High-precision analog-to-digital conversion |
| Isolation | Channel-to-system signal isolation |
| Power Supply | Standard industrial DC supply |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Mounting Style | Panel or rack mounting |
Functional Overview
This module accepts thermocouple, RTD, voltage, and current signals on one platform. Consequently, technicians standardize measurement across different sensor types. The DT100-11 delivers high-resolution conversion with channel-to-system isolation. Therefore, plant operators capture accurate readings without signal interference.
Integration and Compatibility
The DT100-11 connects directly to compatible Yokogawa control and measurement systems. Additionally, it exchanges data through the system backplane connection. This arrangement reduces wiring complexity and simplifies cabinet assembly. Furthermore, the module maintains stable measurement accuracy across varying ambient conditions.
Typical Applications
Manufacturers deploy this input module in process monitoring, temperature control, and data acquisition systems. Moreover, it suits applications requiring flexible sensor compatibility. The DT100-11 excels where precise multi-signal measurement matters most.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
