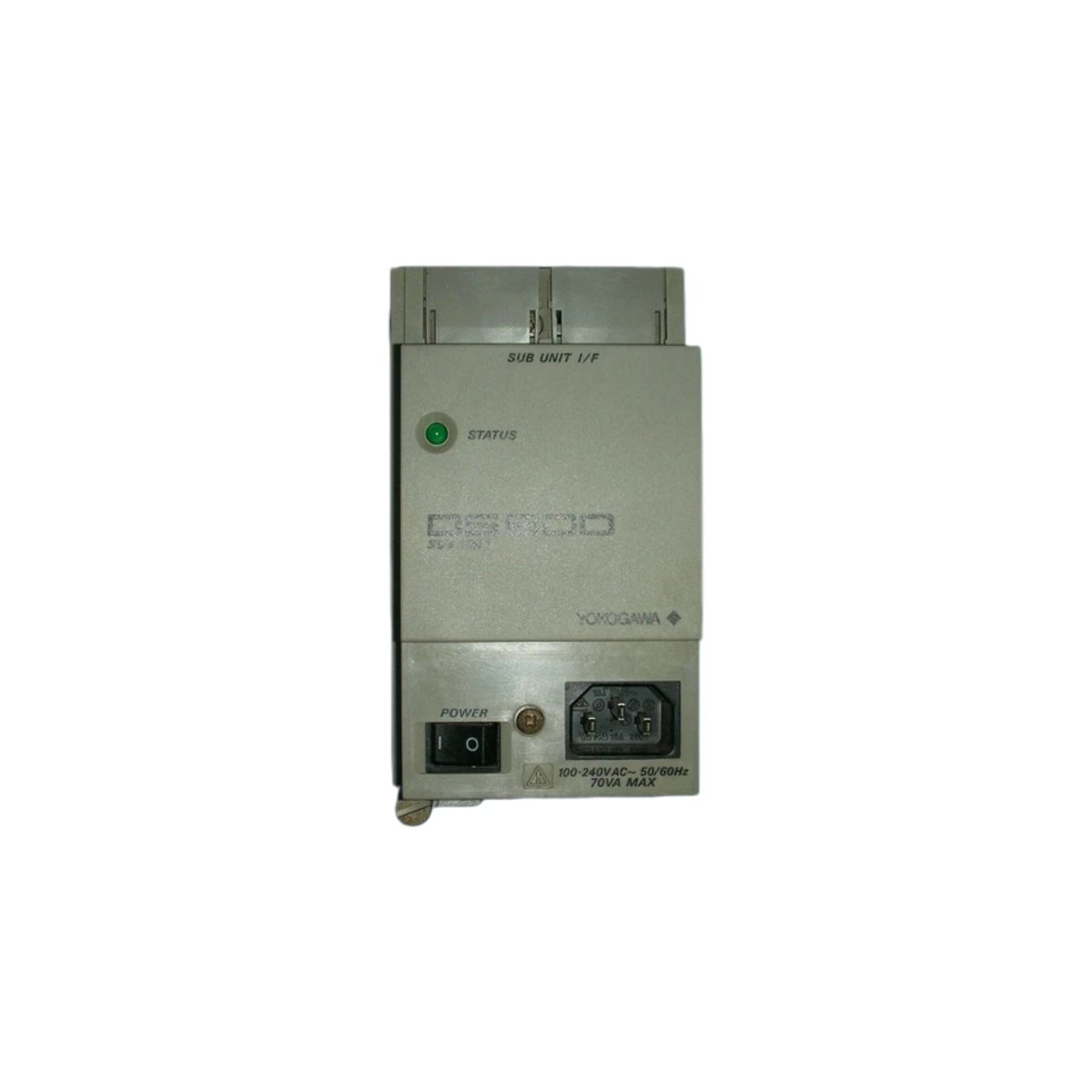

The DS600-00-1M functions as a data acquisition sub unit within Yokogawa industrial monitoring systems. This module collects analog and digital signals from field sensors and transmitters. Consequently, engineers gain accurate measurement data for process analysis and reporting.

Technical Specifications Overview

The DS600-00-1M combines a compact chassis with rugged industrial construction. Moreover, its parameter set helps engineers plan channel counts and wiring routes accurately.

Interface and Signal Connection Details

The DS600-00-1M connects field wiring through screw terminals on the front panel. Therefore, technicians achieve secure contact with standard instrument cables. The unit accepts voltage, current, and contact closure signals from various sensors. In addition, it draws 24 V DC directly from the host system.

Physical Characteristics and Installation

This sub unit measures roughly 200 mm wide and 150 mm high. Furthermore, its 80 mm depth suits compact panel enclosures. The DS600-00-1M weighs about 0.8 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the mounting brackets, then secure the chassis with retaining screws.

Operational Role and Maintenance

Engineers apply the DS600-00-1M for temperature logging, pressure trending, and event recording tasks. Meanwhile, front-panel indicators show live channel status during troubleshooting. The unit holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the host system for power.
