System Control and Processing Role

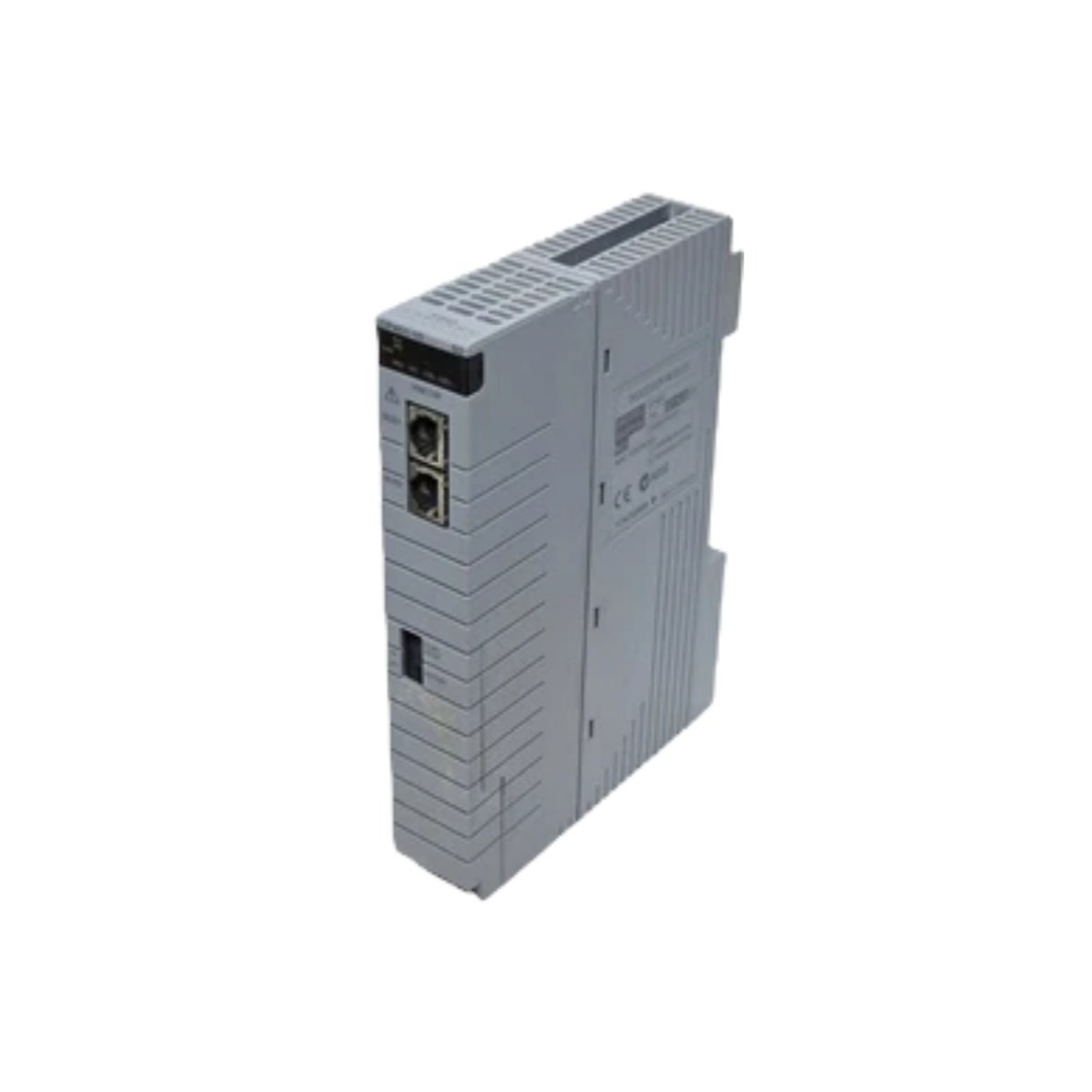

This processor module serves as the primary computing engine for Yokogawa Centum DCS systems. It executes regulatory control, sequential logic, and data acquisition with exceptional reliability. You can deploy this unit in large-scale continuous process environments like refineries and chemical plants. The CPU handles hundreds of control loops simultaneously without performance degradation. It coordinates all I/O subsystems and communication network activities seamlessly. This processing power ensures stable operation in mission-critical production facilities.

Physical Dimensions and Chassis Mounting

The Yokogawa CP451-10 measures 250.0 mm in height and 48.0 mm in width. Its depth reaches 190.0 mm from the front face to the rear connector. This unit weighs approximately 1.80 kg, requiring careful handling during installation. You can slide this module into any standard Centum backplane slot. Two ejector handles with locking tabs secure the unit firmly in place. The robust steel housing provides excellent mechanical protection and EMI shielding.

Processor Architecture and Computational Performance

This module features a 32-bit RISC processor running at 120 MHz core frequency. It executes complex control algorithms with a scan time of 3 milliseconds per 1,000 steps. The Yokogawa CP451-10 supports advanced PID tuning and feedforward control strategies. It processes both ladder logic and high-level structured text programs efficiently. The CPU includes an independent monitoring timer for automatic fault detection. This performance meets the demands of high-speed batch and continuous control applications.

Memory Configuration and Data Storage

The module provides 8 MB of flash memory for firmware and application program retention. It also includes 4 MB of battery-backed SRAM for process data and event logs. The Yokogawa CP451-10 offers 256 KB of EEPROM for system configuration parameters. You can allocate the SRAM into historical trend archives and alarm buffers. The flash memory supports online firmware upgrades without process interruption. The battery preserves all critical data during power supply failures.

Communication Interfaces and Network Integration

This processor includes two isolated RS-485 ports for remote I/O communication. It also features one 10/100Base-T Ethernet port with auto-negotiation capability. The Yokogawa CP451-10 provides a dedicated RS-232 port for programming and diagnostics. You can connect operator stations through the Ethernet network interface. The module supports Modbus RTU and Modbus TCP communication protocols. These interfaces enable seamless integration with third-party devices and systems.

Internal Circuitry and Component Composition

The main logic board contains a high-performance memory controller and DMA engine. You will discover precision voltage regulators for stable internal power distribution. The Yokogawa CP451-10 uses a temperature-compensated crystal oscillator with ±25 ppm accuracy. A dedicated ASIC handles I/O bus arbitration and data routing functions. The PCB contains over 220 discrete components including surface-mount ICs and passive devices. This design emphasizes long-term reliability for continuous operation environments.

Power Requirements and Energy Backup Systems

This processor draws 680 mA from the 5 VDC backplane supply during normal operation. It also consumes 180 mA from the 24 VDC field power input. An internal 3.6 V lithium battery provides backup for SRAM and real-time clock functions. This battery maintains data integrity for over 6 years under typical conditions. The module also incorporates a 1.0 F supercapacitor for temporary power-loss protection. This supercapacitor sustains memory contents for 100 hours during battery replacement.

Environmental Specifications and Regulatory Compliance

The Yokogawa CP451-10 operates effectively between 0°C and 65°C ambient temperature. It withstands humidity levels from 10% to 95% without condensation issues. The enclosure meets IP20 protection standards for indoor control room use. Vibration endurance reaches 2 G from 10 Hz to 150 Hz on each axis. Shock resistance measures 20 G for 11 milliseconds half-sine pulses. These specifications support installations in power generation and petrochemical facilities.

Technical Data Summary

Diagnostic Features and User Interface Elements

This module includes a front-panel LCD display for comprehensive system status information. Five pushbuttons allow you to navigate diagnostic menus and view error logs. The display shows CPU load, memory utilization, and network traffic statistics. Four LED indicators provide power, run, fault, and communication status at a glance. The module also supports remote diagnostics through the Ethernet interface.

Details
