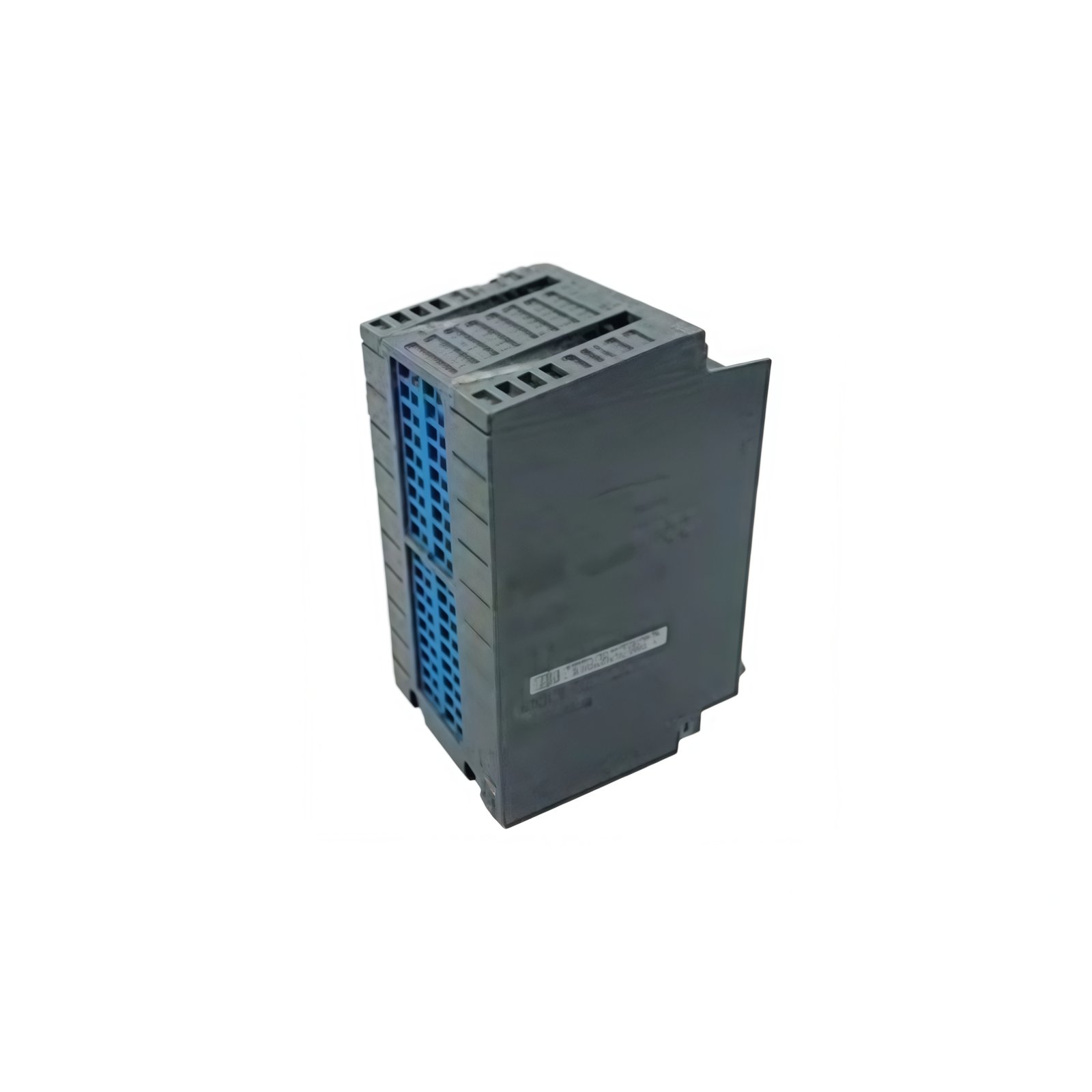

The ATSR3S-0 serves as a pressure clamp terminal block within Yokogawa industrial instrumentation systems. This component secures field wiring to transmitters, controllers, and signal conditioning modules. Consequently, technicians gain reliable electrical connections without soldering work.

Technical Specifications Overview

The ATSR3S-0 combines a compact terminal body with corrosion-resistant contact materials. Moreover, its parameter set helps engineers plan wire gauges and panel spacing accurately.

Interface and Connection Details

The ATSR3S-0 connects wires through a pressure clamp mechanism. Therefore, technicians achieve secure contact without crimping tools or solder. The clamp accepts standard industrial wire gauges with consistent holding force. In addition, the terminal needs no external power to function.

Physical Characteristics and Installation

This terminal block measures roughly 45 mm wide and 10 mm high. Furthermore, its 35 mm depth fits shallow junction boxes. The ATSR3S-0 weighs about 0.05 kg. Consequently, it adds negligible load to DIN rail assemblies. Installation follows standard rail mounting practices, then the clamp screw secures each wire.

Operational Role and Maintenance

Engineers apply the ATSR3S-0 for signal wiring in pressure transmitters and control loops. Meanwhile, the corrosion-resistant contacts maintain stable resistance over long service periods. The block stores no energy and holds no battery or capacitor. Thus, it avoids periodic replacement tasks beyond routine torque checks.
