Technical Specifications and Hardware Overview

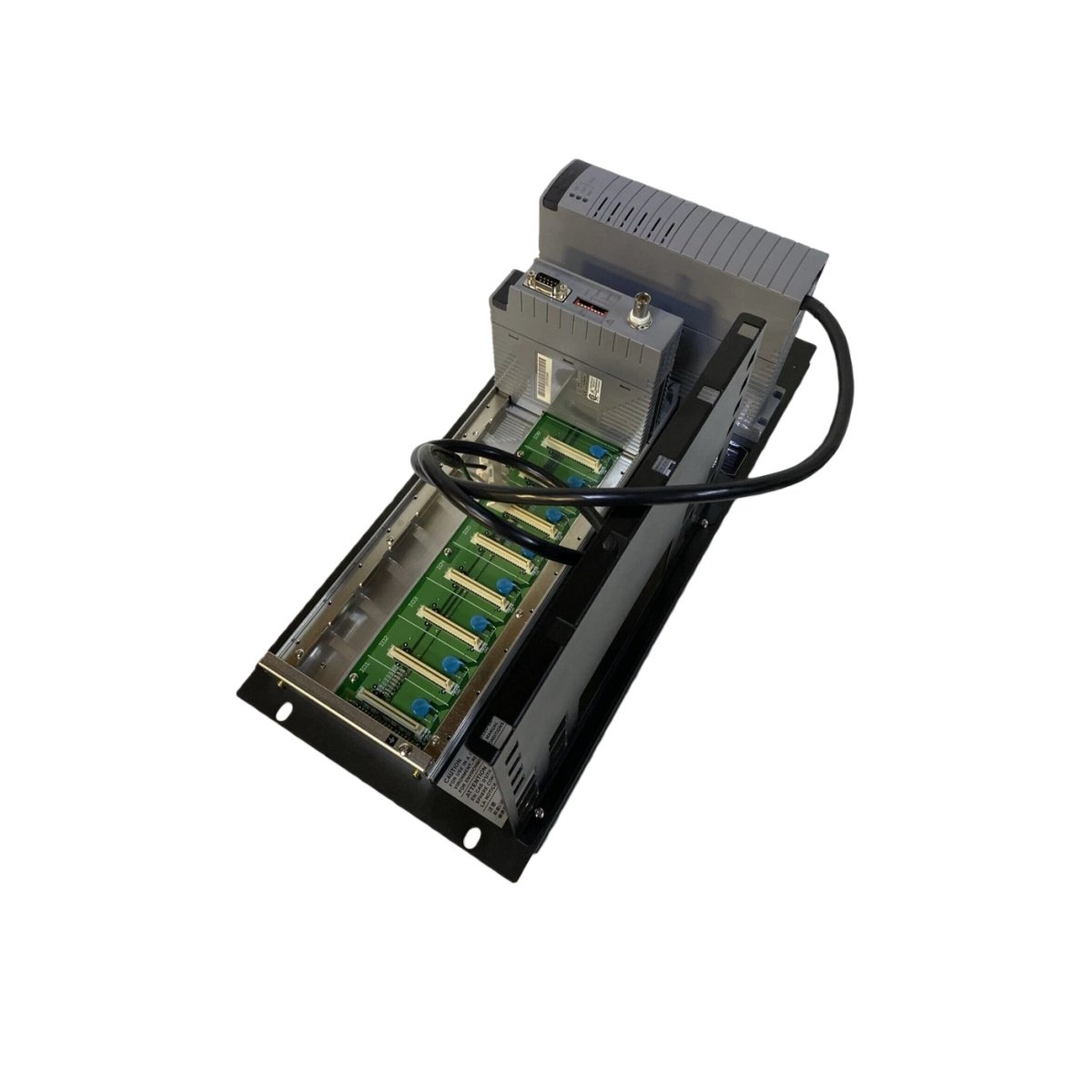

The Yokogawa ANR10S operates as an ER bus node unit within the CENTUM VP distributed control system. This module measures 130 mm in height, 54 mm in width, and 120 mm in depth for standard panel mounting. It weighs approximately 0.8 kilograms, which enables straightforward handling during installation procedures. The unit draws 0.3 A from a 24 V DC power supply, consuming roughly 7.2 W under normal load conditions. It features one ER bus interface port for backbone network connectivity. The module also includes one RS-232 serial port for local configuration and diagnostics.

It contains 128 MB of flash memory for firmware storage and 64 MB of RAM for data buffering operations. The unit supports a maximum transmission distance of 185 meters per bus segment. It offers optical isolation between the bus and internal circuits for noise immunity. The operating temperature range spans -10°C to 55°C for diverse industrial settings. Storage temperatures extend from -20°C to 70°C without causing damage. Humidity tolerance covers 10% to 90% non-condensing conditions for consistent performance.

Communication Capabilities and System Integration

This node unit manages data exchange at 10 Mbps across the ER bus backbone network. It supports up to 64 connected devices per bus segment for flexible system scaling. The Yokogawa ANR10S incorporates dual LED indicators for power and communication status monitoring. It provides electrostatic discharge protection up to 6 kV for enhanced operational durability. The unit includes a built-in watchdog timer for automatic recovery during fault events. It utilizes a 14-pin terminal block for straightforward external wiring connections.

Configuration data resides in non-volatile memory to retain settings after power cycles. The module supports hot-swappable replacement to minimize downtime during maintenance work. It complies with IEC 61131-2 standards for industrial automation equipment. The unit features a conformal coating on the PCB to resist dust and moisture ingress. It includes a ground terminal for proper chassis earthing to reduce electrical interference.

Installation Requirements and Reliability Metrics

The ANR10S mounts onto a standard DIN rail for rapid panel integration. It requires 50 mm clearance above and below for adequate airflow around the housing. The module delivers a mean time between failures of 500,000 hours for long-term reliability. It carries CE marking and UL recognition for global deployment flexibility. The unit passes vibration testing at 5 to 8.4 Hz with 3.5 mm amplitude. It withstands shock loads up to 15 g for 11 ms duration without degradation.

Event logs store in 8 MB of dedicated buffer memory for diagnostic troubleshooting. Firmware updates occur via the ER bus for future functionality enhancements. The unit contains a single printed circuit board assembly with integrated processors. This design simplifies maintenance and reduces potential failure points considerably.
