Product Overview

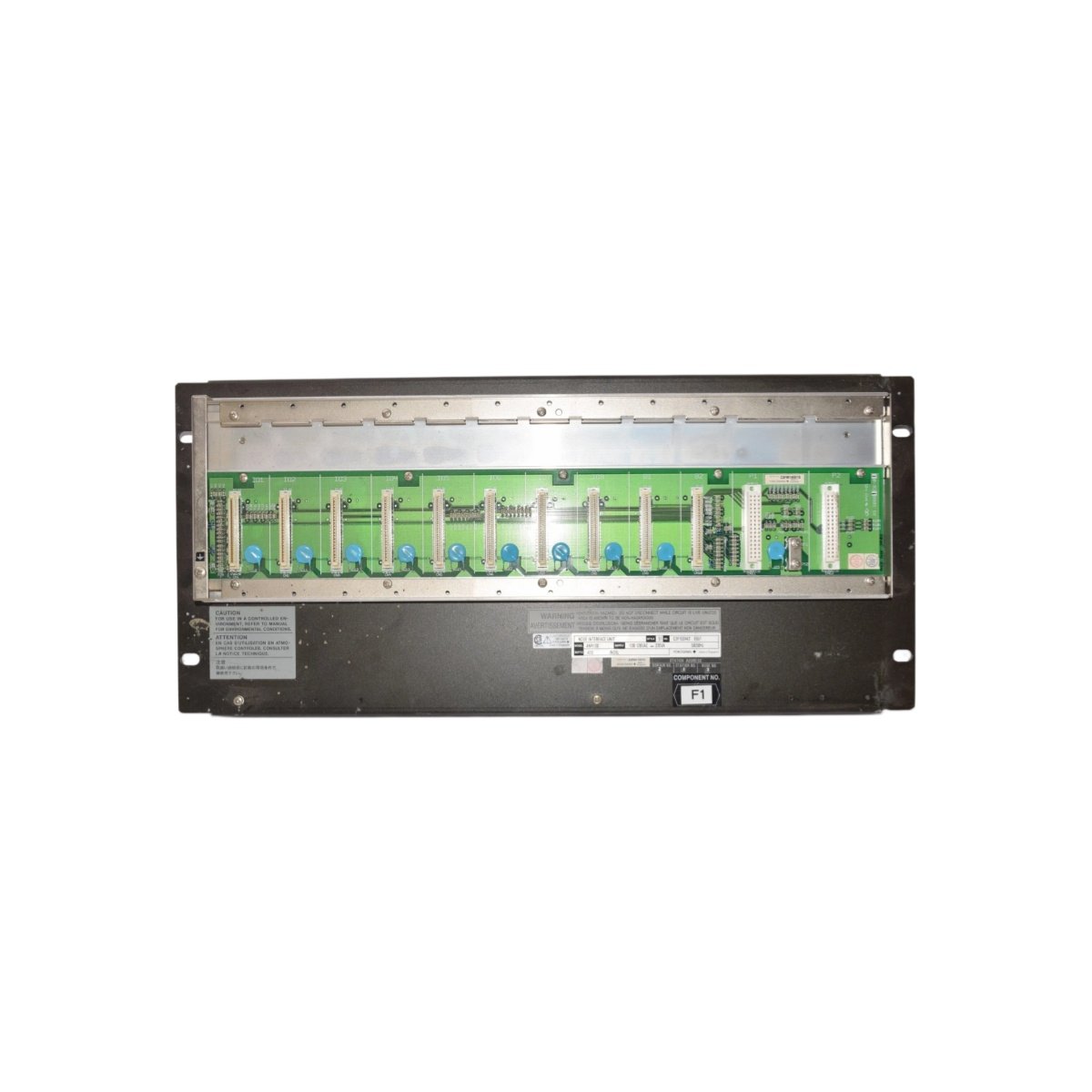

The ANR10D-440 functions as a node interface unit within Yokogawa process control networks. This robust device links field instruments to higher-level controllers through reliable communication protocols. Consequently, plant engineers achieve stable data exchange across distributed automation architectures.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Node interface unit |
| Compatible Systems | Yokogawa DCS and network platforms |
| Communication Protocol | Fieldbus and network protocols |
| Power Supply | 100–240 V AC |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Rack or panel mount |
| Weight | Approximately 2.5 kg |
| Dimensions | 220 mm × 180 mm × 60 mm |
| Housing Material | Sheet metal enclosure |
| Connection Type | Terminal block and network ports |
| Isolation | Galvanic isolation between segments |
Construction and Materials
The enclosure uses sheet metal, which shields internal electronics from electromagnetic noise. Meanwhile, terminal blocks accept standard field wiring without specialized tools. The panel mount design fits existing cabinets, so retrofits require minimal downtime.
Interface and System Compatibility
This interface unit integrates with Yokogawa DCS platforms and fieldbus segments. Additionally, galvanic isolation separates network segments to prevent ground loops. Therefore, users maintain signal accuracy even in electrically noisy plant environments.
Installation Guidelines
Mount the unit within a compatible rack and verify seating before power-up. Furthermore, route communication cables away from high-voltage wiring to reduce interference. Correct grounding practice improves network stability, so follow plant standards carefully.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
