Advanced Serial Communication and Protocol Processing

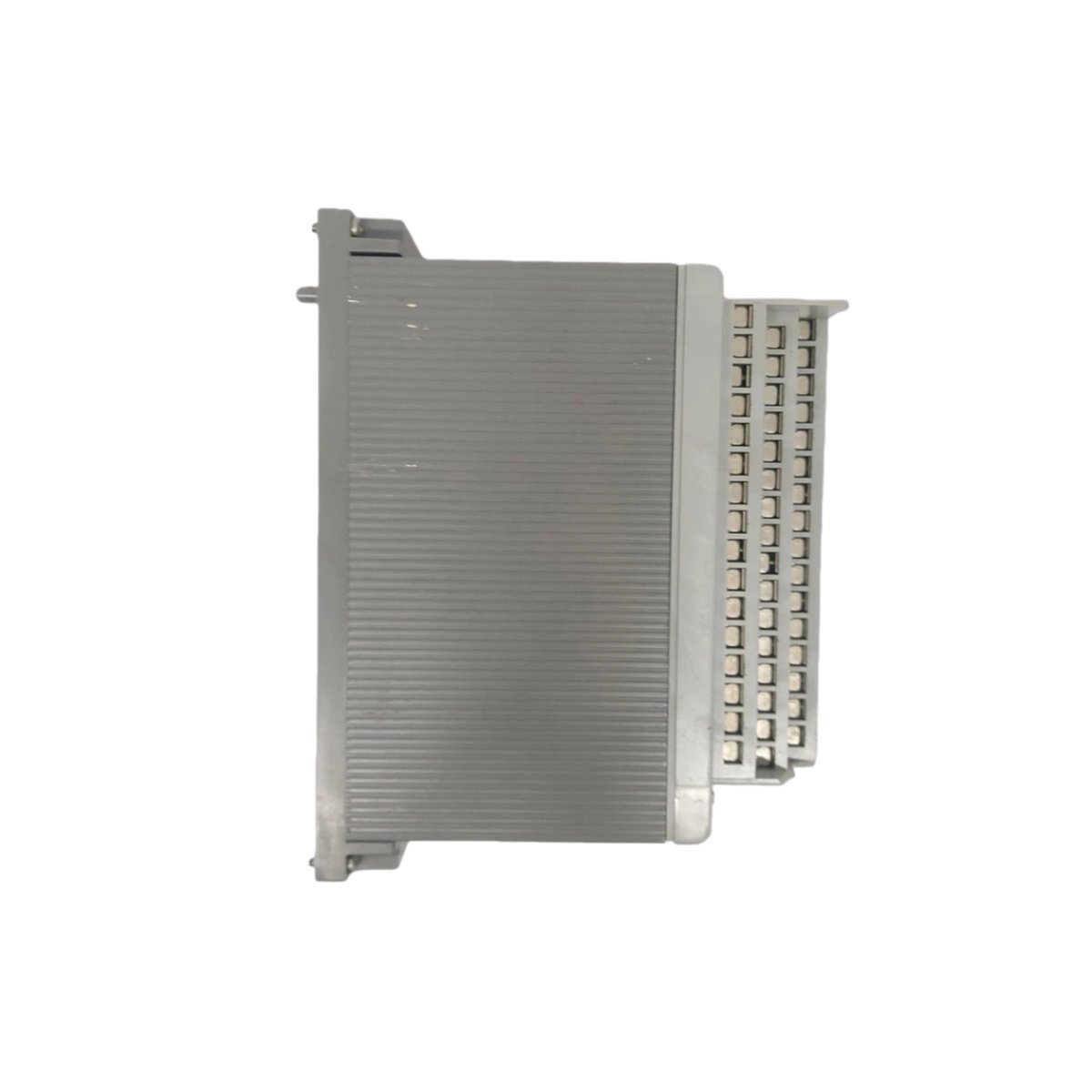

This communication card provides a dedicated interface for connecting control systems to external devices. It supports multiple serial communication standards for versatile networking applications. The Yokogawa AMN51 offers two independently configurable ports for redundant or multi-drop connections. Each port handles RS-232, RS-422, or RS-485 protocols with selectable settings. The card achieves baud rates up to 230.4 kbps for high-speed data exchange. It performs automatic protocol detection and frame parsing for seamless integration.

Physical Dimensions and Installation Specifications

The card measures 140 mm in height, 40 mm in width, and 160 mm in depth. It weighs approximately 0.32 kg with all connectors and mounting hardware included. The AMN51 inserts directly into a dedicated slot on the system backplane. Its compact single-width format maximizes available rack space for other cards. This space-efficient design supports high-density system configurations.

Interface Connectivity and Power Requirements

A 25-pin D-sub connector on the front panel provides access to both communication ports. The Yokogawa AMN51 draws its operating power from the 5 V DC backplane supply. Typical current consumption stays below 180 mA during normal operation. The card interfaces with the host CPU through a high-speed parallel bus connection. LED indicators display port activity and communication error conditions. These indicators enable rapid fault diagnosis and network monitoring.

Internal Architecture and Energy Storage Elements

The PCB contains a dedicated communication processor with dual UART channels. Each channel includes isolated transceivers for reliable signal transmission over long distances. The AMN51 stores configuration parameters and protocol settings in onboard EEPROM. A 100 µF capacitor provides local energy buffering for stable logic operation. The card incorporates transient suppression devices on each communication line. This protection safeguards the card from electrostatic discharge and surge events.

Recommended Installation Practices

Insert the Yokogawa AMN51 into the designated slot with the correct orientation. Use shielded twisted-pair cables for all field communication wiring. Connect the cable shield to ground at the control panel entry point. Configure port parameters using the system configuration software. Verify communication with connected devices using diagnostic tools. Perform periodic checks of cable connections and LED status indicators.
