High-Density Signal Routing and Interface Management

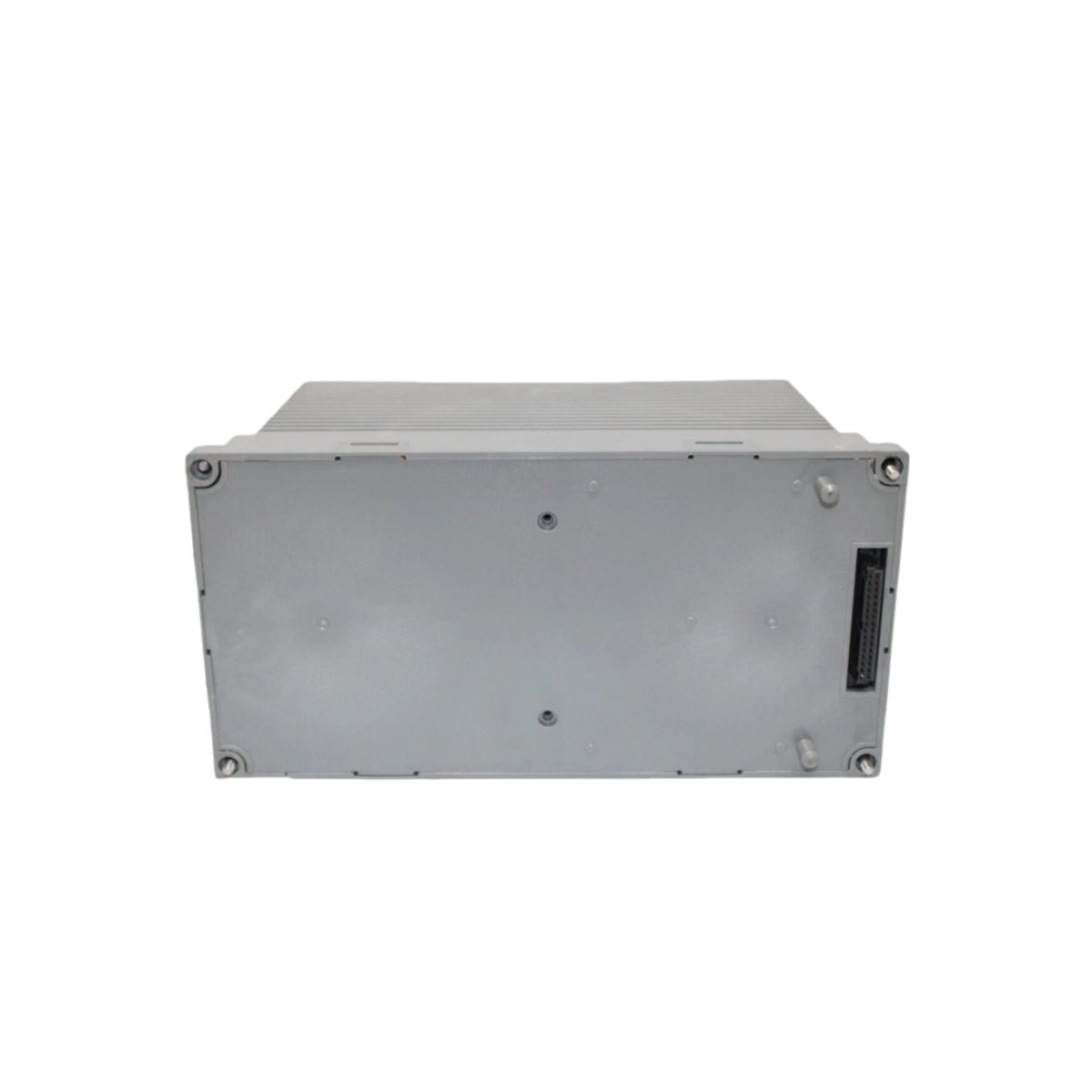

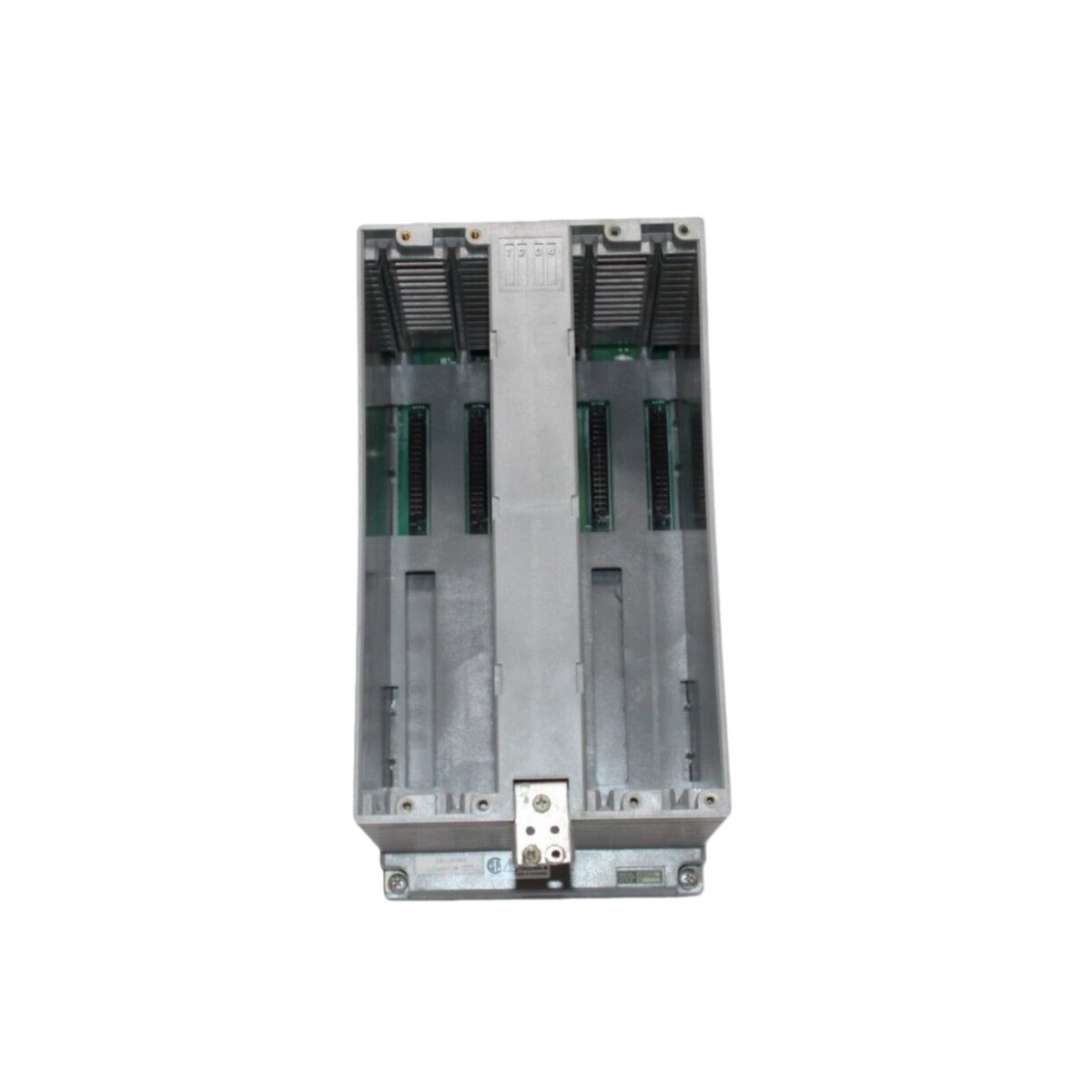

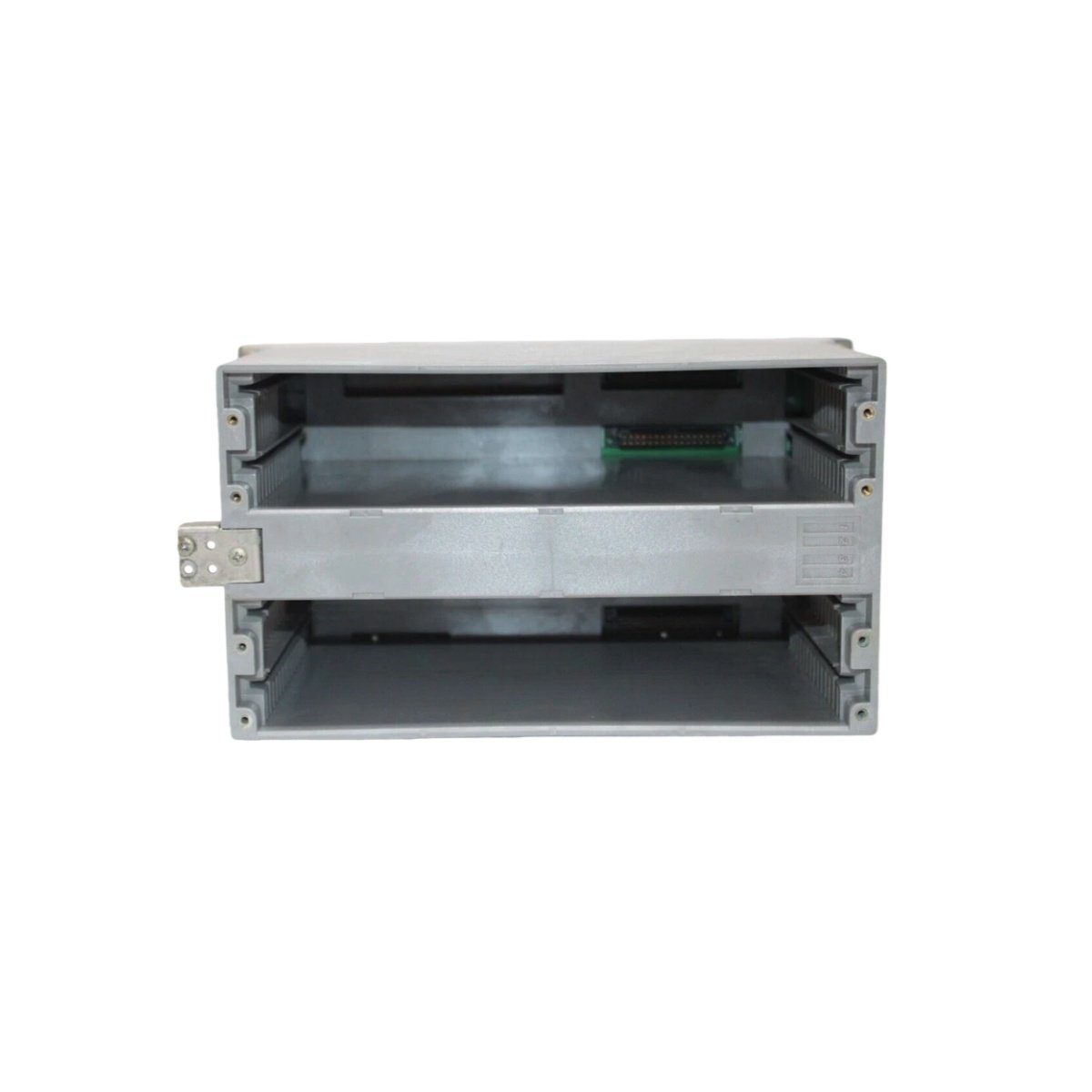

This connector I/O module provides flexible signal interfacing between field devices and control systems. It features a high-density connector design that accommodates multiple digital and analog signals. The Yokogawa AMN32 offers 32 configurable points for versatile I/O applications. Each point can operate as either a digital input, digital output, or analog input. The module supports 24 V DC digital signals and 4–20 mA analog signals. It performs automatic point-type detection to simplify system configuration.
Physical Dimensions and Mounting Specifications
The unit measures 130 mm in height, 85 mm in width, and 140 mm in depth. It weighs approximately 0.85 kg with all connectors and mounting brackets included. The AMN32 mounts securely onto a standard 35 mm DIN rail inside the control cabinet. Its reinforced steel housing offers superior protection against mechanical impacts and vibration. This rugged design ensures consistent performance in harsh industrial settings.
Interface Connectivity and Electrical Requirements
A 96-pin Euro-style connector serves as the main interface for all field signal wiring. The Yokogawa AMN32 draws its operational power from the 5 V DC backplane supply. It communicates with the host controller through a parallel data bus interface. A rotary switch enables straightforward module addressing in multi-module configurations. LED indicators display power status and group-level fault conditions. These indicators support efficient system diagnostics and maintenance activities.
Internal Architecture and Energy Storage Elements
The PCB contains 32 independent signal-conditioning circuits with programmable input/output functionality. Each circuit uses a 12-bit ADC for analog input conversion when configured accordingly. The AMN32 stores point-type configurations and calibration data in onboard EEPROM. A 330 µF capacitor provides local energy storage for transient protection and signal stability. The module includes transient voltage suppression diodes on every I/O point. This protection safeguards the module from electrostatic discharge and inductive load switching.
| Parameter | Specification |
|---|---|
| Model | AMN32 |
| Type | Connector I/O Module |
| I/O Points | 32 configurable |
| Point Types | Digital input, digital output, analog input |
| Digital Input | 24 V DC, 7 mA (typical) |
| Digital Output | 24 V DC, 0.5 A per point (max.) |
| Analog Input | 4–20 mA, 12-bit resolution |
| Point Detection | Automatic type detection |
| Supply Voltage | 5 V DC (backplane) |
| Dimensions (H×W×D) | 130 × 85 × 140 mm |
| Weight | 0.85 kg |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | –20 to +70 °C |
| Interface | Parallel backplane bus |
| Field Connector | 96-pin Euro-style connector |
| Address Setting | Rotary switch (0–9) |
| Energy Storage | 330 µF capacitor |
| Protection | Transient voltage suppression diodes |
Recommended Installation Guidelines
Position the Yokogawa AMN32 at least 150 mm away from high-power switching devices. Use shielded cables for all analog signal connections to minimize noise interference. Route digital and analog wiring in separate cable ducts to avoid cross-coupling. Configure each point type using the system configuration software before operation. Test all configured points with appropriate test equipment after installation. Perform periodic inspections to ensure connector integrity and signal quality.
