Comprehensive Analog Signal Conditioning and Channel Management

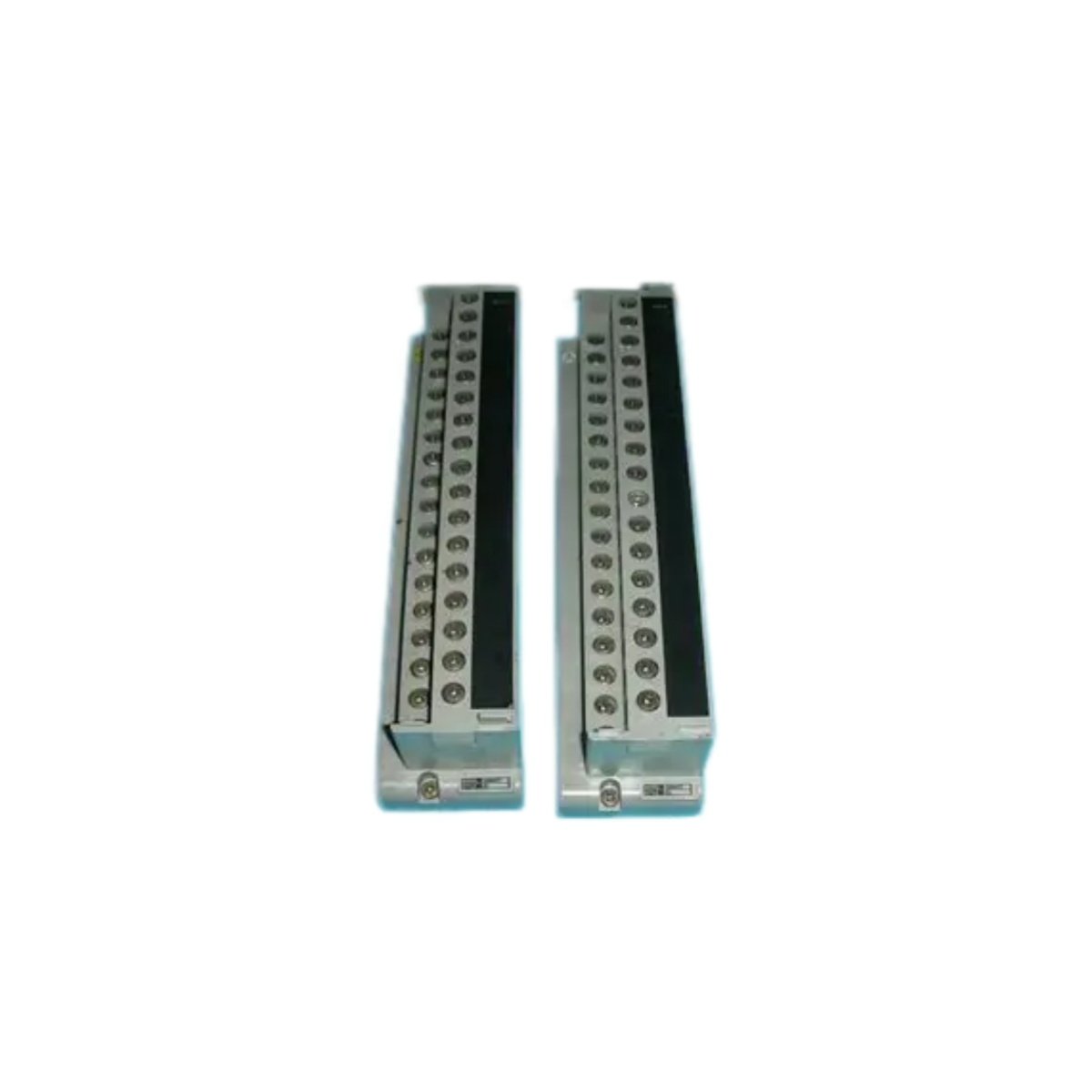

This multiplexer input module handles a wide variety of analog signals from plant-floor instruments. It accepts thermocouple, RTD, current, and voltage inputs with configurable settings per channel. The Yokogawa AMM42T offers sixteen universal input channels for versatile measurement applications. Each channel includes programmable gain amplifiers to match different sensor output levels. The module achieves a conversion accuracy of ±0.05% of full scale across all input types. It performs automatic cold-junction compensation for thermocouple measurements.

Physical Dimensions and Mounting Specifications

The unit measures 130 mm in height, 70 mm in width, and 140 mm in depth. It weighs approximately 0.65 kg with terminal blocks and mounting hardware attached. The AMM42T mounts securely onto a standard 35 mm DIN rail inside the control cabinet. Its aluminum die-cast housing provides robust protection against physical damage. This compact form factor saves valuable panel space in dense system configurations.

Interface Connectivity and Electrical Requirements

A 50-pin front connector serves as the main interface for all field wiring to the module. The Yokogawa AMM42T draws its operating power from the 5 V DC backplane supply. It communicates with the host controller through a parallel data bus interface. A DIP switch array allows users to assign unique module addresses in multi-unit setups. Front-panel LEDs indicate power status and channel-specific alarm conditions. These indicators facilitate rapid diagnostics during system commissioning.

Internal Circuitry and Energy Storage Elements

The PCB contains sixteen independent signal-conditioning circuits with precision analog components. Each channel employs a 16-bit sigma-delta ADC for high-resolution data conversion. The AMM42T stores configuration settings and calibration coefficients in onboard EEPROM. A 330 µF capacitor provides local energy buffering for transient voltage stability. The module includes input protection diodes on every channel for surge immunity. This protection ensures reliable operation in electrically noisy industrial environments.

Effective Installation and Configuration Practices

Position the Yokogawa AMM42T away from high-voltage power distribution panels and motor starters. Use shielded twisted-pair cables for analog signal wiring to minimize noise pickup. Connect cable shields to ground at a single point near the module installation. Configure input types and ranges using the module configuration software before startup. Verify each channel reading against a known reference source after wiring completion. Schedule periodic accuracy checks as part of routine preventive maintenance.
