Versatile Analog Input Handling and Channel Expansion

This multiplexer module efficiently manages multiple analog input signals for distributed control architectures. It accepts both current signals (4–20 mA) and voltage signals (1–5 V DC) from field instruments. The Yokogawa AMM42 S3 provides sixteen differential input channels for high-density signal aggregation. Each channel features programmable gain settings to accommodate various sensor output ranges. The module achieves a conversion accuracy of ±0.05% of full scale. It performs automatic zero-point calibration to maintain measurement integrity over time.

Physical Dimensions and Installation Requirements

The unit measures 130 mm in height, 70 mm in width, and 140 mm in depth. It weighs roughly 0.65 kg with all connection hardware included. The AMM42 S3 mounts directly onto a standard 35 mm DIN rail inside a control panel. Its reinforced steel housing offers superior protection against mechanical stress. This durable design supports reliable operation in demanding industrial settings.

Interface Connectivity and Power Distribution

A 50-pin D-sub connector provides convenient access for all field wiring terminations. The Yokogawa AMM42 S3 requires a 24 V DC supply voltage for its internal circuitry. Typical current consumption stays below 200 mA under normal operating conditions. The module communicates with the main processor via a high-speed parallel backplane interface. LED indicators on the front panel show channel status and diagnostic information. These visual indicators significantly reduce fault-finding time during system maintenance.

Internal Architecture and Component Specifications

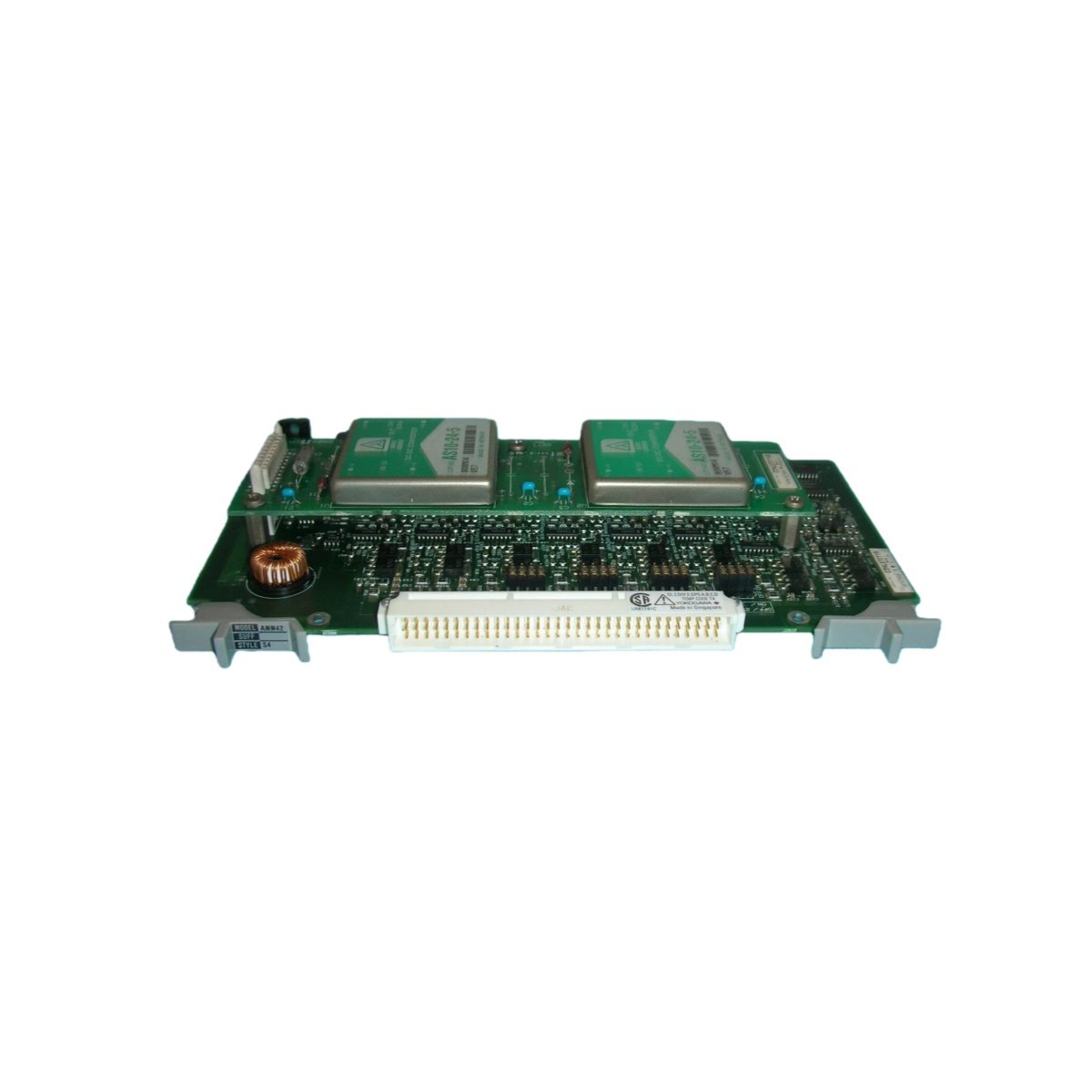

The PCB incorporates sixteen independent signal-conditioning channels with precision operational amplifiers. Each channel uses a 16-bit sigma-delta ADC for high-resolution data conversion. The AMM42 S3 stores configuration parameters and calibration coefficients in onboard EEPROM. A 220 µF capacitor provides local energy storage to smooth out supply voltage fluctuations. The module includes surge suppression diodes on every input channel. This protection strategy safeguards the module from electrostatic discharge and transient overvoltages.

Effective Installation Strategies

Place the Yokogawa AMM42 S3 at least 200 mm away from high-voltage power cables. Use individually shielded cables for all analog signal connections to the module. Connect each cable shield to ground at the control panel entry point. Perform a full channel calibration after wiring completion using a precision signal generator. Document all calibration results for future reference and quality records. Schedule routine inspections to check for loose connections and dust accumulation.
