Precise RTD Signal Conditioning and Channel Expansion

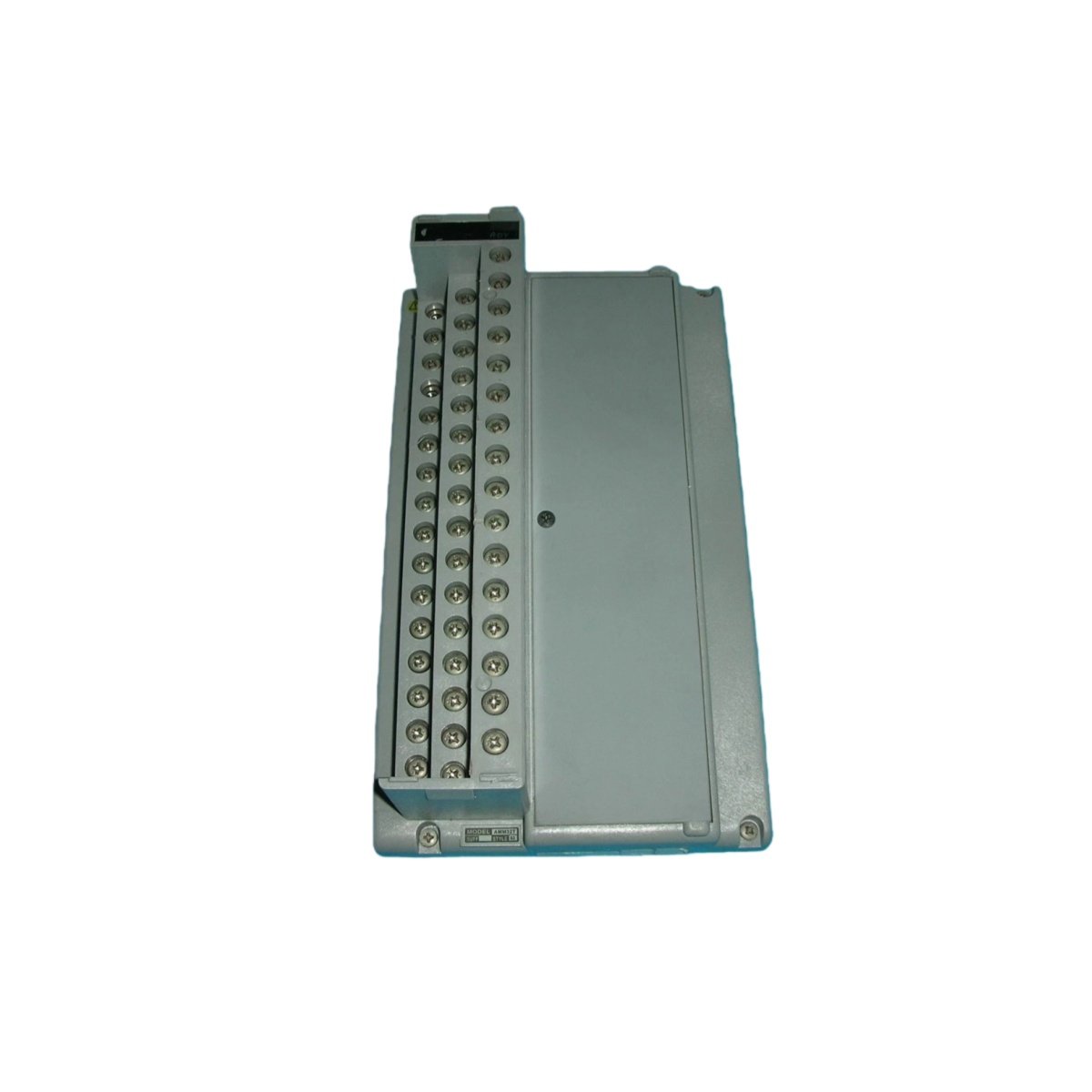

This multiplexer module handles multiple RTD inputs for distributed temperature monitoring systems. It accepts PT100 and Ni100 sensor types with three-wire or four-wire configurations. The Yokogawa AMM32T provides sixteen differential input channels for high-density plant installations. Each channel incorporates constant-current excitation sources for accurate resistance measurement. The module achieves a typical conversion accuracy of ±0.1 °C across the operating range. It automatically compensates for lead wire resistance using advanced bridge circuitry.

Physical Construction and Mounting Specifications

The unit measures 120 mm in height, 60 mm in width, and 130 mm in depth. It weighs roughly 0.55 kg with all terminal blocks attached. The AMM32T mounts securely onto a standard 35 mm DIN rail inside a control cabinet. Its extruded aluminum housing provides effective shielding against electromagnetic interference. This robust construction ensures reliable operation in high-vibration environments.

Electrical Interfaces and Communication Protocol

A front-accessible 50-pin connector interfaces with all field wiring terminations. The Yokogawa AMM32T draws its operational power from the backplane bus at 5 V DC. It communicates with the main processor via a dedicated serial peripheral interface. The module includes a rotary switch for setting the station address. LED indicators on the front panel display power status and channel activity. These visual cues simplify troubleshooting during system commissioning.

Internal Architecture and Component Layout

The PCB contains sixteen individual signal-conditioning circuits with precision thin-film resistors. Each circuit uses a 16-bit analog-to-digital converter for digitizing the RTD signals. The AMM32T stores its calibration coefficients in onboard EEPROM memory. A 470 µF capacitor provides local energy storage for transient protection. The module also incorporates optical isolation barriers between field and logic circuits. This isolation safeguards the controller from potential ground loops.

Practical Installation Guidelines for Optimal Performance

Position the Yokogawa AMM32T away from variable-frequency drives and large contactors. Use twisted-pair cables with an overall shield for each RTD connection. Connect the cable shield only at the module end to avoid ground loops. Perform a two-point calibration after installation using precision decade boxes. Verify that each channel reads within tolerance before placing the system online. Schedule regular visual inspections for connector tightness and dust removal.
