Key Technical Specifications of the AMM32J S1

This analog module delivers precise signal conversion for distributed control architectures. It supports multiple input types, including 4–20 mA and 1–5 V DC signals. The Yokogawa AMM32J S1 accommodates eight isolated channels for field device connectivity. Each channel provides 16-bit resolution for accurate process variable readings. The module operates within a 0 to 60 °C ambient temperature range. It stores configuration data in non-volatile EEPROM memory for reliable startup.

Physical Dimensions and Mounting Details

The unit measures 100 mm in height, 50 mm in width, and 120 mm in depth. It weighs approximately 0.45 kg without additional mounting hardware. The AMM32J S1 mounts directly onto a standard DIN rail inside a protected enclosure. This compact design saves valuable panel space in crowded cabinets. Its robust housing meets IP30 protection against solid particles.

Interface Connectivity and Power Requirements

A front-facing D-sub connector provides access to all analog I/O points. The Yokogawa AMM32J S1 requires a 24 V DC nominal supply voltage for operation. Current consumption stays below 150 mA under full load conditions. An onboard LED indicator displays channel status and fault conditions. The module communicates with the main controller via a high-speed backplane interface. This backplane connection ensures deterministic data exchange within the scan cycle.

Internal Components and Energy Storage

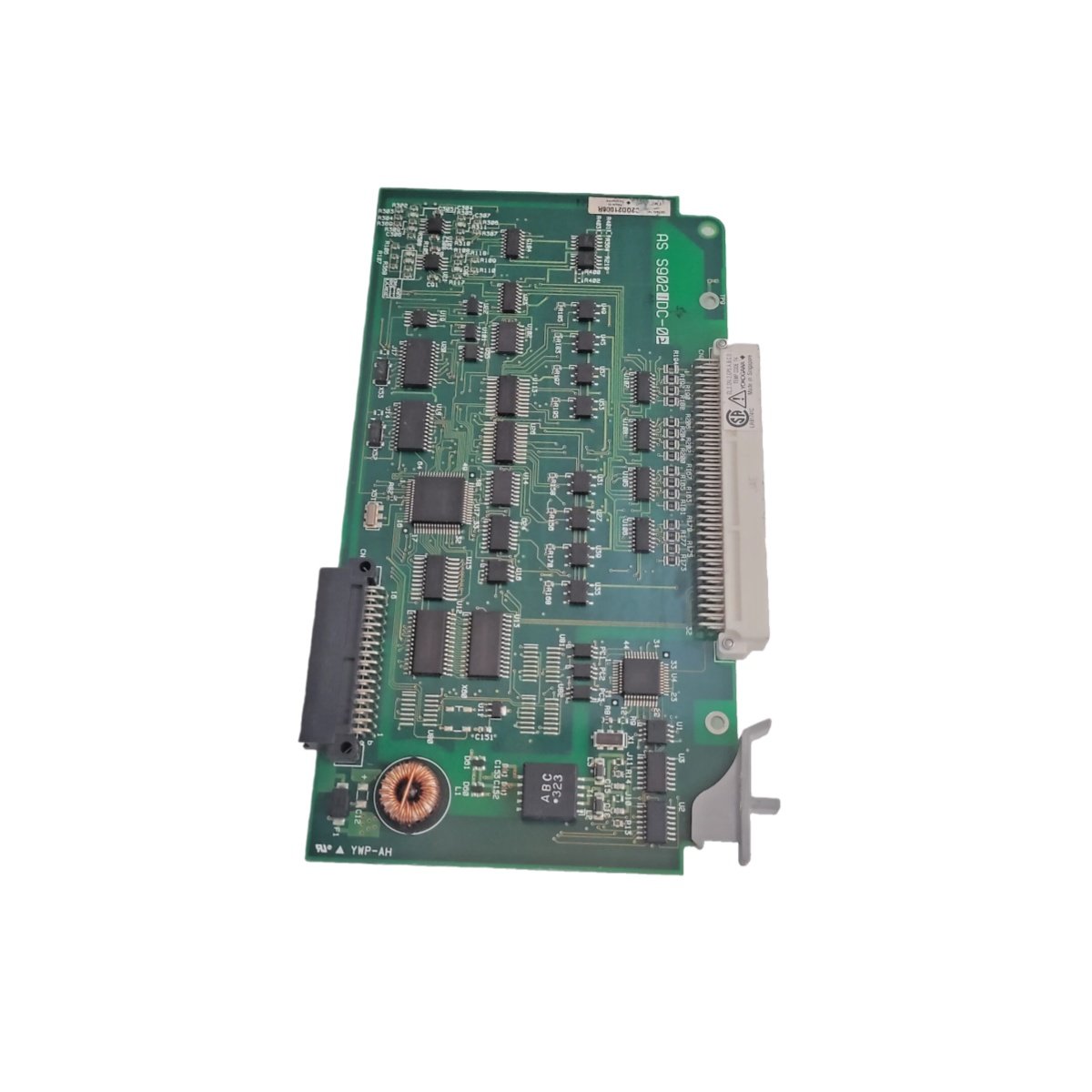

The internal PCB houses precision resistors, capacitors, and transient suppression diodes. A 100 µF electrolytic capacitor provides local energy buffering against voltage dips. The AMM32J S1 includes a replaceable fuse for overcurrent protection. All critical components feature conformal coating for humidity resistance. This coating extends the module’s service life in harsh industrial environments.

Installation Best Practices for Reliable Operation

Place the Yokogawa AMM32J S1 away from high-voltage cables to reduce noise interference. Ensure proper grounding of the DIN rail before module insertion. Verify the supply voltage polarity before connecting the power terminals. Use shielded twisted-pair cables for all analog field wiring connections. Terminate the shield only at the control panel ground point. Perform a channel calibration after initial installation for maximum accuracy. Schedule periodic inspections to check for dust accumulation on the PCB.
