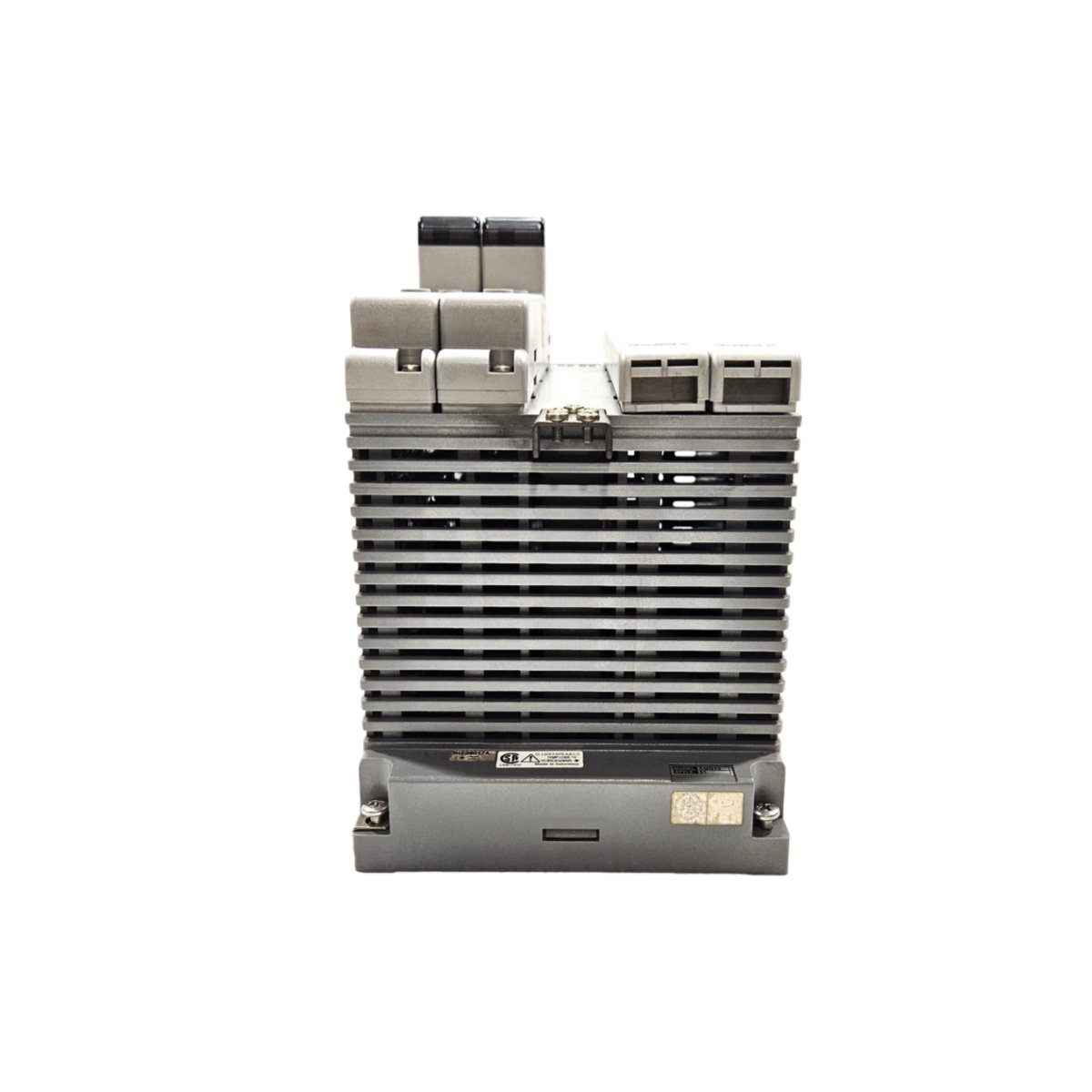

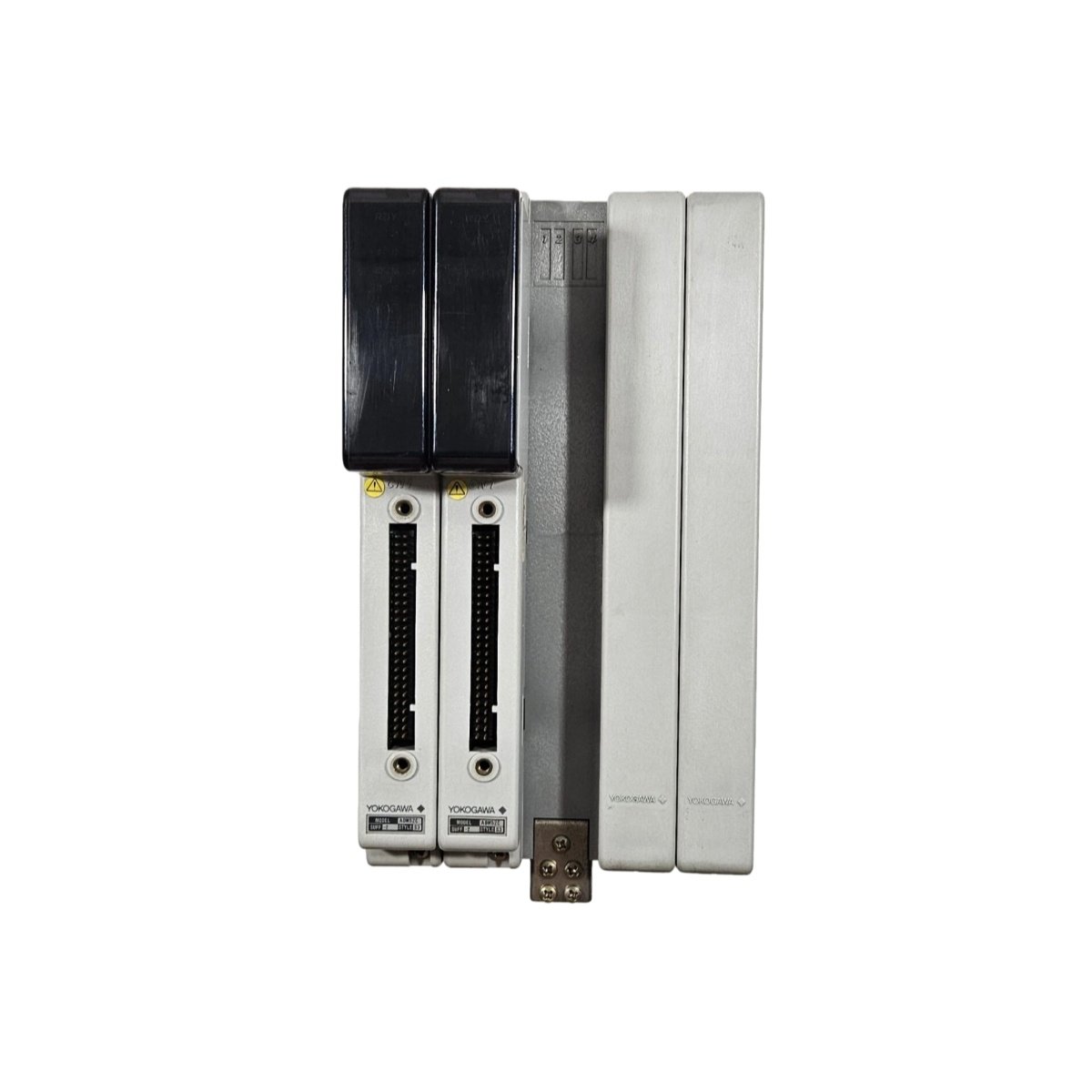

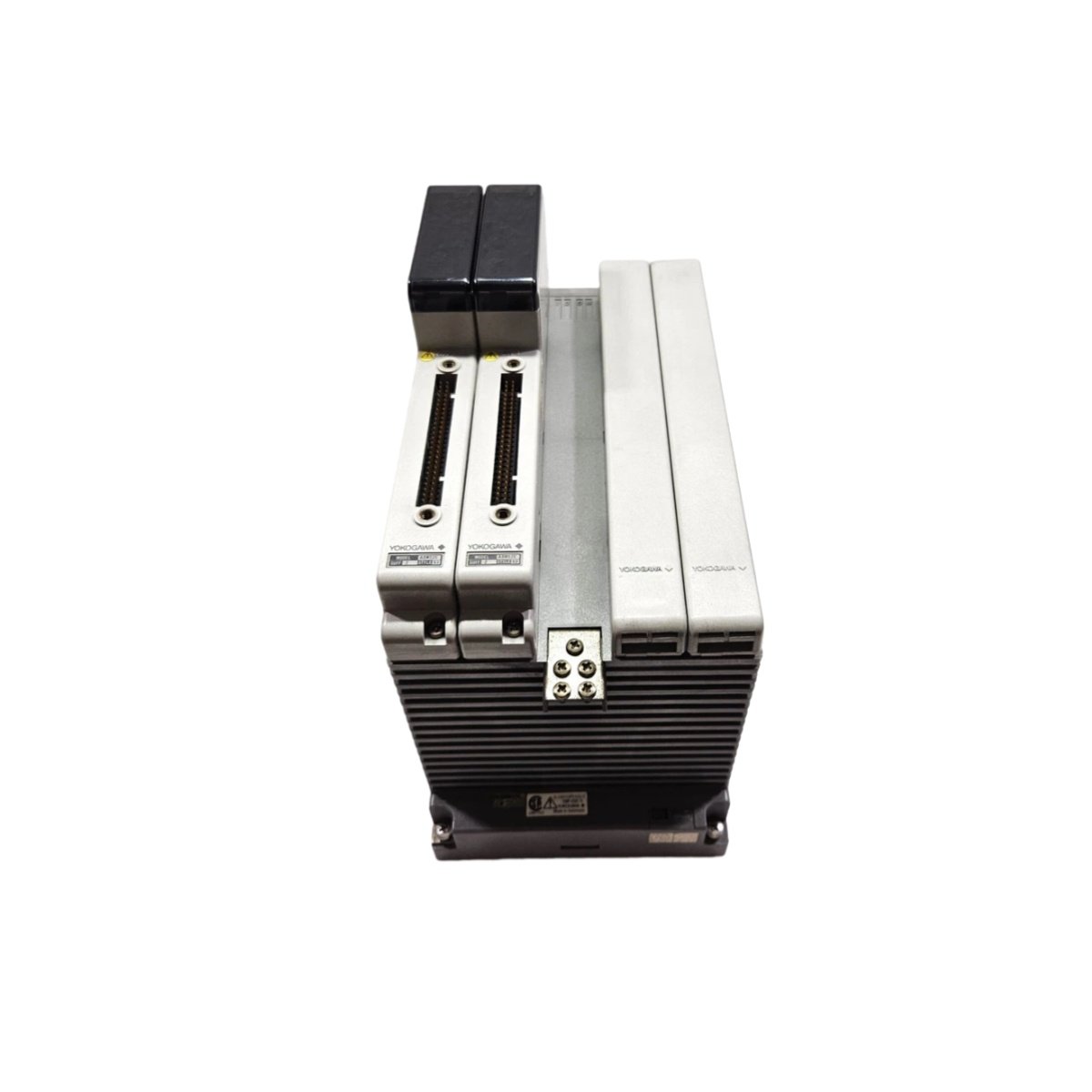

The Yokogawa AMM25C expands your distributed control system’s field input capacity. This module consolidates multiple analog signals into a single communication path. It directly interfaces with various field transmitters and sensors. You will reduce both wiring complexity and installation costs significantly. This multiplexer delivers reliable performance in harsh industrial environments.

Physical Dimensions and Installation Parameters

This module features a ruggedized housing for panel or rack mounting. It measures 130 mm in height and 40 mm in width. The unit depth reaches 150 mm for standard cabinet integration. It weighs approximately 0.6 kilograms for straightforward handling. The operating temperature range spans from -10°C to +60°C. This ensures stable operation across diverse process conditions.

Input Specifications and Signal Processing

The Yokogawa AMM25C accepts up to 16 analog input channels. Each channel handles standard 4-20 mA current loops or voltage signals. The module digitizes these inputs with 16‑bit resolution. It then transmits the processed data to the main controller. The internal memory stores configuration settings and calibration constants. This onboard storage preserves all parameters during power interruptions.

Connectivity and Diagnostic Features

A 50‑pin ribbon cable provides the primary interface to the backplane. This connector ensures high‑speed data exchange with the central processor. The module includes LED indicators for each active channel. These lights immediately show signal status and fault conditions. Consequently, maintenance personnel can quickly identify problematic inputs. The Yokogawa AMM25C incorporates automatic self‑diagnostic routines at startup.

Component Architecture and Reliability

This device contains roughly 85 discrete electronic components. The design uses surface‑mount technology for enhanced durability. Each component undergoes rigorous quality testing during assembly. The power supply circuit includes transient voltage suppression for protection. This safeguard prevents damage from electrical surges or spikes.

Technical Data Summary

Signal Integrity and Noise Rejection

The Yokogawa AMM25C employs advanced filtering algorithms for noise reduction. This feature eliminates interference from adjacent high‑power equipment. The module also provides galvanic isolation between input and output circuits. This isolation protects the control system from ground loop errors. You can rely on accurate readings even in electrically noisy plants.
