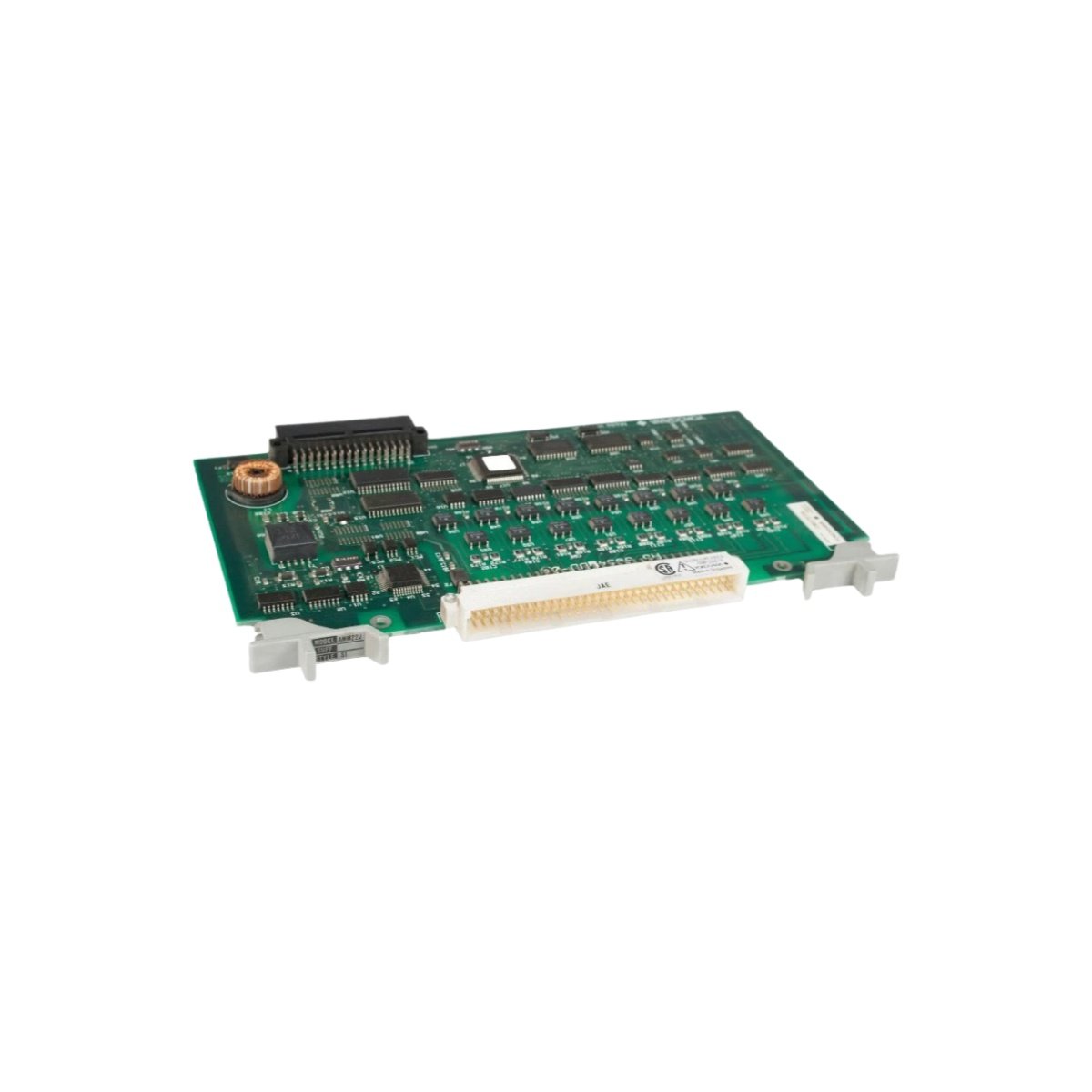

The AMM22J operates as a voltage input multiplexer module within Yokogawa industrial monitoring systems. This unit routes multiple analog signals into a single measurement channel. Consequently, engineers gain efficient data collection without installing separate input cards for each sensor.

Technical Specifications Overview

The AMM22J combines a compact module body with rugged industrial construction. Moreover, its parameter set helps engineers plan channel counts and signal routing accurately.

Interface and Signal Routing Details

The AMM22J connects field wiring through screw terminals on the front panel. Therefore, technicians achieve secure contact with standard instrument cables. The multiplexer switches each voltage channel in sequence to the shared measurement path. In addition, the module draws 24 V DC directly from the rack power rail.

Physical Characteristics and Installation

This module measures roughly 130 mm wide and 100 mm high. Furthermore, its 45 mm depth suits compact cabinet layouts. The AMM22J weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the AMM22J for temperature scanning, voltage trending, and multi-point monitoring tasks. Meanwhile, front-panel indicators show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for power.
