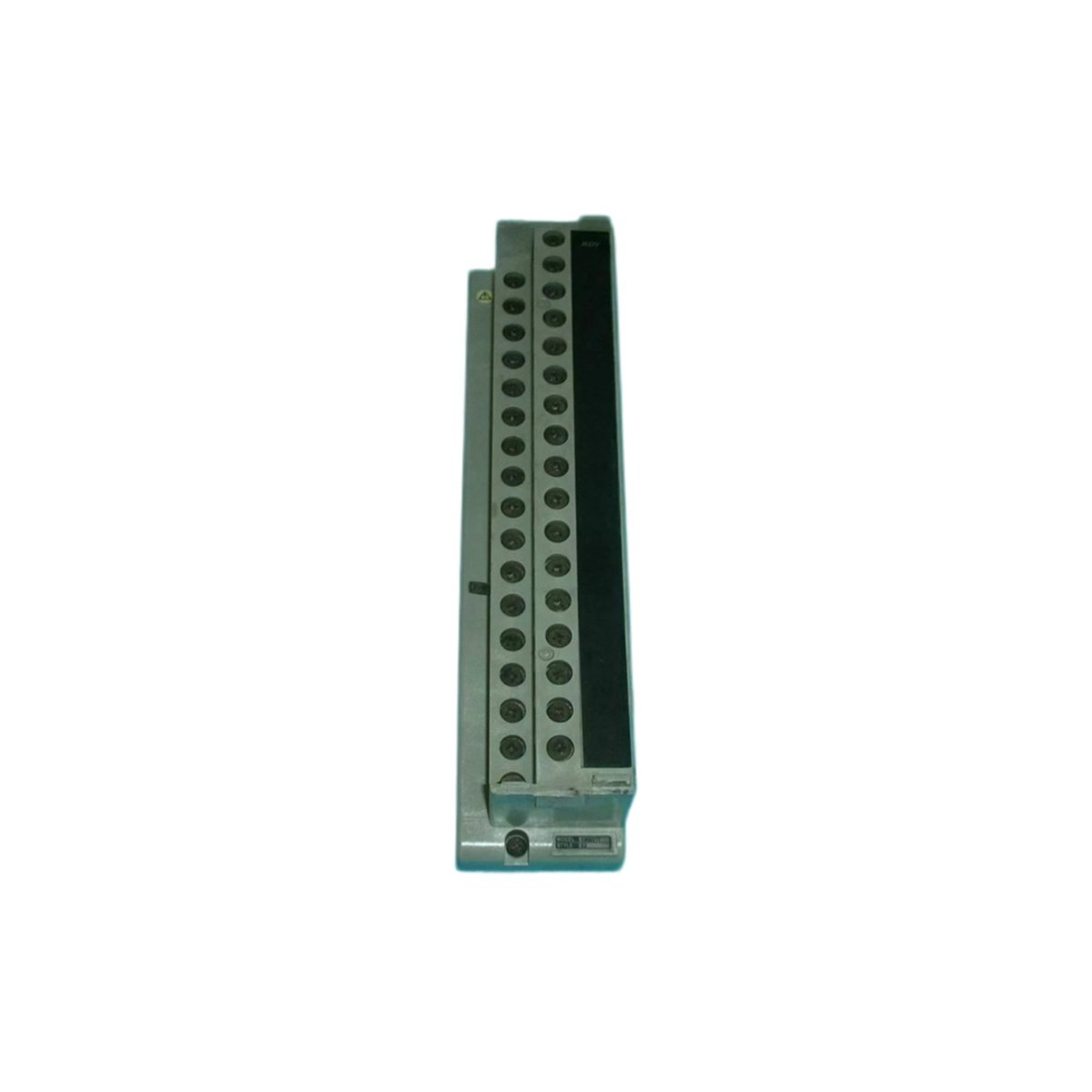

The AMM21 operates as an analog input module within Yokogawa industrial measurement systems. This unit converts voltage and current signals from field transmitters into digital values. Consequently, engineers gain accurate process data for monitoring and control loops.

Technical Specifications Overview

The AMM21 combines a compact module body with rugged industrial construction. Moreover, its parameter set helps engineers plan channel counts and signal wiring accurately.

Interface and Signal Connection Details

The AMM21 connects field wiring through screw terminals on the front panel. Therefore, technicians achieve secure contact with standard instrument cables. The module accepts voltage and current inputs from transmitters and sensors. In addition, it draws 24 V DC directly from the rack power rail.

Physical Characteristics and Installation

This module measures roughly 130 mm wide and 100 mm high. Furthermore, its 45 mm depth suits compact cabinet layouts. The AMM21 weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the AMM21 for temperature, pressure, and flow measurement tasks. Meanwhile, front-panel indicators show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for power.
