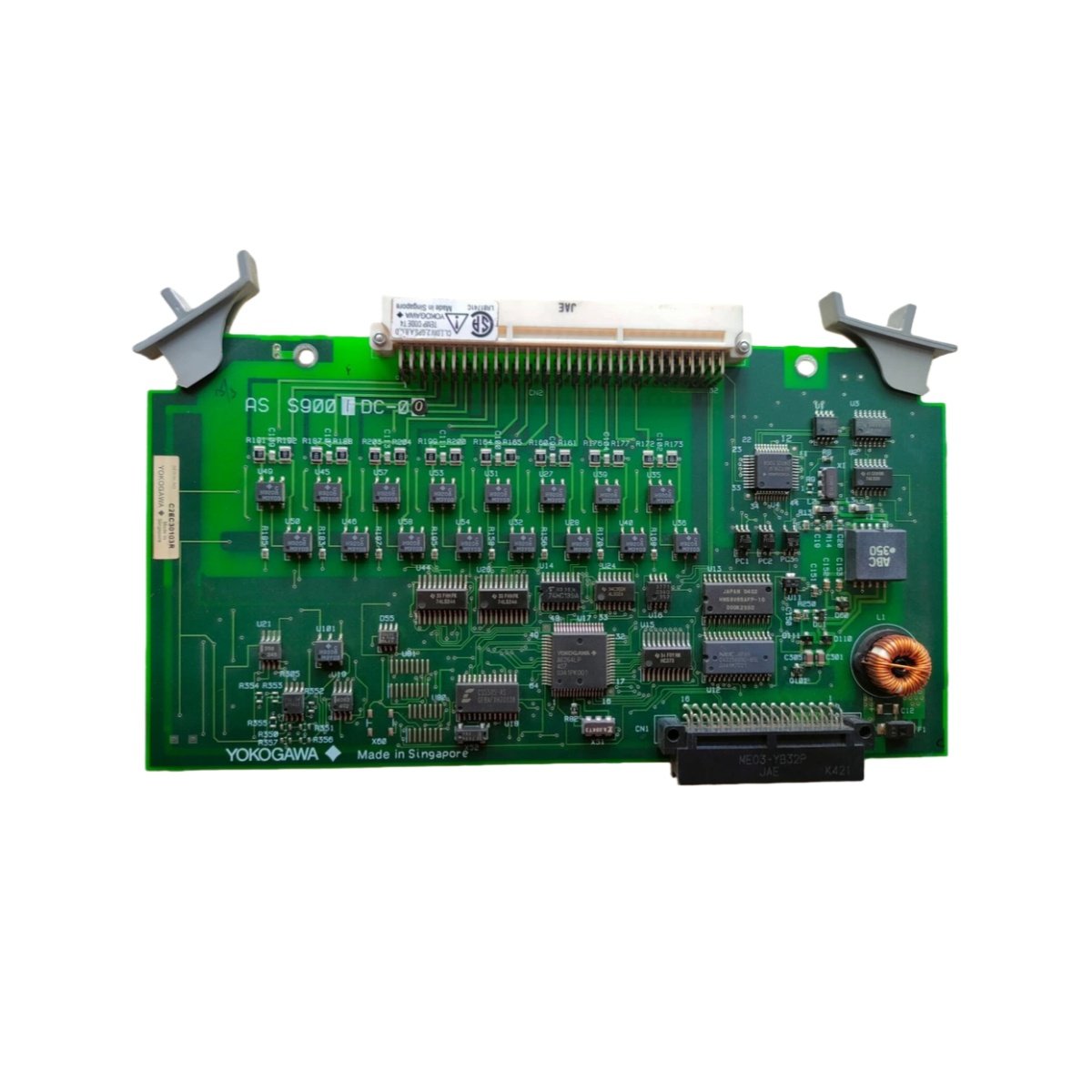

This voltage input multiplexer module expands analog input capacity for Yokogawa Centum VP systems. The AMM12 S3 routes multiple voltage signals to a single analog-to-digital converter efficiently. It handles low-level analog signals from thermocouples, RTDs, and transmitters. Process engineers choose this module for its high channel density and scanning capability. Its compact design maximizes input capacity within limited rack space.

Technical Specifications Summary

Multiplexing Architecture and Scanning Method

The module sequentially scans 12 differential voltage inputs through a single ADC. This multiplexing architecture reduces component count and cost effectively. The AMM12 S3 switches between channels using precision relays for minimal signal distortion. Each channel provides >100 MΩ input impedance for accurate low-level signal measurement. This high impedance prevents loading of sensitive thermocouple and RTD signals. The module completes a full 12-channel scan within 100 milliseconds. This scanning speed suits most process monitoring and trending applications.

Resolution and Accuracy Performance

The module features 16-bit analog-to-digital conversion for exceptional measurement precision. This high resolution captures small signal variations accurately. Accuracy reaches ±0.05% of full scale at 25 degrees Celsius ambient. Temperature drift remains within ±25 parts per million per degree Celsius. The AMM12 S3 maintains accuracy across its full operating temperature range. Common mode rejection exceeds 120 dB for eliminating ground loop noise. Normal mode rejection reaches 70 dB for attenuating power line interference. These specifications ensure reliable, repeatable measurements.

Input Range and Signal Conditioning

The module accepts voltage inputs from -10 V to +10 V DC across all channels. This wide range accommodates various sensor and transmitter output signals. The AMM12 S3 handles signals from thermocouples, RTDs, and millivolt transducers. It includes programmable gain stages for optimizing signal levels. Users configure gain and offset for each channel through software conveniently. Digital filtering reduces noise from electromagnetic interference and process fluctuations. Engineers select filter frequency and characteristics to suit each application.

Diagnostics and Channel Monitoring

The module incorporates diagnostics for detecting wiring and sensor faults. It performs open-circuit detection on all 12 input channels automatically. The AMM12 S3 reports fault conditions to the host controller without delay. It also monitors signal levels for out-of-range conditions. LED indicators display channel status for visual verification during maintenance. Users can enable or disable diagnostic functions through configuration software. These features simplify troubleshooting and reduce plant downtime substantially.

Mechanical Design and Installation

The module occupies a single slot in the Yokogawa chassis system. It measures 130 millimeters high, 40 millimeters wide, and 120 millimeters deep. The unit weighs only 0.3 kilograms for easy handling. Power consumption draws 3.5 watts from the +5 V DC backplane supply. A removable 20-pin terminal block accepts field wiring connections securely. The terminal block accommodates 22-14 AWG wire for flexible installation. No external power supply is necessary for operation. The module inserts directly into the rack without special tools.

Environmental Specifications and Long-Term Reliability

Industrial environments demand consistent performance under varying conditions. The AMM12 S3 operates reliably from -10 °C to +55 °C ambient temperature. Storage temperatures range from -40 °C to 85 °C for shipping protection. Humidity tolerance covers 10% to 90% without condensation affecting circuits. Conformal coating on the circuit board prevents moisture-related failures. The module includes transient suppression on all field connections. Quality components ensure extended operational life with minimal maintenance.
