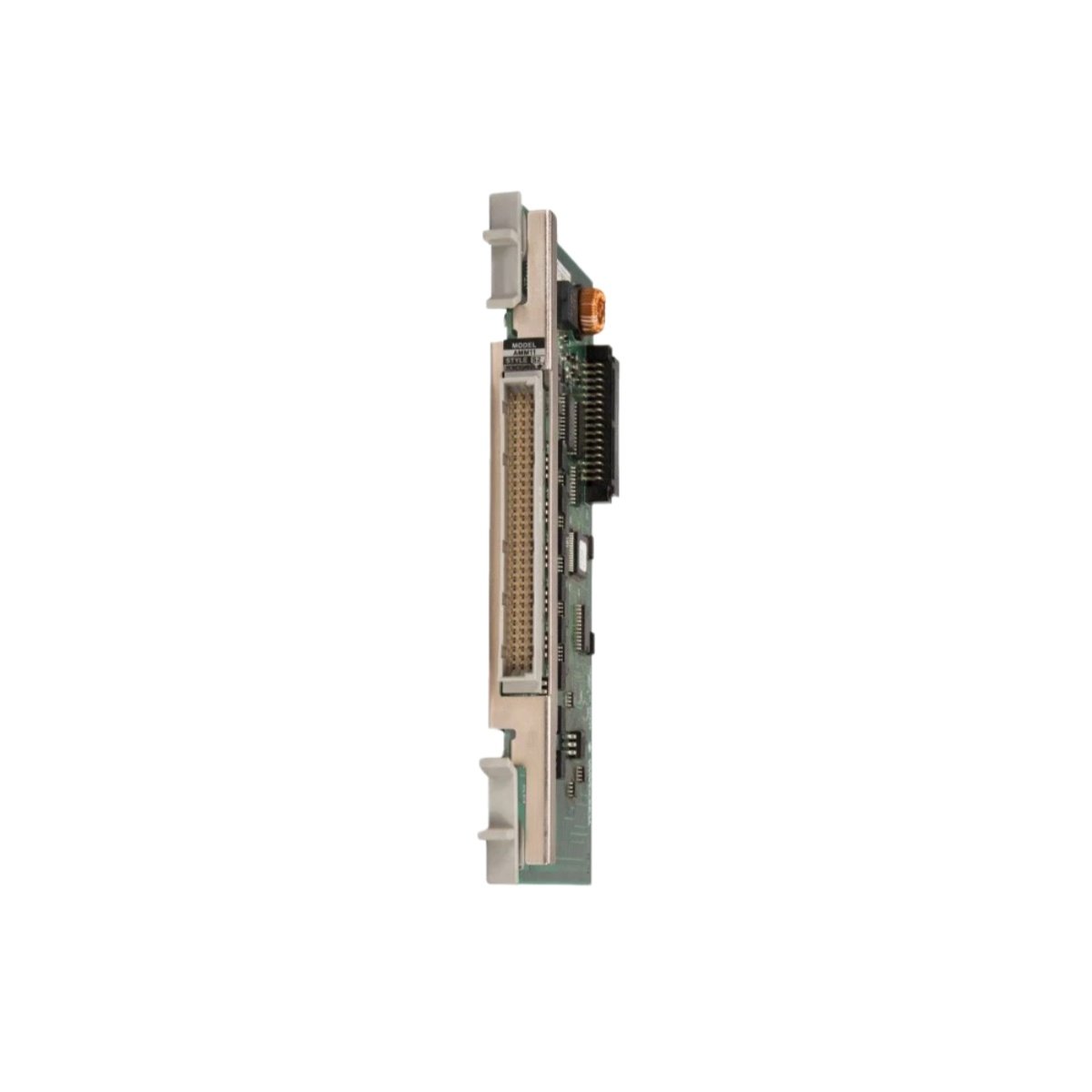

Overview of the Yokogawa AMM11 Voltage Input Multiplexer Module
The AMM11 functions as a voltage input multiplexer module within Yokogawa’s control system hardware. This unit routes multiple voltage signals into a single acquisition path for efficient processing. Engineers deploy it in process plants that demand dense, accurate signal monitoring.
Key Technical Specifications of the AMM11
The AMM11 combines a rugged housing with a secure field wiring interface. Below you will find the core parameters that define this module’s performance envelope.
| Parameter | Specification |
|---|---|
| Product Type | Voltage Input Multiplexer Module |
| Input Channels | 16 voltage inputs |
| Input Signal Range | 1–5 V DC |
| Multiplexing Ratio | 16:1 channel selection |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel isolation |
| Number of Terminals | 20 screw terminals |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approximately 3.5 W |
| Dimensions | 130 mm × 100 mm × 25 mm |
| Weight | Approximately 250 g |
| Interface | Screw terminals and backplane bus |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% RH, non-condensing |
Physical Design and Interface Details
The AMM11 adopts a compact footprint that fits standard Yokogawa I/O racks. Its dimensions measure 130 mm in length, 100 mm in width, and 25 mm in depth. Moreover, the module weighs roughly 250 grams, which simplifies rack installation and field replacement. Twenty screw terminals secure field wiring without specialized tooling.
Performance and Signal Processing Capabilities
This module multiplexes sixteen voltage inputs into a single acquisition path. The 16:1 multiplexing ratio reduces hardware overhead while maintaining signal integrity. The 16-bit A/D conversion delivers high-resolution data for demanding measurement loops. Additionally, channel-to-channel isolation prevents interference between adjacent inputs. Consequently, the unit suits dense monitoring applications requiring tight tolerances.
Power and Environmental Considerations
The AMM11 operates on a 24 V DC nominal power supply. Power consumption remains approximately 3.5 W during normal operation. The operating temperature range spans 0°C to 55°C for industrial environments. Storage temperature extends from -20°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
