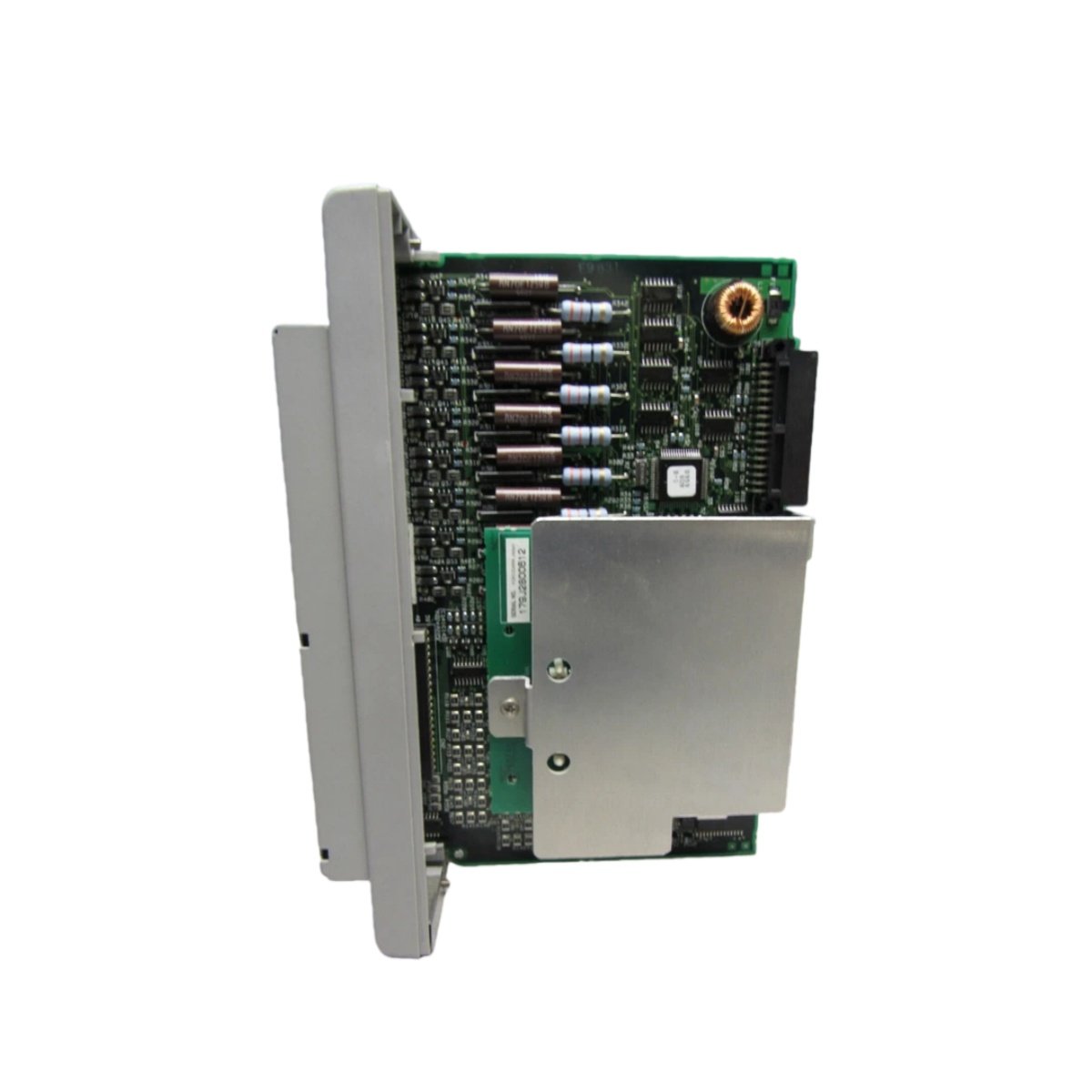

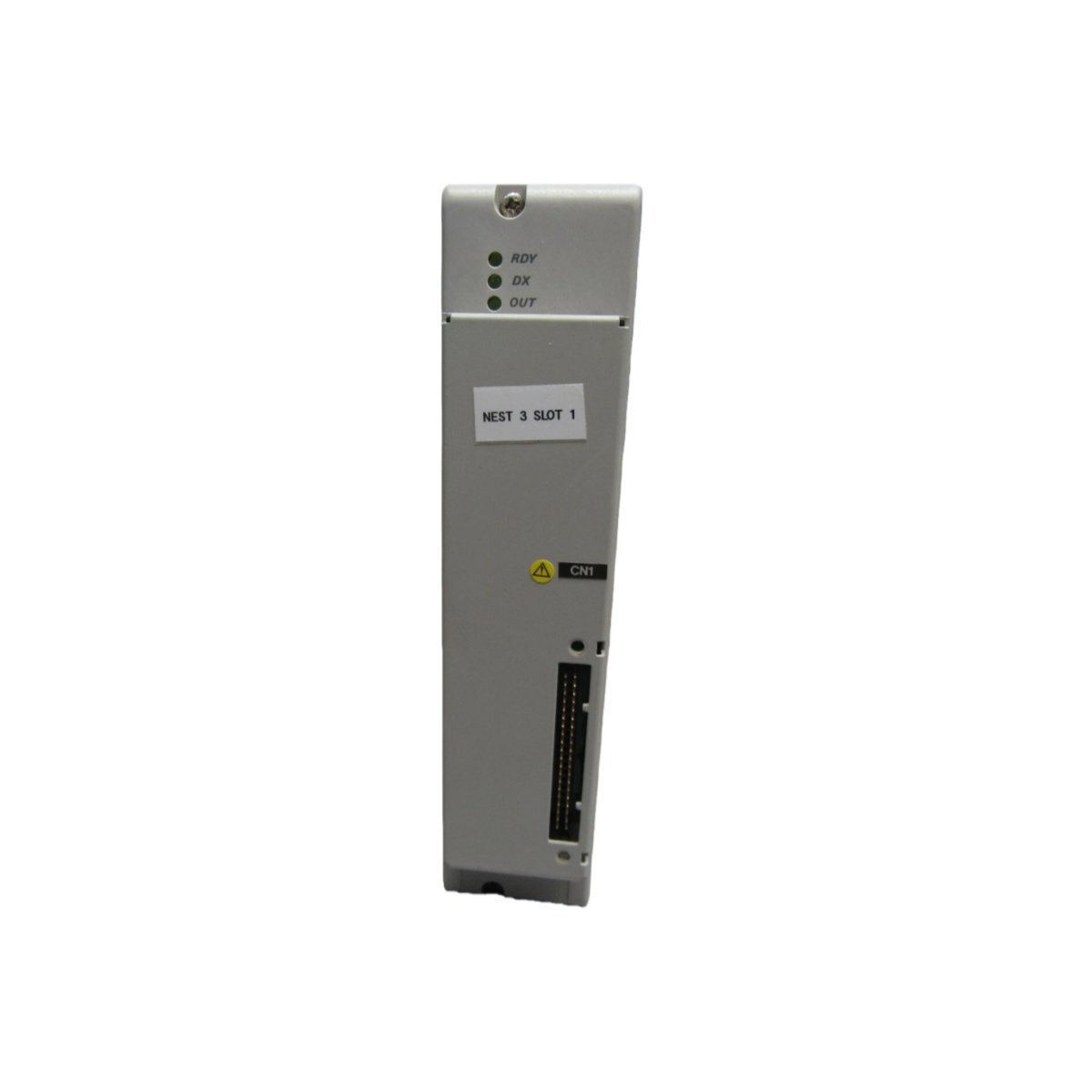

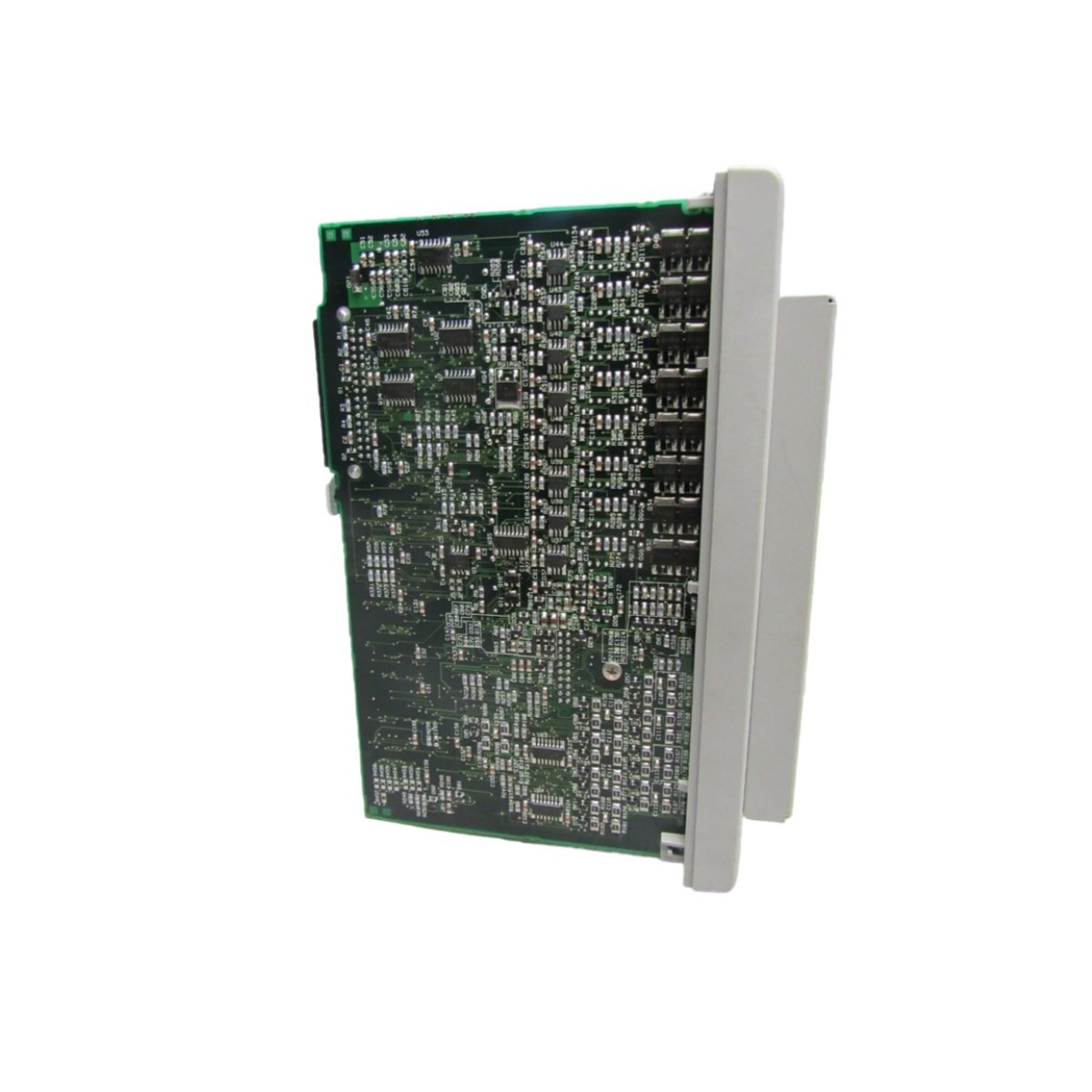

This multipoint analog I/O module delivers high-density signal conversion for Yokogawa Centum VP systems. The AMC80 handles both analog input and output functions in a single compact unit. It converts field sensor signals into digital data for the host controller. Process engineers choose this module for its exceptional channel density and accuracy. Its robust design ensures reliable operation in continuous process applications.
Technical Specifications Summary
| Parameter | Specification |
|---|---|
| Analog Input Channels | 16 differential channels |
| Analog Input Types | 4-20 mA, 0-10 V, or 1-5 V (channel-configurable) |
| Input Resolution | 15-bit for voltage inputs, 14-bit for current inputs |
| Input Accuracy | ±0.1% of span at 25 °C |
| Analog Output Channels | 8 single-ended channels |
| Analog Output Types | 4-20 mA or 0-10 V (software-selectable) |
| Output Resolution | 12-bit |
| Output Accuracy | ±0.2% of span at 25 °C |
| Input Impedance | 250 Ω (current), >10 MΩ (voltage) |
| Output Load | 0-600 Ω (current), >2 kΩ (voltage) |
| Scan Rate | 100 ms for all 16 input channels |
| Update Rate | 50 ms for all 8 output channels |
| Isolation | 1500 V RMS between field and logic |
| Diagnostics | Input open-circuit detection, output fault monitoring |
| LED Indicators | Module power, input/output status |
| Dimensions (H x W x D) | 130 mm x 40 mm x 120 mm |
| Weight | 0.4 kg |
| Power Consumption | 5 W from +5 V DC backplane |
| Field Power Required | 24 V DC external supply |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 10% to 90% non-condensing |
High-Density Analog Input Architecture
The module features 16 differential analog input channels for versatile field signal acquisition. Each channel independently accepts 4-20 mA, 0-10 V, or 1-5 V signals. The AMC80 configures input types through software without hardware changes. This flexibility accommodates various sensor types like pressure, temperature, and flow transmitters. Voltage inputs achieve 15-bit resolution for exceptional measurement precision. Current inputs deliver 14-bit resolution suitable for most process applications. Input impedance ensures proper signal loading: 250 ohms for current loops and over 10 megohms for voltage inputs. This architecture maintains signal integrity across all channels.
Analog Output Capabilities and Performance
The module includes 8 single-ended analog output channels for actuator control. Each channel provides either 4-20 mA current or 0-10 V voltage outputs. Users select the output type through software configuration conveniently. Current outputs drive loads from 0 to 600 ohms for typical valve positioners. Voltage outputs require a minimum load of 2 kilohms for stable operation. Output resolution reaches 12 bits for smooth and precise control signals. Accuracy holds within ±0.2% of span at 25 degrees Celsius. The AMC80 updates all output channels every 50 milliseconds for responsive control.
Signal Conversion and Processing Performance
The module processes analog signals with high speed and accuracy simultaneously. It scans all 16 input channels completely within 100 milliseconds. This scan rate suits most process control applications effectively. The AMC80 performs automatic calibration to compensate for temperature drift. It applies digital filtering to reject 50 and 60 Hz noise from field wiring. The module converts all input signals to engineering units for direct process use. Output channels respond to control commands without noticeable delay. This performance ensures stable and accurate process control.
Diagnostic and Fault Detection Features
The module includes comprehensive diagnostics for reliable system operation. It automatically detects open circuits on current input channels. Input open-circuit detection triggers an alarm for operator notification. The AMC80 monitors output channel faults like short circuits and overloads. It reports these faults to the host controller for appropriate action. Diagnostic LEDs on the front panel indicate channel status clearly. Users can monitor individual channels for quick troubleshooting. These features reduce unplanned downtime and maintenance effort significantly.
Physical Design and Installation Requirements
The module features a compact form factor for efficient cabinet space utilization. It measures 130 millimeters high, 40 millimeters wide, and 120 millimeters deep. The unit weighs 0.4 kilograms for straightforward handling during installation. Power consumption reaches 5 watts from the +5 V DC backplane supply. The module requires an external 24 V DC field power supply for operation. A removable terminal block accepts 22-14 AWG wire for field connections. Installation requires inserting the module into the rack and connecting field wiring.
Environmental Specifications and Operational Reliability
Process environments demand stable operation under varying thermal conditions. The AMC80 operates reliably from -10 °C to +55 °C ambient temperature. Storage conditions extend from -40 °C to 85 °C for shipping protection. Humidity tolerance covers 10% to 90% without condensation affecting circuits. The module includes transient suppression on all field connections. Conformal coating protects circuit boards from moisture and airborne contaminants. These features ensure long-term reliability in continuous process applications.
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 130 × 40 × 120 mm |
