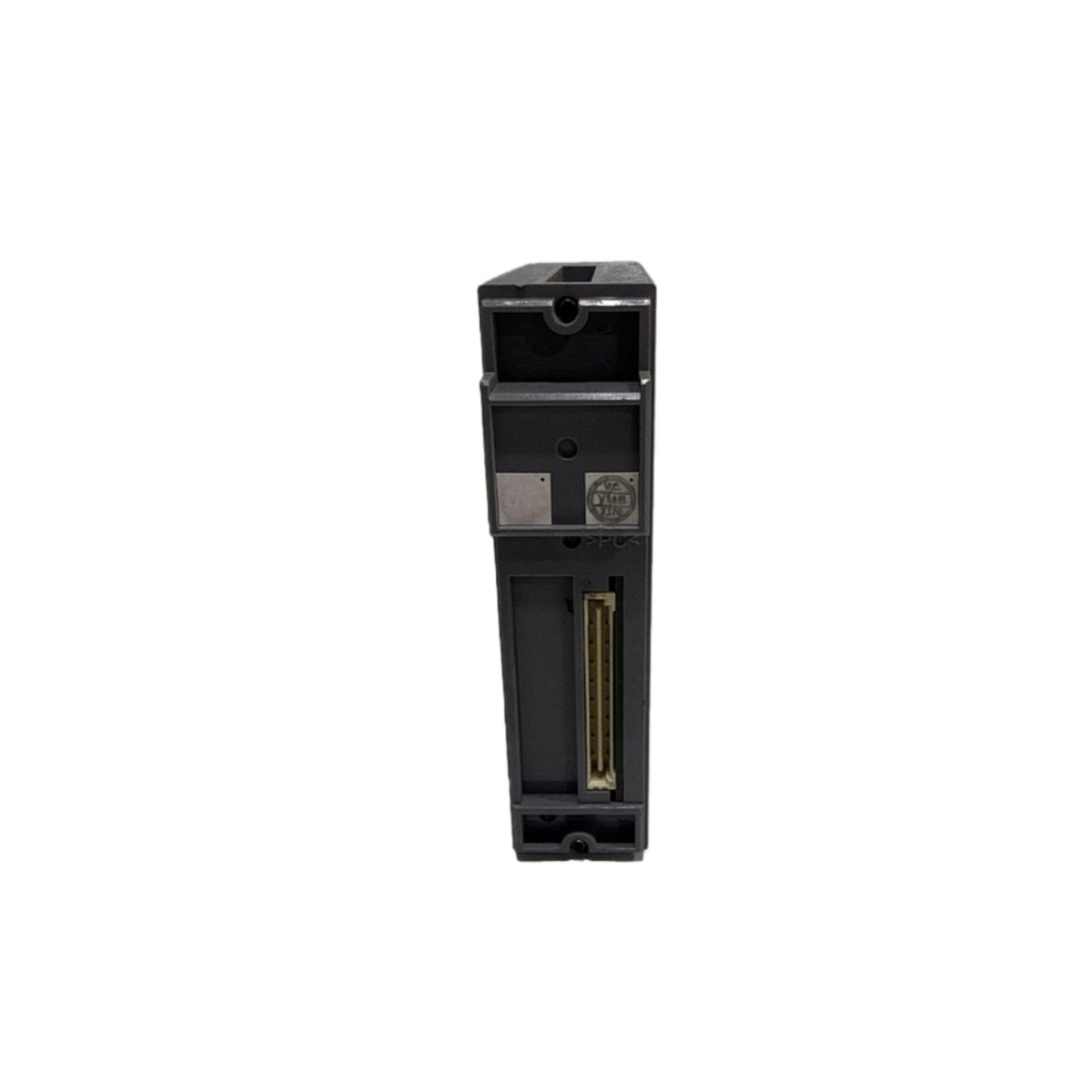

This communication module provides advanced network connectivity for Yokogawa distributed control systems. It integrates seamlessly into the Yokogawa CENTUM and ProSafe-RS DCS platforms. The unit enables high-speed data exchange between control systems and plant networks. Users can integrate process data with enterprise systems for comprehensive plant-wide visibility.

Communication Interface and Network Protocols

This module implements standard network protocols for robust communication performance. It supports TCP/IP, UDP/IP, and other industrial protocols. The unit provides high-speed data transmission for time-critical applications. Users can connect to plant-wide networks, MES, and remote monitoring stations. This interface ensures seamless data flow between control and business systems.

System Integration and Network Services

The ALP111 provides comprehensive network services for DCS integration. It includes a built-in web server for remote system monitoring and configuration. The module also supports FTP for file transfers and data logging. Users can access system status and diagnostic information through standard web browsers. This connectivity enables efficient remote operations and maintenance activities.

Data Exchange and Enterprise Connectivity

This module enables seamless data exchange between CENTUM DCS and enterprise IT systems. It supports OPC and other industry-standard data communication protocols. The unit provides real-time process data to manufacturing execution systems (MES). Users can also transfer historical data to higher-level database systems. This integration supports better decision-making and production optimization across the facility.

Configuration and Network Security

Users configure the ALP111 through standard web-based interfaces or engineering software. The module supports IP address assignment via DHCP or static configuration. It includes security features such as password protection and access control. Users can configure firewall settings to protect the control network. These security measures ensure safe and reliable network operation.

Diagnostic Functions and Status Monitoring

Front-panel LEDs provide clear visual feedback on network and module status. A green “Power” LED confirms the presence of supply voltage. A “Link/Activity” LED indicates active network connections and data traffic. A “Status” LED signals module operational health and any communication errors. The module also provides detailed diagnostic data through the engineering software. These diagnostics enable efficient troubleshooting and network management.

Energy Consumption and Environmental Durability

The module draws 200 mA at 5 V DC from the DCS rack power supply. Power dissipation remains below 2.5 W under normal operating conditions. The unit operates reliably between 0 °C and 55 °C ambient temperature. Humidity tolerance spans 10% to 90% without condensation issues. The module carries an IP20 rating for protection against solid objects. This robust design suits oil and gas, chemical processing, and power generation applications.
