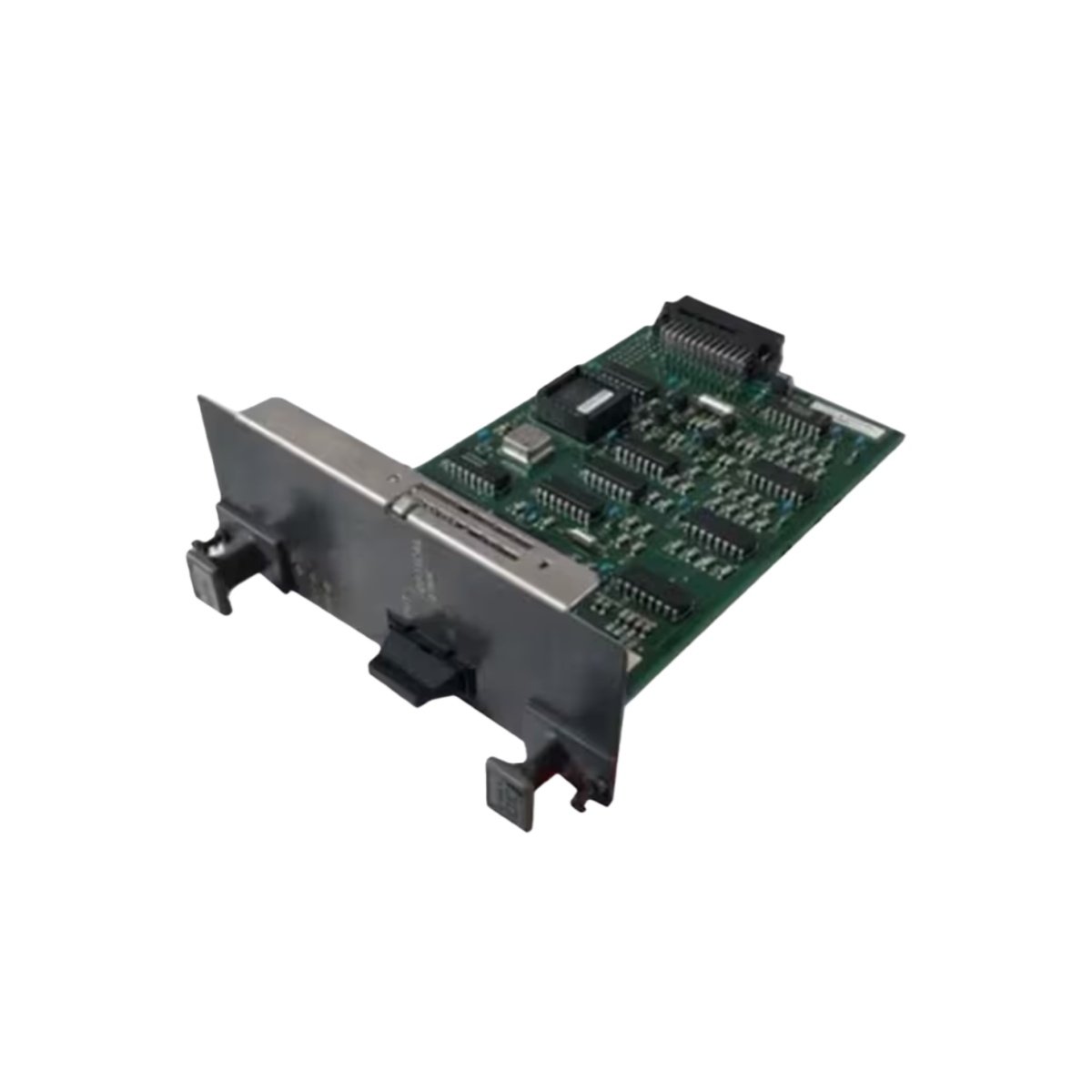

This V-NET coupler module provides seamless communication between field devices and Yokogawa control systems. It integrates seamlessly into the Yokogawa CENTUM and ProSafe-RS distributed control platforms. The unit ensures reliable data exchange across V-NET field networks. Users can connect distributed I/O, intelligent instruments, and remote stations efficiently.

Communication Interface and V-NET Protocol

This coupler module implements the V-NET field communication protocol for robust industrial networking. It provides reliable data transmission over twisted-pair or fiber optic media. The unit supports high-speed communication for time-critical control applications. Users can connect field devices across extended plant areas. This interface ensures deterministic and consistent communication performance.

Network Integration and Data Exchange

The AIP851-A320 manages all data exchange between the V-NET field network and the DCS controller. It maps field data directly to the control system’s memory for real-time processing. The module ensures deterministic data transmission for consistent system performance. Users can integrate various field instruments, I/O modules, and analyzers. This integration simplifies system architecture and reduces engineering complexity.

Field Communication and Device Connectivity

This module connects Yokogawa DCS systems with a wide range of V-NET compatible devices. It supports both digital and analog signal transmission across the V-NET network. Users can connect remote I/O stations, intelligent transmitters, and valve positioners. The unit also interfaces with diagnostic-enabled field devices for predictive maintenance. This comprehensive connectivity ensures unified field device management across the plant.

Installation and System Flexibility

The AIP851-A320 mounts directly into the Yokogawa DCS rack with standard module slots. Users can install the unit without special tools or additional hardware. The compact form factor fits both new and existing DCS installations. The module supports various network topologies including daisy-chain, bus, and star configurations. This flexibility accommodates diverse plant layouts and expansion requirements.

Diagnostic Functions and Status Monitoring

Front-panel LEDs provide clear visual feedback on module and network status. A green “Power” LED confirms the presence of supply voltage. A “Run” LED indicates normal communication with the V-NET network. A red “Fault” LED signals communication errors or module malfunctions. The module also provides detailed diagnostic data through the DCS engineering software. These diagnostics enable efficient troubleshooting and preventive maintenance planning.

Energy Consumption and Environmental Durability

The module draws 150 mA at 5 V DC from the DCS rack power supply. Power dissipation remains below 2 W under normal operating conditions. The unit operates reliably between 0 °C and 55 °C ambient temperature. Humidity tolerance spans 10% to 90% without condensation issues. The module carries an IP20 rating for protection against solid objects. This robust design suits oil and gas, chemical processing, and power generation applications.
