Advanced Operator Interface for DCS Environments

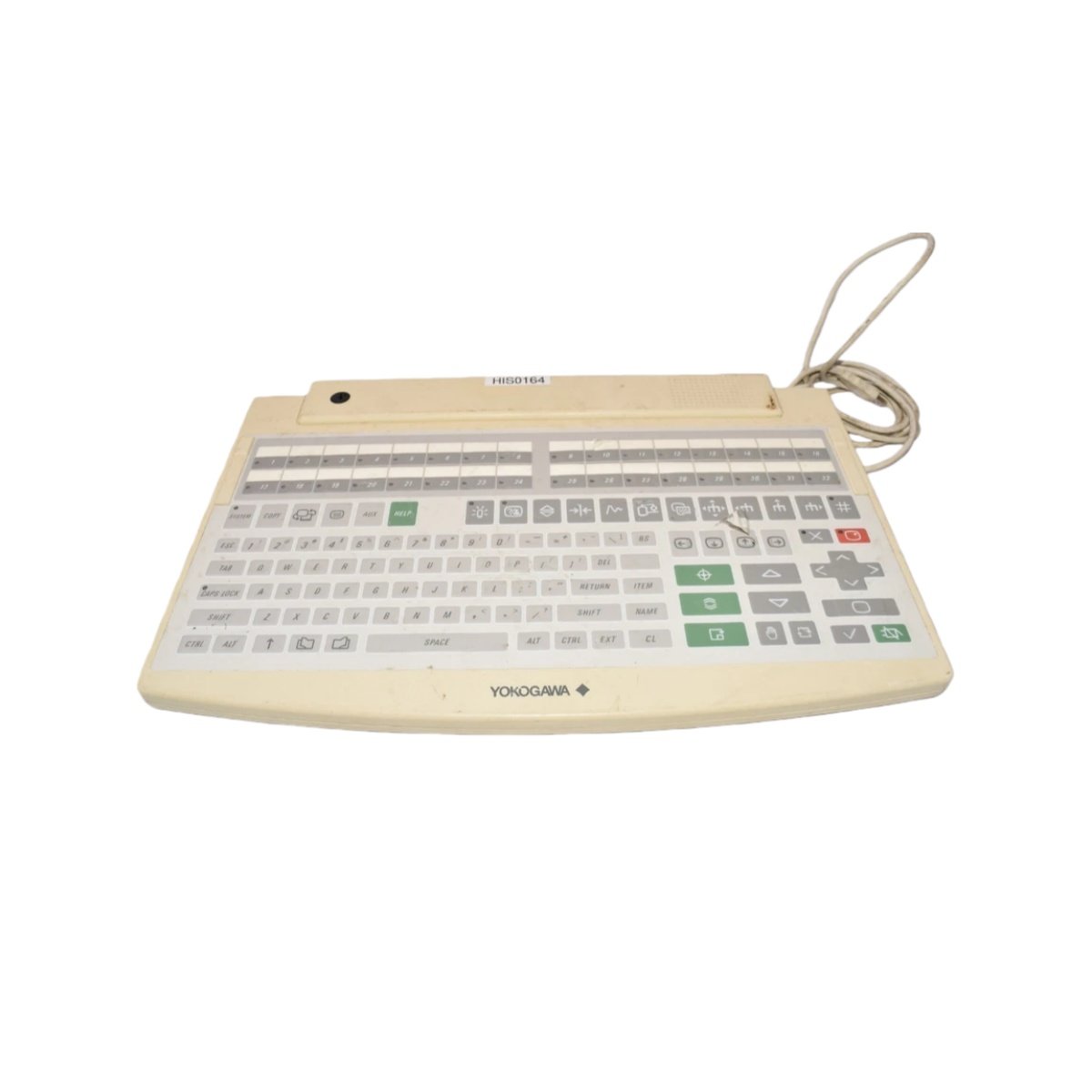

The Yokogawa AIP827-2 serves as a high-performance USB operation keyboard specifically designed for CENTUM VP and CENTUM CS 3000 distributed control systems. This robust keyboard features a flat-panel design with exceptional dust-proof and drip-proof characteristics for demanding control room conditions. It combines a full set of alphanumeric keys with 32 dedicated one-touch function keys, allowing operators to access specific windows or launch application programs instantly. An integrated USB speaker provides clear audible feedback for process alarms and critical system notifications.
Technical Specifications
| Specification | Value |
|---|---|
| Model | AIP827-2 |
| Product Type | USB Operation Keyboard |
| Interface | USB 2.0 (Type A connector) |
| Power Supply | USB bus-powered (5V DC) |
| Power Consumption | 2.5 W maximum |
| Current Consumption | 500 mA maximum |
| Dimensions (W x D x H) | 440 mm x 284 mm x 52 mm (73 mm with feet extended) |
| Weight | Approximately 2.5 kg (including cable) |
| Operating Temperature | 5 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Ambient Humidity | 20% to 80% RH (non-condensing) |
| Protection Rating | IP54 (front panel) |
| Key Life | 10 million actuations per key |
| Electrostatic Protection | ±15 kV (air discharge) / ±8 kV (contact discharge) |
| Color | Frosty White (Munsell No. 2.5Y8.4/1.2) |
Key Design and Software Compatibility
The touch-sensitive keys operate optimally with bare hands and provide tactile feedback for confident operation. This keyboard features 38 standard keys, 32 one-touch keys, and a jog shuttle for intuitive cursor control. Additionally, a 3-position enable switch enhances operator safety during critical control actions. The Yokogawa AIP827-2 requires system software version R3.03 or later for full compatibility with Yokogawa DCS platforms. It connects via a standard USB port, eliminating the need for specialized interface cards or additional drivers.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
