Industrial-Grade Operator Interface

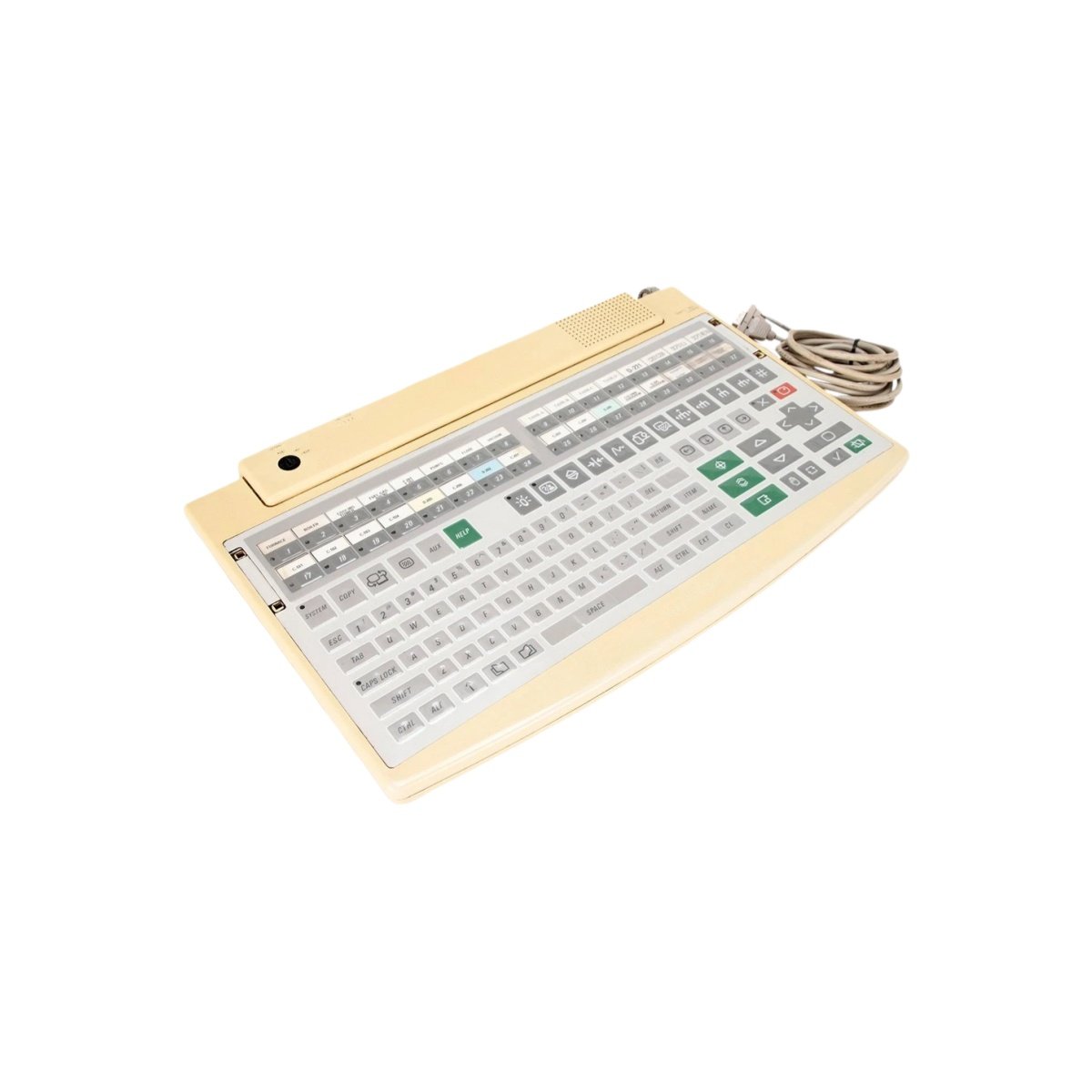

The Yokogawa AIP827-1 functions as a dedicated USB operation keyboard for CENTUM VP and CENTUM CS 3000 distributed control systems . This rugged flat-panel keyboard features a dust-proof and drip-proof construction optimized for control room environments . It combines standard alphanumeric keys with 32 dedicated one-touch function keys, enabling operators to instantly access specific windows or initiate application programs . The integrated USB speaker provides audible feedback for process alarms and system messages directly at the operator station .
Technical Specifications
| Specification | Value |
|---|---|
| Model | AIP827-1 |
| Product Type | USB Operation Keyboard |
| Interface | USB A-type connector |
| Power Supply (AC Adapter) | 100-120 V AC or 220-240 V AC, 50/60 Hz |
| Power Consumption | 20 VA maximum |
| Current Consumption | 1 A maximum |
| Dimensions (W x D x H) | 440 mm x 284 mm x 52 mm (73 mm with feet extended) |
| Weight | Approximately 2.5 kg (including AC adapter) |
| Operating Temperature | 5 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Ambient Humidity | 20% to 80% RH (non-condensing) |
| Protection Rating | IP54 dust and water protection |
| Key Life | 10 million presses |
| ESD Protection | ±15 kV air/contact |
| Color | Frosty White (Munsell No. 2.5Y8.4/1.2) |
Software Compatibility and Installation
The Yokogawa AIP827-1 requires Yokogawa software revision R3.03 or later for full compatibility . This keyboard connects via a standard USB port, providing a plug-and-play setup that simplifies installation . The touch-sensitive keys are designed for use with bare hands, and they may not respond accurately with heavy industrial gloves . Only one AIP827-1 operation keyboard can operate per desktop Human Interface Station . This USB keyboard supports all operating systems and requires no additional drivers .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
