Technical Overview

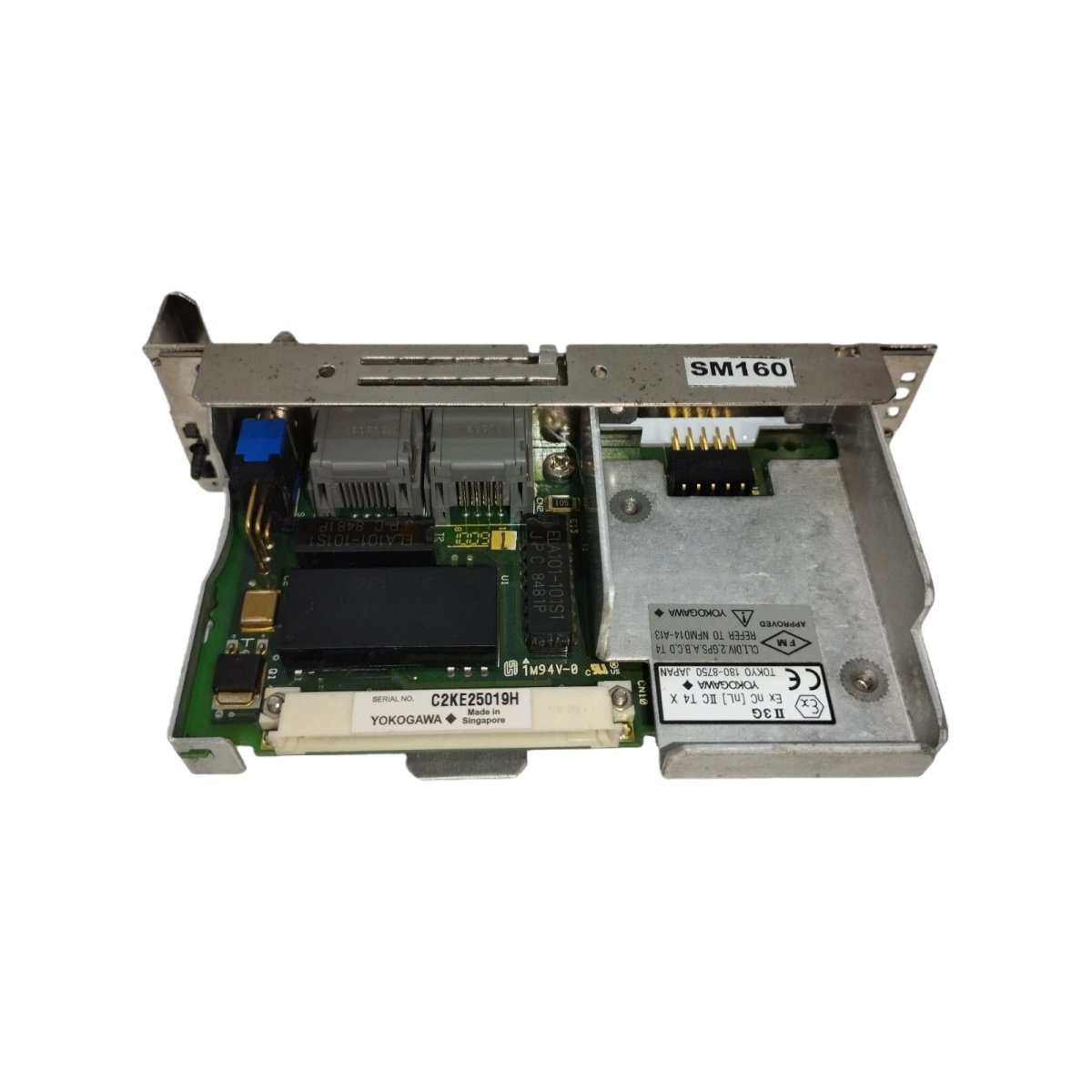

The Yokogawa AIP504-13 S1 serves as a dedicated V-Net coupler module within the CENTUM VP and CS 3000 distributed control systems. This unit installs in the safety control unit and positions itself between the processor module and the V-Net cable . It performs essential signal isolation and level conversion functions to ensure reliable data transmission . The V-Net network operates as a high-speed, deterministic communication bus specifically designed for process control applications . This coupler module supports dual-redundant configurations, with two units typically installed for Bus 1 and Bus 2 paths .
Connectivity and Physical Specifications
The module features a V-Net branch connector for 10BASE-2 coaxial cable connections and a modular connector for the coupler cable to the processor module . A communication switch allows operators to enable or disable bus connectivity to the processor . The unit includes LED indicators for power, communication status, and fault conditions, enabling rapid diagnostics.
| Specification | Value |
|---|---|
| Model | AIP504-13 S1 |
| Type | V-Net Coupler Module |
| Communication Protocol | V-Net (Yokogawa proprietary) |
| Physical Layer | 10BASE-2 (coaxial) |
| Data Transfer Rate | 10 Mbps |
| Power Supply | 24 V DC nominal (18-32 V DC range) |
| Power Consumption | 5 W maximum |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Dimensions | 10.2 cm x 5.1 cm x 15.2 cm |
| Weight | Approx. 0.3 kg |
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
