Technical Overview

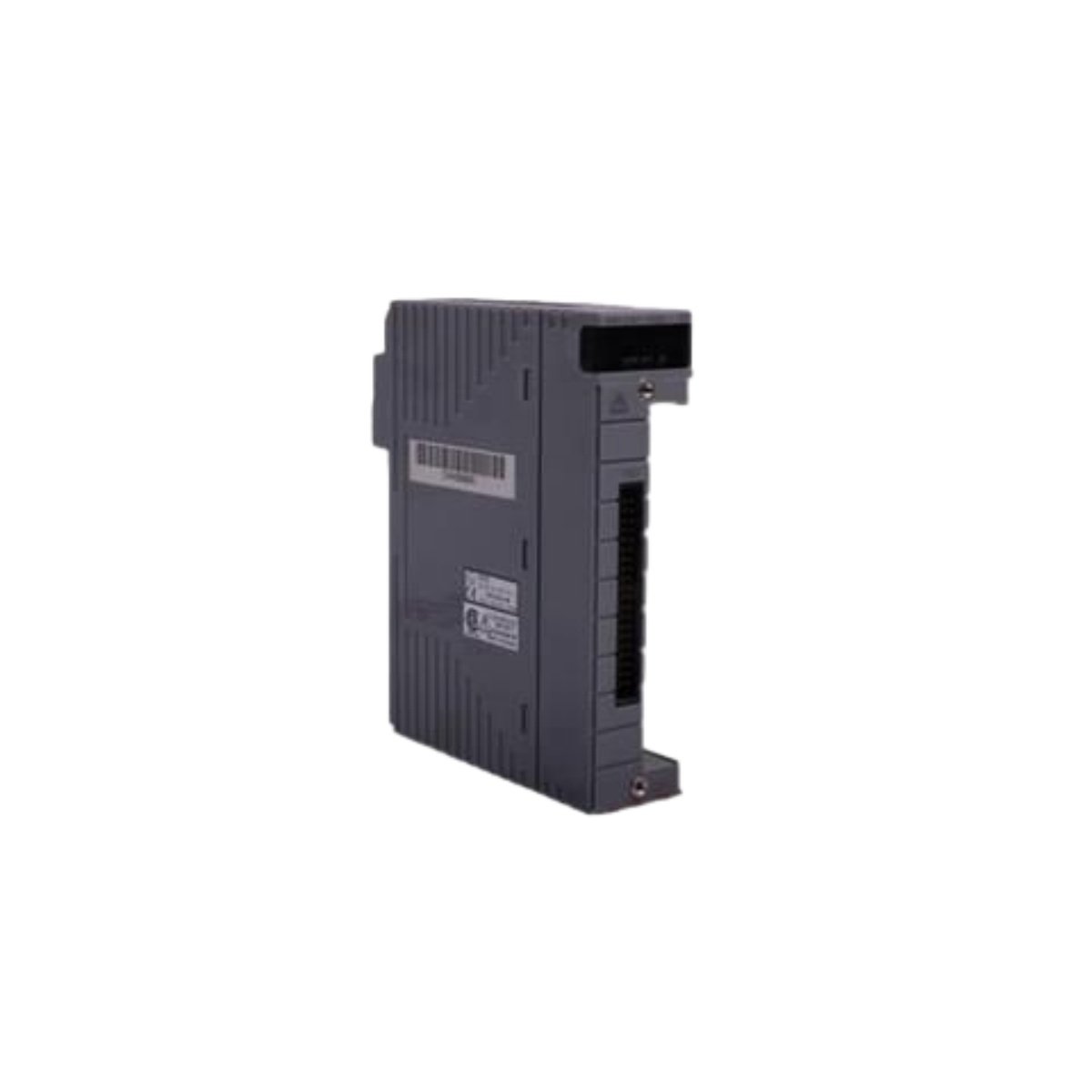

The Yokogawa AFS40S/AFS40D modules act as high-speed Ethernet communication processors for CENTUM VP and CS 3000 DCS environments. These units establish a vital data link between the Field Control Unit and external subsystems, such as PLCs, supervisory computers, and plant management networks. By offloading communication tasks from the main control processor, they ensure deterministic control performance and robust data throughput. The single AFS40S/AFS40D serves standard network paths, while the duplexed AFS40D supports redundant configurations for critical processes.
Hardware Specifications
Both modules feature a compact footprint of 100 mm (W) x 100 mm (H) x 30 mm (D), optimizing cabinet space. They weigh approximately 0.2 kg, making them lightweight and easy to handle during installation. A standard RJ45 port provides the physical network connection, and the modules support communication speeds up to 1 Gbps.
| Specification | Value |
|---|---|
| Model | AFS40S (Single) / AFS40D (Duplexed) |
| Communication Speed | Up to 1 Gbps |
| Port Type | RJ45 |
| Dimensions (W x H x D) | 100 mm x 100 mm x 30 mm |
| Weight | 0.2 kg |
| Protocol Support | Ethernet/IP, Modbus TCP, PROFINET IO, EtherCAT |
Protocol Compatibility and Integration
These modules support a wide range of industrial protocols, including Ethernet/IP, Modbus TCP, PROFINET IO, and EtherCAT. This broad compatibility ensures seamless integration with diverse third-party devices and legacy systems. They mount directly onto field control units, ESB bus node units, and ER bus node units. Furthermore, their real-time diagnostic LEDs provide instant status feedback, allowing maintenance teams to quickly identify and resolve network issues.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
