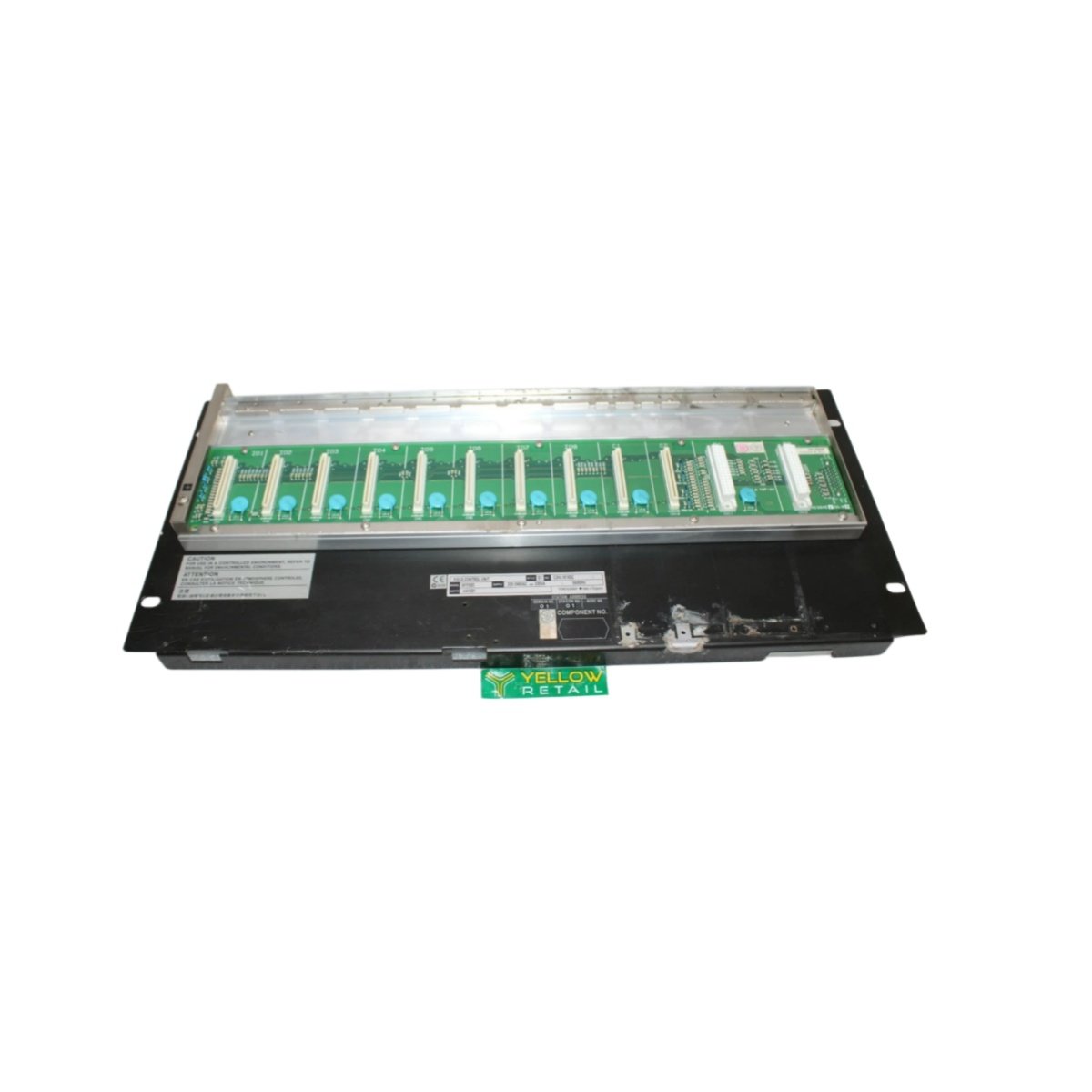

Overview of the Yokogawa AFF50D-H41201 DCS Control Module

The AFF50D-H41201 serves as a DCS control module within Yokogawa’s distributed control architecture. This unit manages field signal processing and communicates with the host system continuously. Engineers install it in process plants that demand stable, real-time regulatory control.

Key Technical Specifications of the AFF50D-H41201

The AFF50D-H41201 combines a rugged housing with a dedicated backplane interface. Below you will find the core parameters that define this module’s performance envelope.

Physical Design and Interface Details

The AFF50D-H41201 adopts a compact footprint that fits standard Yokogawa I/O racks. Its dimensions measure 130 mm in length, 100 mm in width, and 25 mm in depth. Moreover, the module weighs roughly 290 grams, which simplifies rack installation and field replacement. The backplane bus connector ensures fast communication with the host controller.

Performance and Signal Processing Capabilities

This module handles eight analog input channels for versatile field connections. The 16-bit A/D conversion delivers high-resolution data acquisition for demanding process loops. Additionally, channel-to-channel isolation prevents signal interference between adjacent inputs. A supercapacitor preserves critical data during brief power interruptions. Consequently, the unit suits applications requiring tight measurement tolerances.

Power and Environmental Considerations

The AFF50D-H41201 operates on a 24 V DC nominal power supply. Power consumption remains approximately 4.5 W during normal operation. The operating temperature range spans 0°C to 55°C for industrial environments. Storage temperature extends from -20°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
