Product Overview

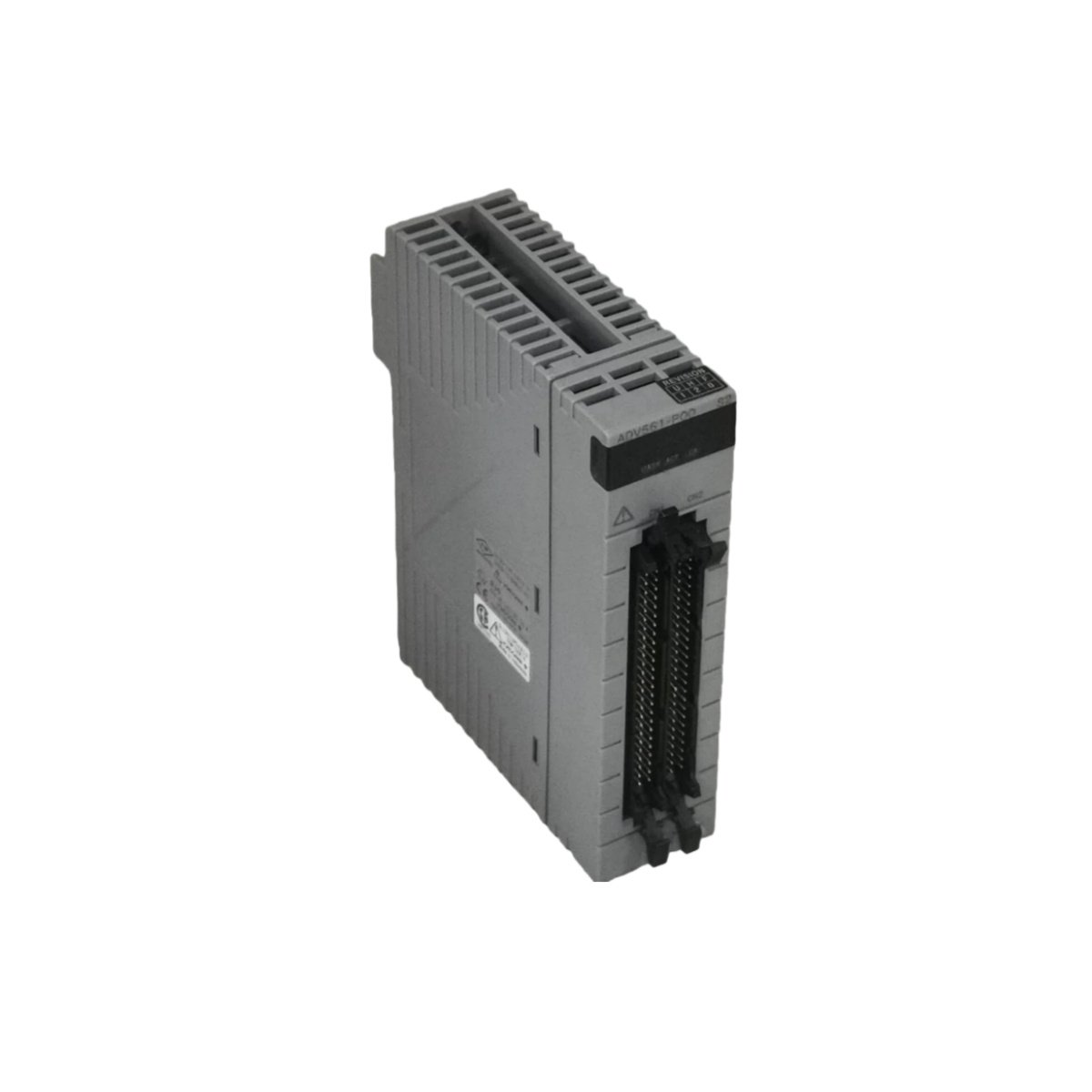

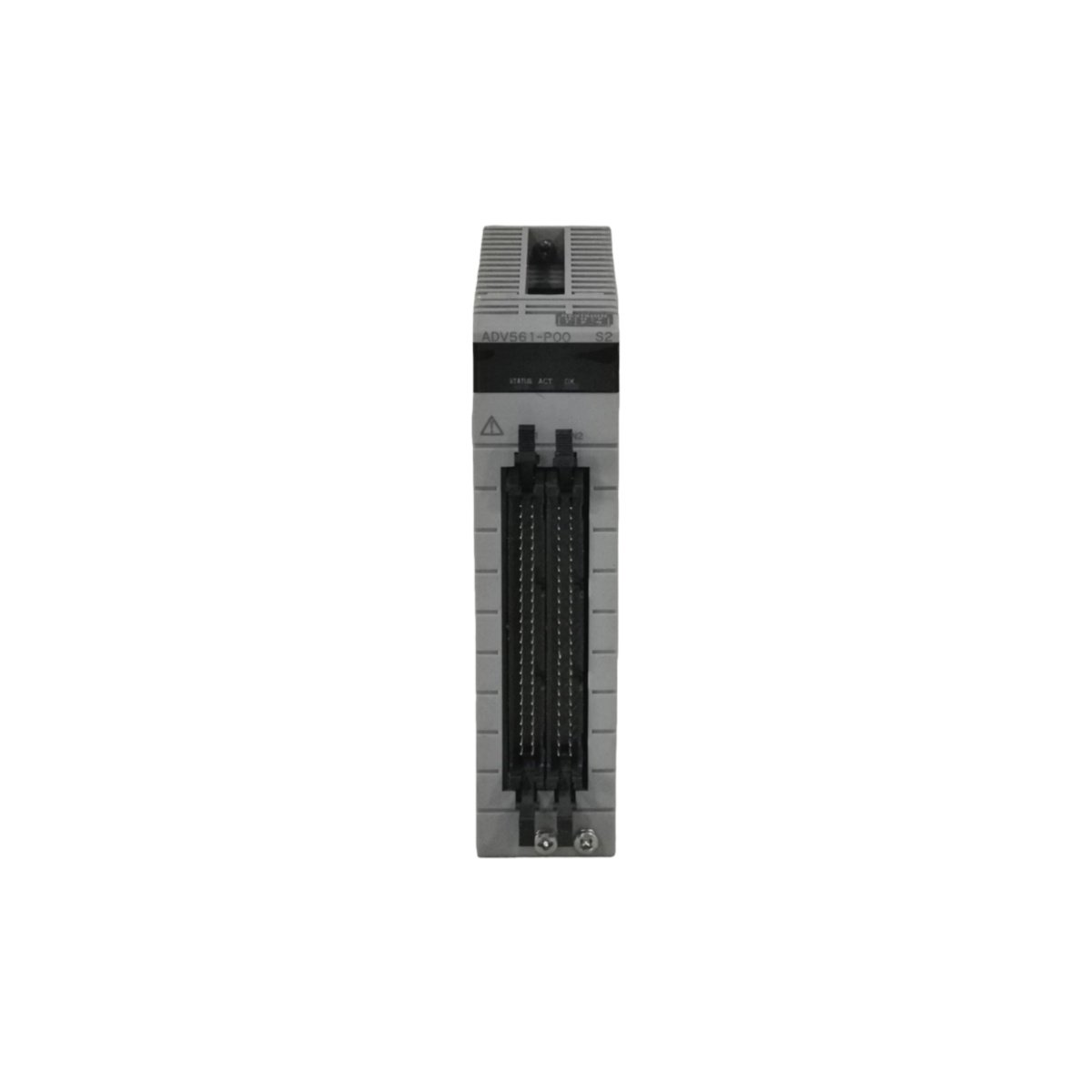

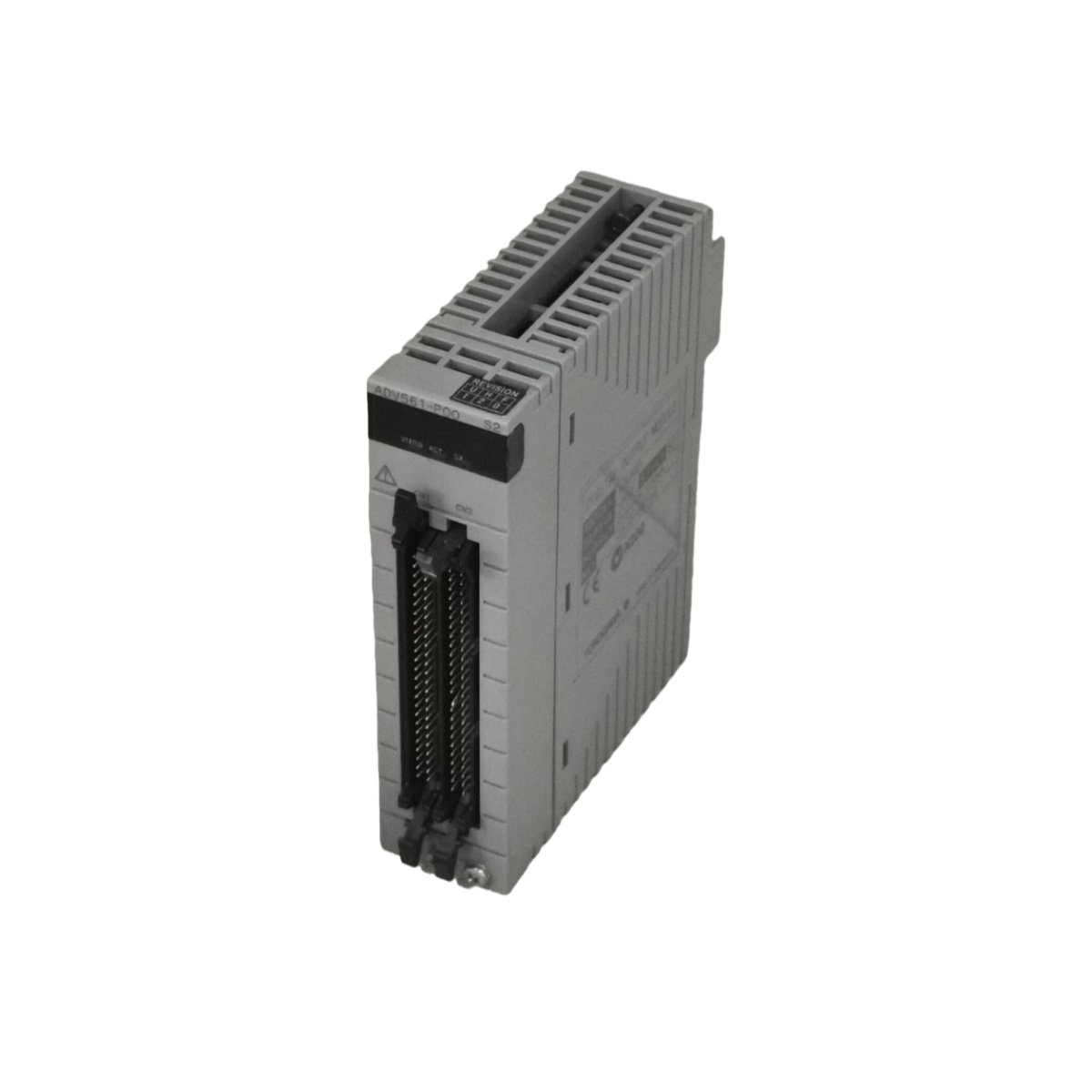

The Yokogawa ADV561-P00 S2 digital output module delivers dependable switching performance for industrial control and distributed automation systems. Moreover, the module combines compact dimensions with stable electrical characteristics, allowing engineers to optimize cabinet layouts efficiently. It supports continuous operation in demanding industrial environments while maintaining accurate digital signal transmission. In addition, the robust hardware design helps reduce maintenance requirements and improves long-term system reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | ADV561-P00 S2 |
| Product Category | Digital Output Module |
| Output Type | Digital Output |
| Number of Output Channels | 16 Channels |
| Rated Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Isolation | Optical isolation between field signals and system circuits |
| Interface | Yokogawa proprietary backplane interface |
| Mounting Method | Rack-mounted |
| Dimensions | Approx. 107.5 × 32.8 × 130 mm |
| Weight | Approx. 0.30 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +75°C |
| Compatible Systems | Yokogawa CENTUM VP and compatible control platforms |
Key Features
The ADV561-P00 S2 provides sixteen independent digital output channels for precise control of relays, contactors, solenoid valves, and status indicators. Furthermore, every output channel delivers consistent switching performance, ensuring stable operation throughout demanding industrial production processes. Engineers can complete installation quickly because the compact module occupies minimal rack space inside control cabinets. Consequently, maintenance teams replace modules efficiently and reduce equipment downtime during scheduled service activities.
The module measures approximately 107.5 × 32.8 × 130 mm and weighs around 0.30 kg, supporting flexible cabinet integration. Additionally, the integrated backplane interface enables reliable communication between the control processor and connected field devices. Optical isolation protects electronic circuits from electrical interference while improving signal integrity across every output channel. Therefore, the module maintains dependable performance even during continuous industrial operation.
Typical Applications
The ADV561-P00 S2 supports reliable digital output control across power generation, petrochemical processing, oil and gas, pharmaceutical manufacturing, and water treatment facilities. Meanwhile, automation engineers select this module for distributed control systems requiring stable output signals and dependable long-term performance. Its consistent switching capability also supports factory automation, process control, and equipment monitoring applications.
Advantages
- Supports 16 independent digital output channels.
- Delivers reliable 24 V DC output performance.
- Compact dimensions simplify control cabinet installation.
- Optical isolation improves electrical protection and signal stability.
- Lightweight design enables convenient maintenance and replacement.
- Integrates seamlessly with compatible Yokogawa control systems.
- Supports continuous industrial operation with dependable reliability.
Technical Highlights
| Feature | Benefit |
|---|---|
| 16 Output Channels | Controls multiple field devices simultaneously |
| 24 V DC Output | Supports common industrial automation equipment |
| Optical Isolation | Enhances system safety and signal integrity |
| Compact Structure | Saves valuable rack installation space |
| Approx. 0.30 kg Weight | Simplifies installation and maintenance |
| Backplane Communication | Ensures stable system integration |
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
