Product Overview

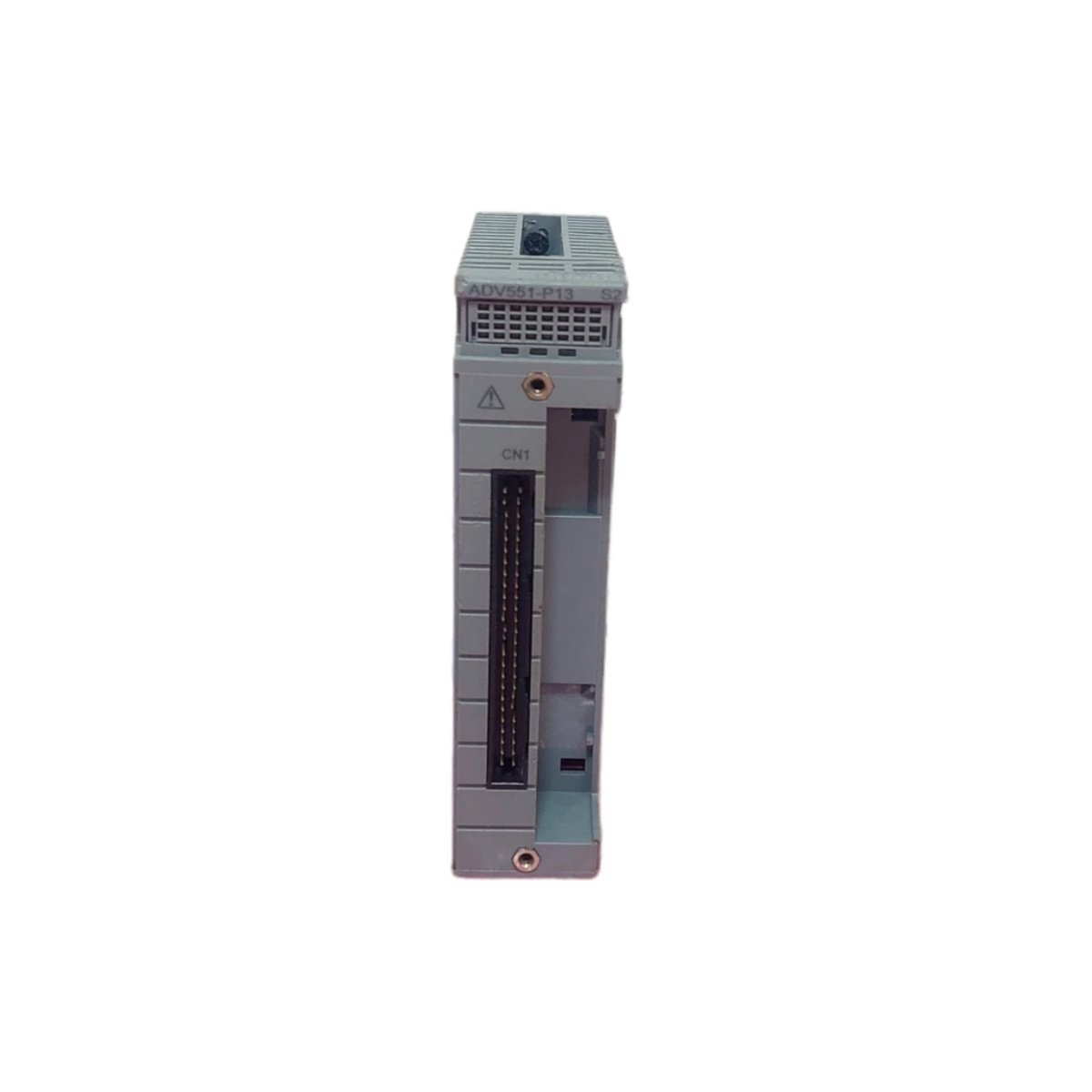

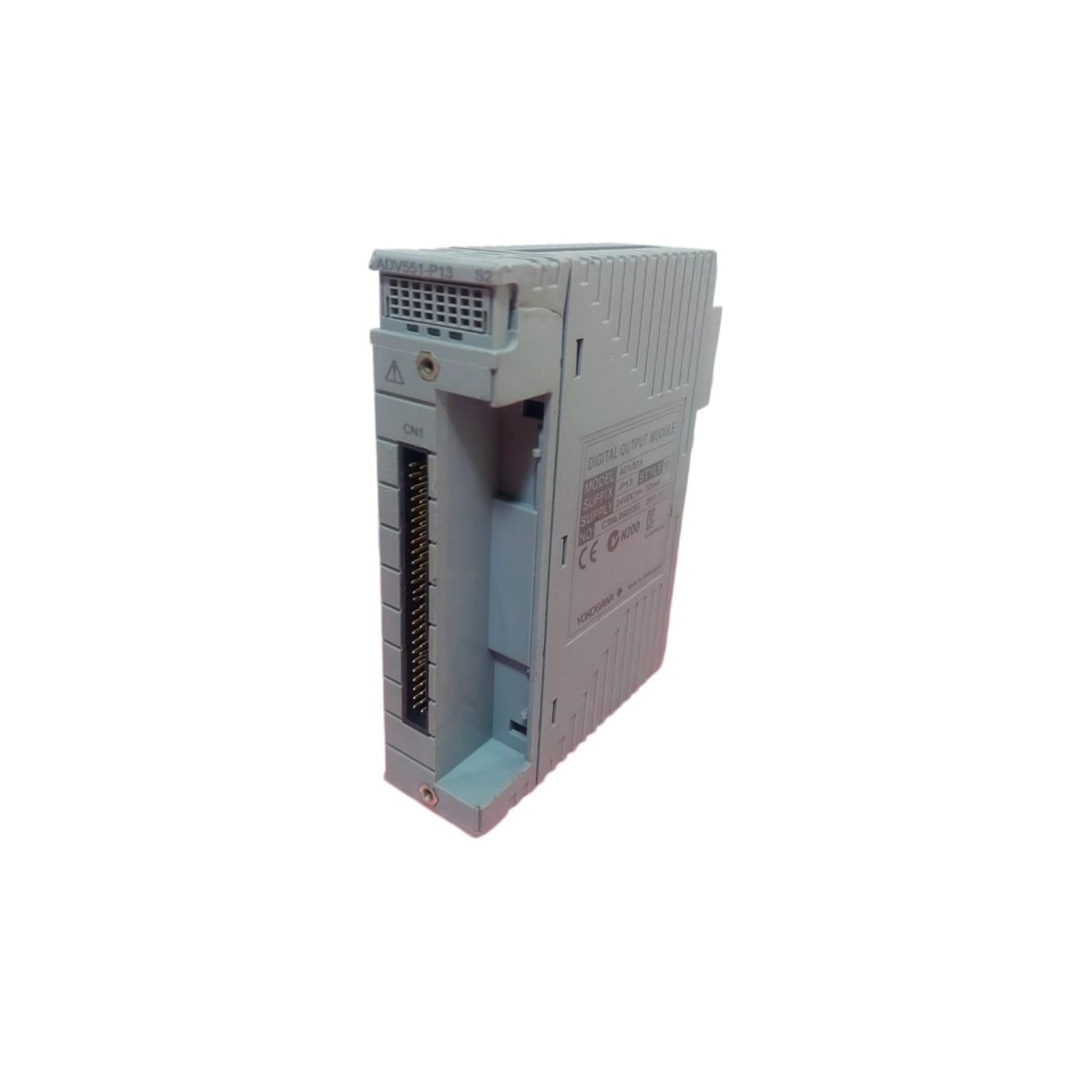

The Yokogawa ADV551-P13 works as a digital output module for Yokogawa distributed control systems. This unit drives relays, solenoids, and indicator lamps from controller commands. Consequently, plant engineers execute sequential and interlock logic with dependable switching.
Technical Specifications
| Parameter | Detail |
|---|---|
| Model | ADV551-P13 |
| Brand | Yokogawa |
| Category | Digital Output Module |
| Compatible Systems | CENTUM VP, CENTUM CS 3000 |
| Output Channels | 32 digital outputs |
| Output Signal Type | 24 V DC transistor output |
| Output Voltage Range | 20 to 26 V DC |
| Output Current | 0.1 A per channel |
| Response Time | 10 ms maximum |
| Isolation | Channel-to-system isolation |
| Weight | Approximately 0.4 kg |
| Dimensions | 32.8 mm × 107.5 mm × 130 mm |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approximately 4 W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Style | Rack-mounted card |
| Component Count | One module, one terminal block |
| Energy Storage | Not applicable (line-powered module) |
Design and Construction
This module occupies one slot in a standard I/O rack, which conserves cabinet space. Additionally, the front panel carries channel LEDs, so technicians verify output status instantly. The terminal block accepts shielded wiring, which reduces electrical noise. Moreover, the housing shields internal circuits from dust and vibration.
Compatibility and Installation
This card pairs with CENTUM VP controllers and Yokogawa I/O nests. During commissioning, engineers should confirm load ratings, because excessive current damages output transistors. Furthermore, the module supports hot-swap replacement in redundant configurations. The 24 V DC supply keeps cabinet wiring simple and consistent.
Key Benefits
Process plants value this module for its high channel density and fast response. As a result, it controls thirty-two field devices from a single rack slot. This model also provides channel isolation for reliable switching. Ultimately, its dependable performance reduces downtime and maintenance costs.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
