Technical Overview

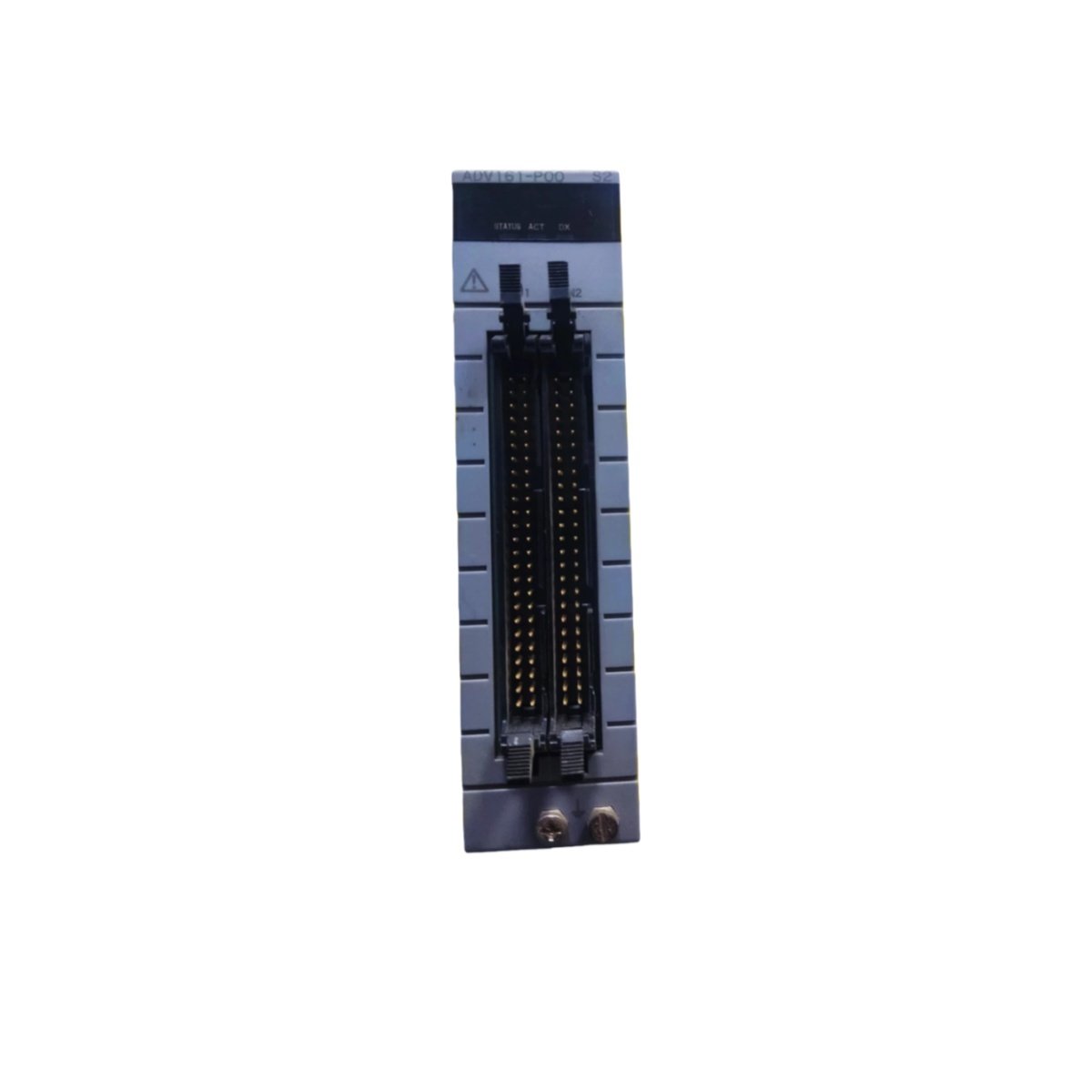

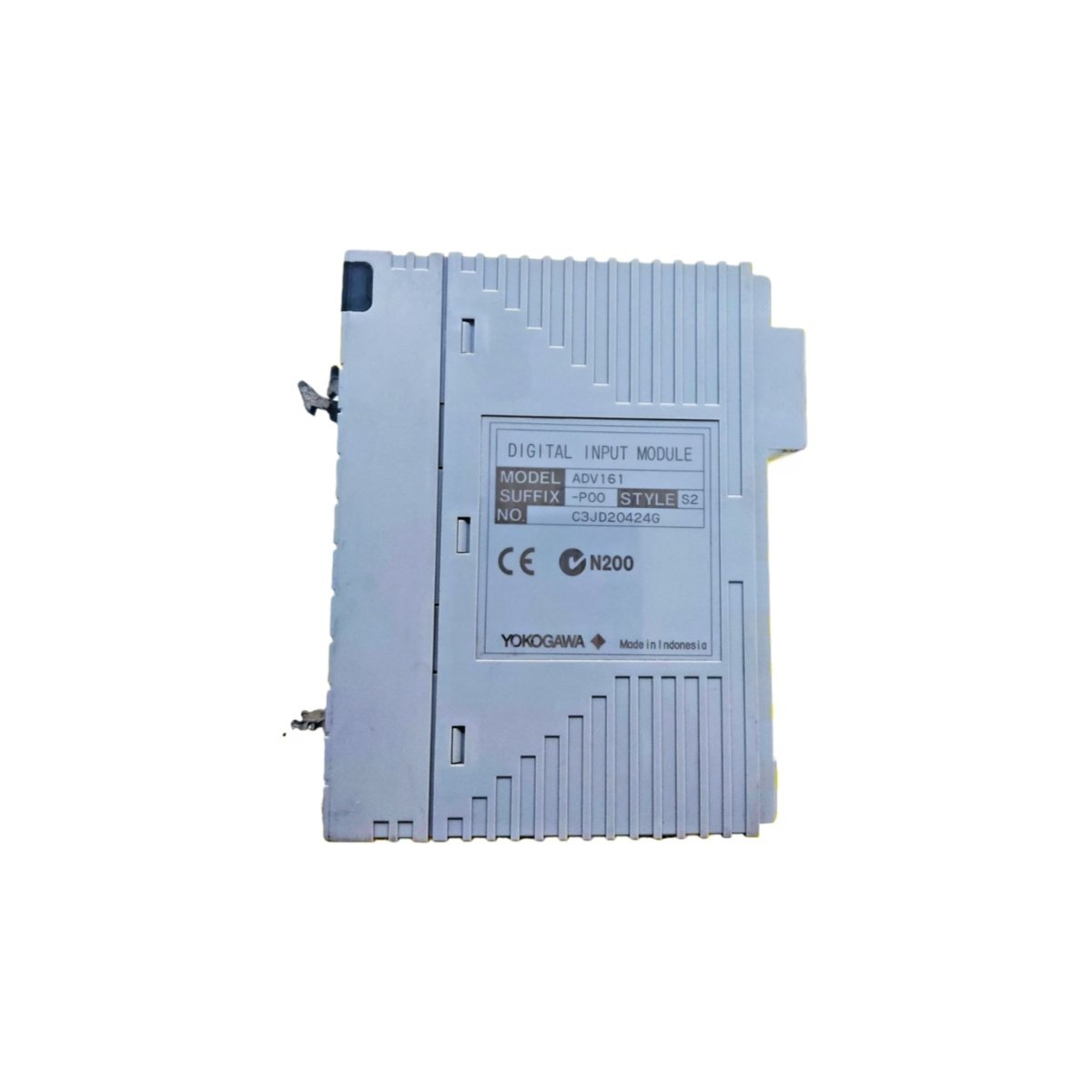

The Yokogawa ADV161 is a 64-channel isolated digital input module specifically engineered for the CENTUM VP and CS 3000 DCS platforms . It captures 24 V DC discrete signals from field-mounted limit switches, valve position indicators, and motor starter feedback contacts . The module organizes its 64 inputs into four isolated groups of 16 channels each, thus providing a practical balance between wiring density and fault tolerance . This high-density design effectively doubles the I/O capacity of a single slot compared to standard 32-channel alternatives.

Key Technical Specifications

Engineering Advantages

The ADV161 supports both status detection and pushbutton edge-counting logic, thus serving diverse application needs . The onboard filtering circuits effectively eliminate contact bounce from mechanical switches and relays in the field . A fast 8 ms response time ensures near-instantaneous status updates for critical interlock sequences and event recording. The 2 kV AC isolation barrier robustly protects the system backplane from high-voltage transients and ground noise . This module also supports dual-redundant configurations for applications requiring maximum system availability . The P50 suffix adds ISA Standard G3 conformal coating, offering crucial protection against corrosive gases in refineries and chemical plants . Furthermore, hot-swap capability permits module replacement without powering down the entire control system .
