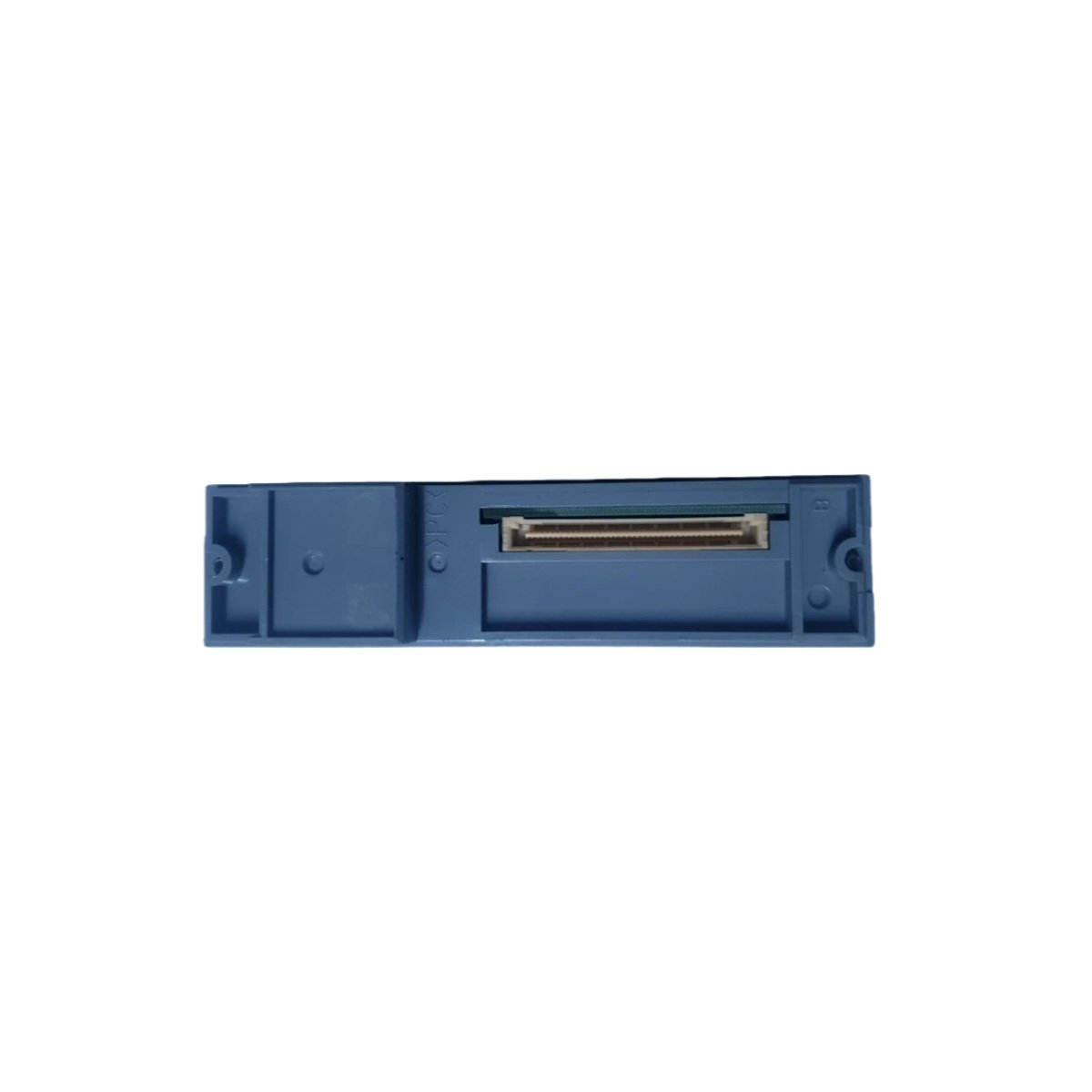

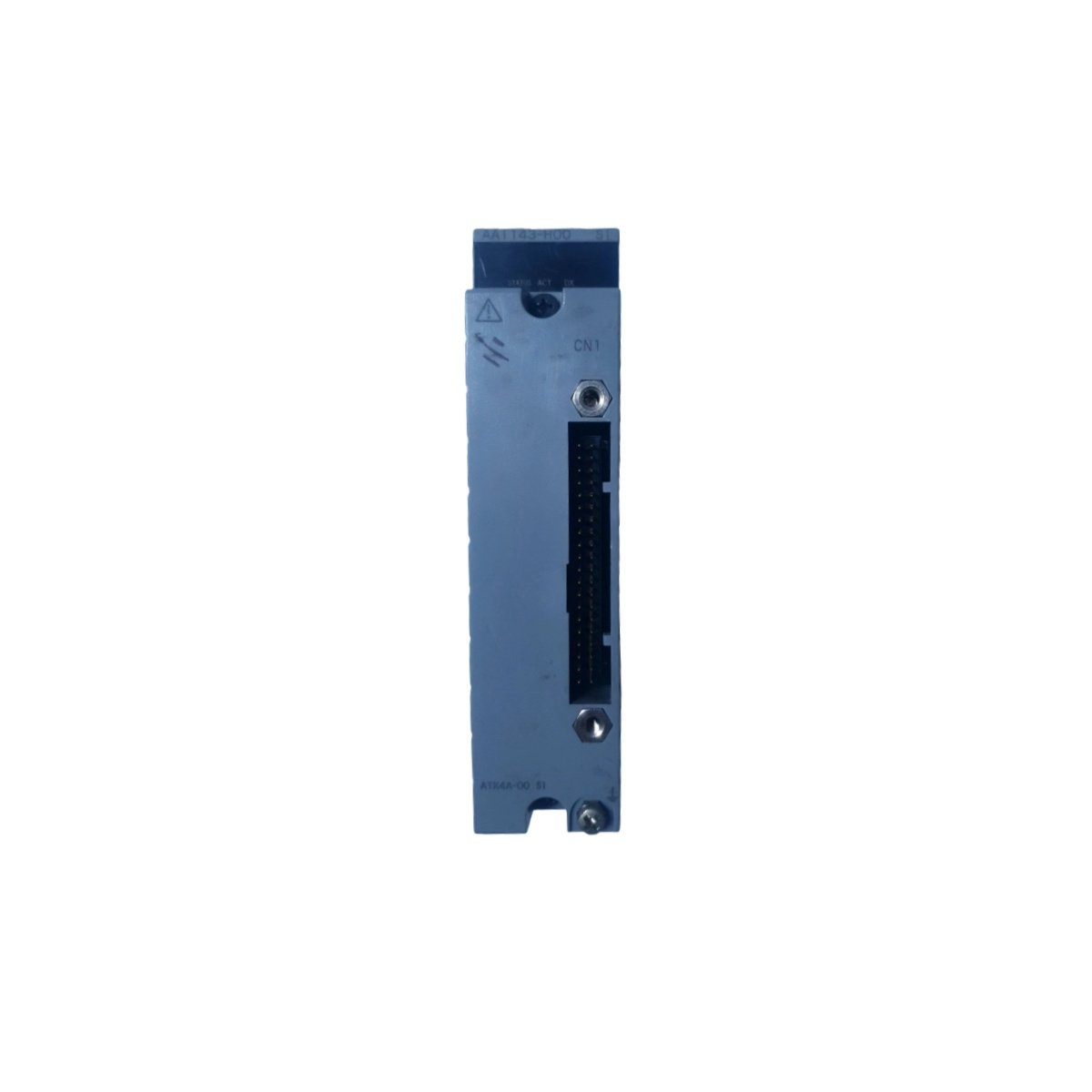

High-Density 32-Channel Input for CENTUM VP Systems
The ADV151-P00 S2 ATD5A-00 digital input module provides 32 isolated DC input channels for Yokogawa CENTUM VP and CS 3000 distributed control systems. This module accepts 24 V DC ON/OFF signals from field devices such as limit switches, pushbuttons, and proximity sensors. It integrates the ATD5A-00 KS cable interface adapter, which consolidates all 32 channels into a single high-density cable connection . Consequently, this design significantly simplifies field wiring and reduces cabinet clutter.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P00 S2 ATD5A-00 |
| Product Type | Digital Input Module |
| Input Channels | 32 (isolated) |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18.0 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Typical Input Current | 4.1 mA ± 20% per channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Response Time (Status Input) | 8 ms or less |
| Pushbutton Detection | Minimum 20 ms pulse width |
| Current Consumption | 500 mA max (5 V DC) |
| Withstanding Voltage (Signal to System) | 2 kV AC |
| Weight | Approx. 0.30 kg |
| Dimensions (W x H x D) | 3.2 x 10.6 x 13.0 cm |
| Operating Temperature | -20°C to +55°C |
| System Compatibility | CENTUM VP, CS 3000 |
| Connection | KS cable via ATD5A-00 adapter |
| Functions | Status input, pushbutton input |
Input Functions and Suffix Code Breakdown
The ADV151-P00 S2 ATD5A-00 module supports two primary input functions. The Status Input function detects standard ON/OFF status with an 8 ms response time . The Pushbutton Input function captures momentary signals from operator panels or switches with a minimum detection time of 20 ms . The suffix codes provide specific configuration details: “-P00” indicates the pushbutton input capability, while “S2” denotes Style 2 hardware with enhanced thermal performance and improved component reliability . The ATD5A-00 is a KS cable interface adapter that mounts directly to the module, enabling all 32 channels to connect via a single cable to the terminal board .
System Integration and Installation
This module mounts into compatible ESB bus node units (ANB10S, ANB10D) or field control units (AFV30S, AFV40D) within the CENTUM VP architecture. The ATD5A-00 adapter simplifies installation by replacing individual wire connections with a consolidated cable interface . Furthermore, the module supports dual-redundant configurations for critical control loops. The S2 hardware revision remains fully backward compatible with Style 1 slots, providing a drop-in replacement with enhanced reliability .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
