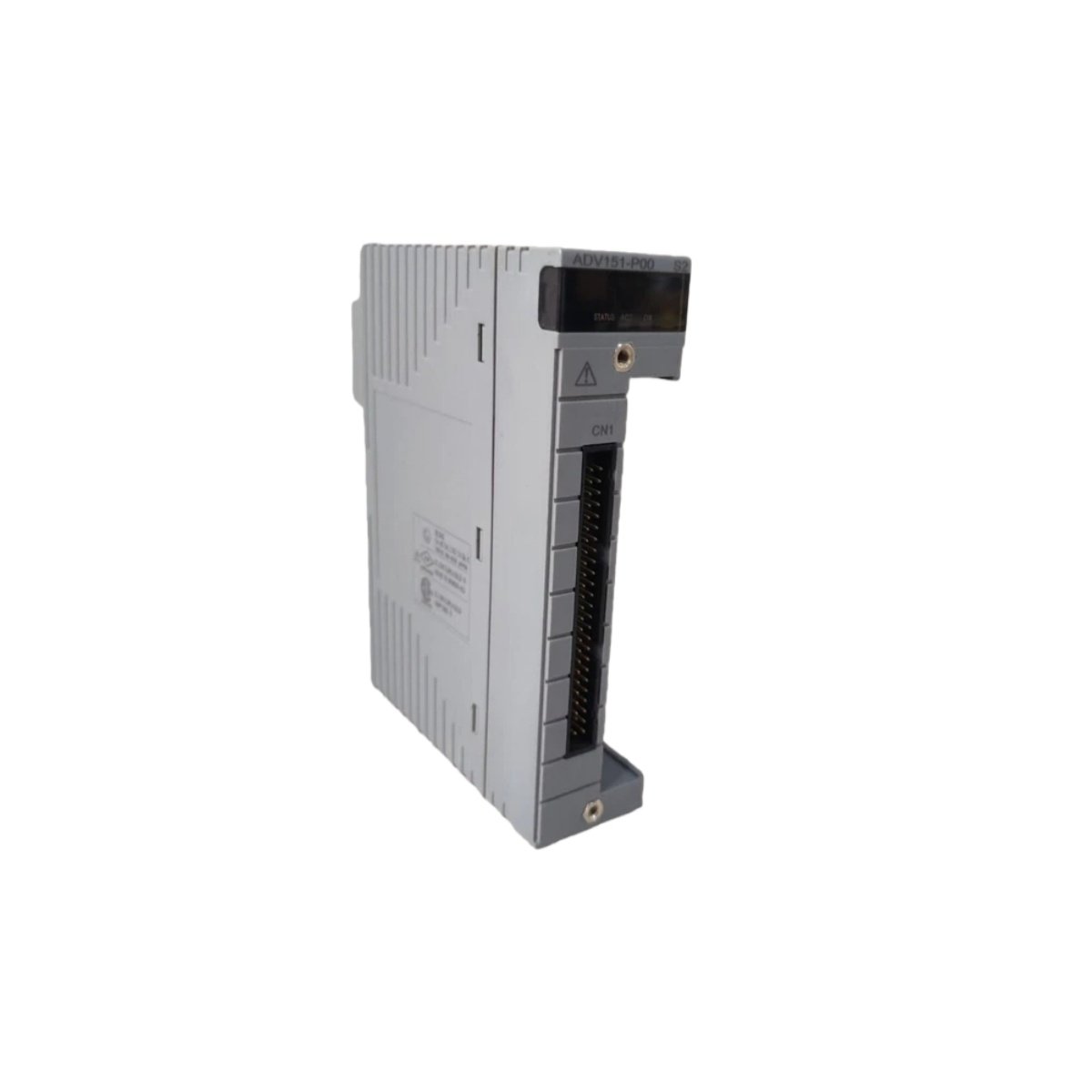

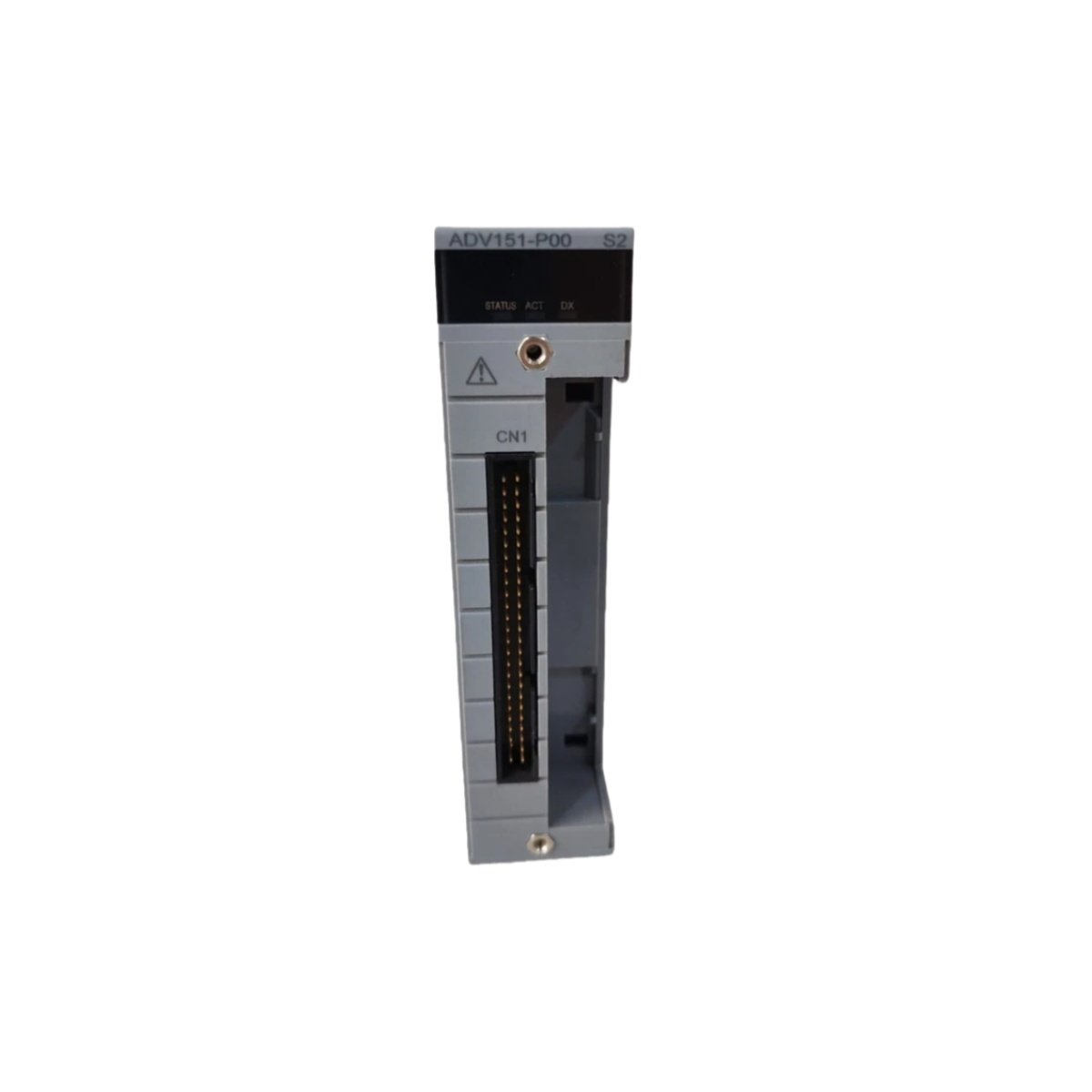

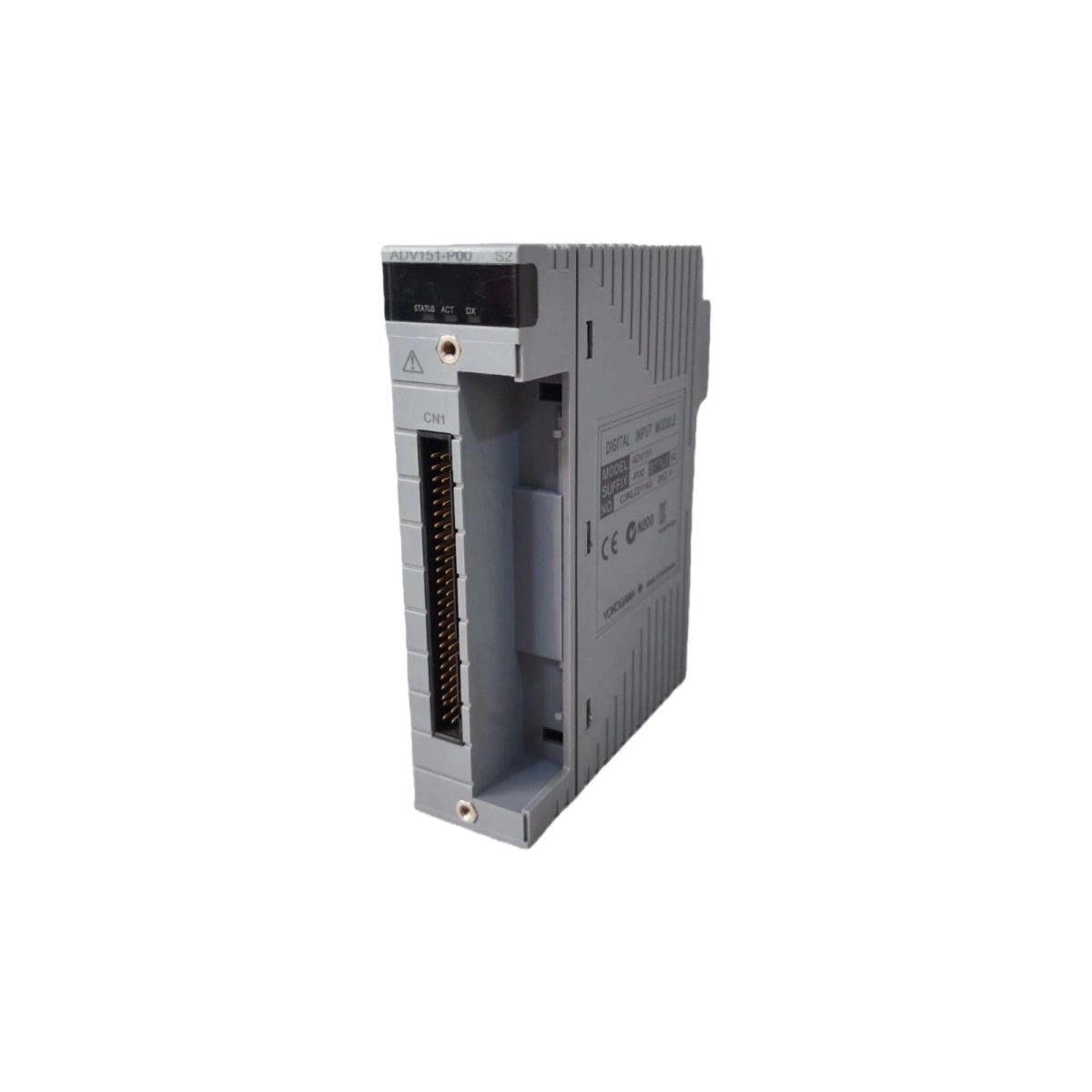

High-Density 32-Channel Input for CENTUM VP Systems
The ADV151-P00 S2 digital input module provides 32 isolated DC input channels for Yokogawa CENTUM VP and CS 3000 distributed control systems. This module accepts 24 V DC ON/OFF signals from field devices such as limit switches, pushbuttons, and proximity sensors. It supports both sink and source input configurations, offering flexibility for various field wiring schemes. Furthermore, this module enables dual-redundant configurations, significantly enhancing system availability for critical control loops .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P00 S2 |
| Product Type | Digital Input Module |
| Input Channels | 32 (isolated) |
| Rated Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (Typical) | 4.1 mA ± 20% per channel |
| Maximum Current Consumption | 500 mA (5 V DC) |
| Withstanding Voltage | 2 kV AC (signal to system) |
| Weight | 0.30 kg |
| Dimensions (W x H x D) | 3.2 x 10.6 x 13.0 cm |
| Operating Temperature | -20°C to +55°C |
| System Compatibility | CENTUM VP, CS 3000 |
| Communication Interface | Modbus master function |
| Functions | Status input, pushbutton input |
Input Functions and Suffix Code Meaning
The ADV151-P00 S2 module supports two primary input functions for versatile field device applications. The Status Input function detects standard ON/OFF status with fast response times. The Pushbutton Input function counts the edges of pushbutton signals, simplifying operator interface integration . The “-P00” suffix code indicates a basic type module with pushbutton input capability . The “S2” suffix denotes a standard configuration with enhanced compatibility for advanced automation systems .
System Integration and Installation
This module mounts into compatible ESB bus node units (ANB10S, ANB10D) or field control units (AFV30S, AFV40D). Users connect field wiring via pressure clamp terminals, a dedicated AKB331 cable, or a MIL connector cable . The module’s robust isolation characteristics ensure reliable signal acquisition in electrically noisy industrial environments. Its lightweight design of 0.30 kg simplifies installation and maintenance procedures .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
