High-Density 32-Channel Input for CENTUM VP Systems

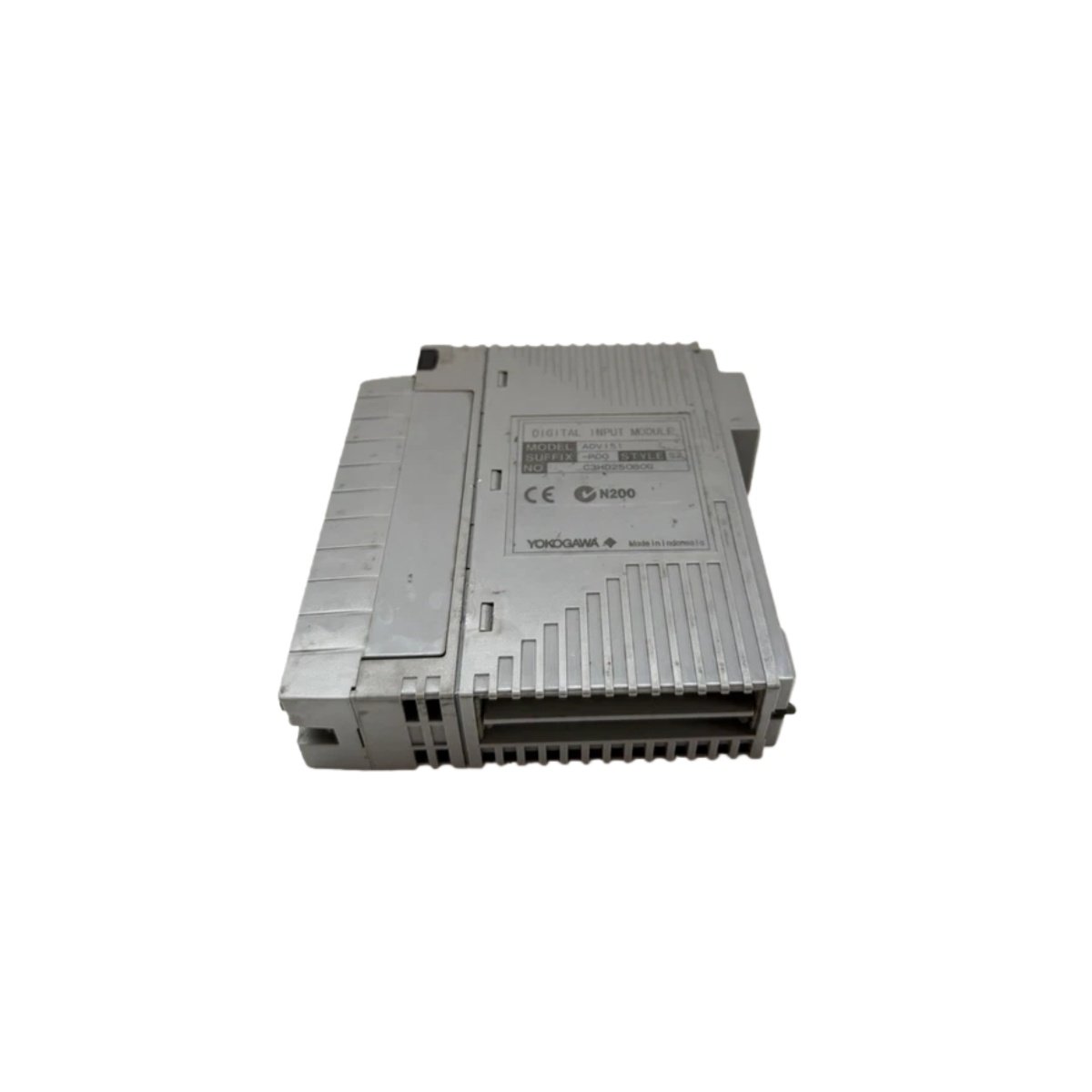

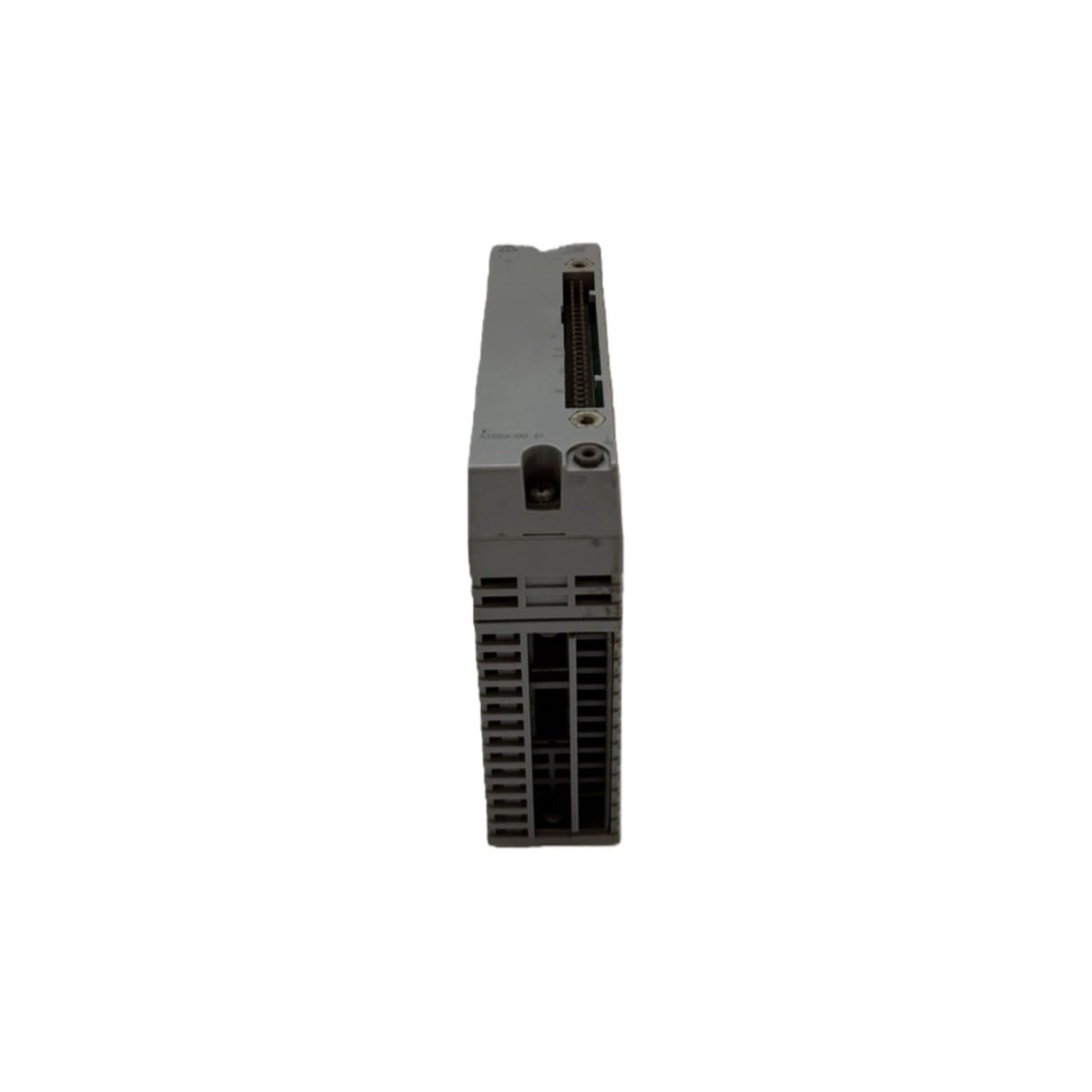

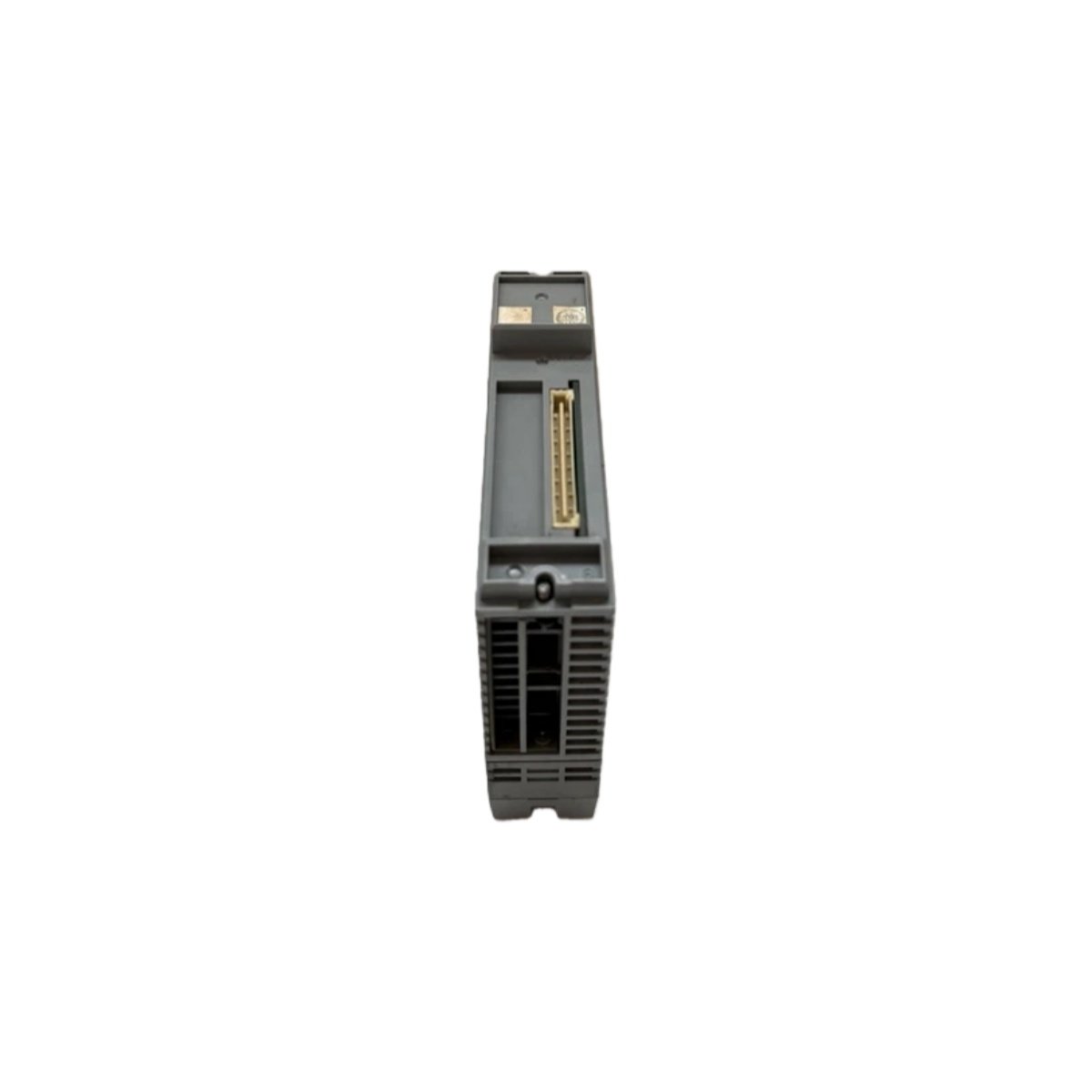

The ADV151-P00/D5A00 digital input module provides 32 isolated DC input channels for Yokogawa CENTUM VP and CS 3000 distributed control systems. This module accepts 24 V DC ON/OFF signals from field devices such as limit switches, pushbuttons, and proximity sensors. The /D5A00 suffix indicates the inclusion of a KS cable interface adapter (model ATD5A-00), which consolidates all 32 channels into a single high-density cable connection . Consequently, this design significantly simplifies field wiring and reduces cabinet clutter.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P00/D5A00 |
| Product Type | Digital Input Module |
| Input Channels | 32 (isolated) |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18.0 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Typical Input Current | 4.1 mA ± 20% per channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Response Time (Status Input) | 8 ms or less |
| Pushbutton Detection | Minimum 20 ms pulse width, 25 Hz max cycle |
| Withstanding Voltage (Signal to System) | 2 kV AC for 1 minute |
| Withstanding Voltage (Between Commons) | 500 V AC for 1 minute (per 16 channels) |
| Current Consumption | 500 mA max (5 V DC) |
| Weight | Approx. 0.30 kg |
| Dimensions (W x H x D) | 32.8 x 130 x 107.5 mm (approx. 3.2 x 10.7 x 13.0 cm) |
| Operating Temperature | -20°C to +70°C |
| System Compatibility | CENTUM VP, CS 3000, ProSafe-RS |
| Connection | KS cable via ATD5A-00 adapter; pressure clamp terminals, AKB331 cable, or MIL connector also compatible |
| Functions | Status input, pushbutton input |
Input Functions and Suffix Code Breakdown
The ADV151-P00/D5A00 module supports two primary input functions for versatile field device applications. The Status Input function detects standard ON/OFF status with an 8 ms response time . The Pushbutton Input function captures momentary signals from operator panels or switches with a minimum detection time of 20 ms and supports up to 25 Hz cycling . The suffix codes provide specific configuration details: “-P” indicates a pressure-clamp terminal connection style, while “0 0” denotes the standard type with basic hardware specification . The “/D5A00” option specifies the KS cable interface adapter (ATD5A-00) for streamlined 32-channel digital transmission .
System Integration and Installation
This module mounts into compatible ESB bus node units (ANB10S, ANB10D) or field control units (AFV30S, AFV40D) within the CENTUM VP architecture . The ATD5A-00 adapter simplifies installation by replacing individual wire connections with a consolidated cable interface . Furthermore, the module supports dual-redundant configurations for critical control loops . The module’s 2 kV AC isolation between field inputs and the system bus protects the controller from voltage transients and electromagnetic interference .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
