This digital input module provides reliable contact status monitoring for Yokogawa CENTUM systems. It captures discrete signals from field devices like switches, pushbuttons, and proximity sensors. We engineered the Yokogawa ADV151-E00 specifically for the CENTUM VP distributed control platform. This module delivers accurate state detection for critical interlock and sequence logic. It ensures your control strategies receive timely and accurate discrete data. Therefore, your process logic executes reliably based on actual field conditions.
Physical Configuration and Rack Integration

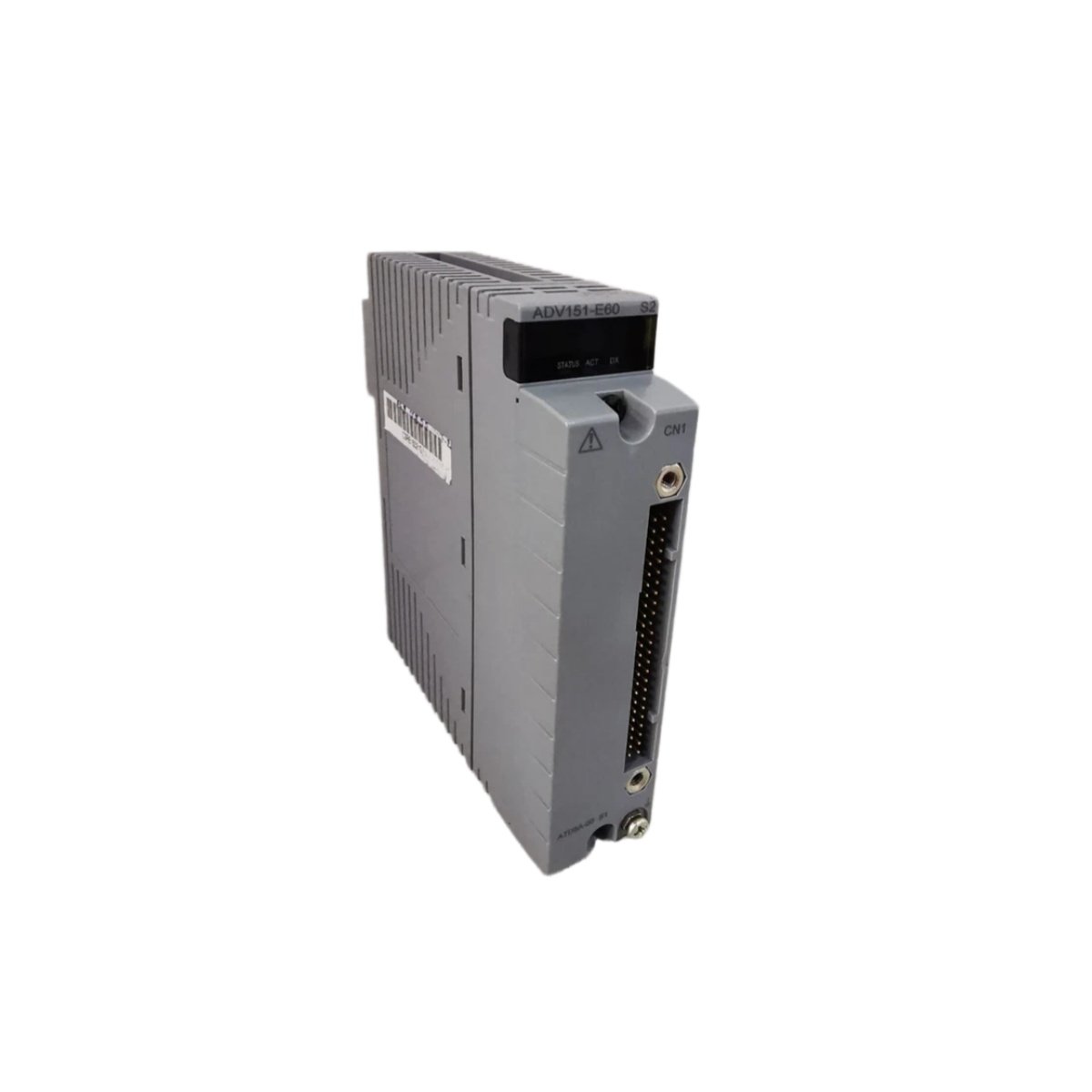

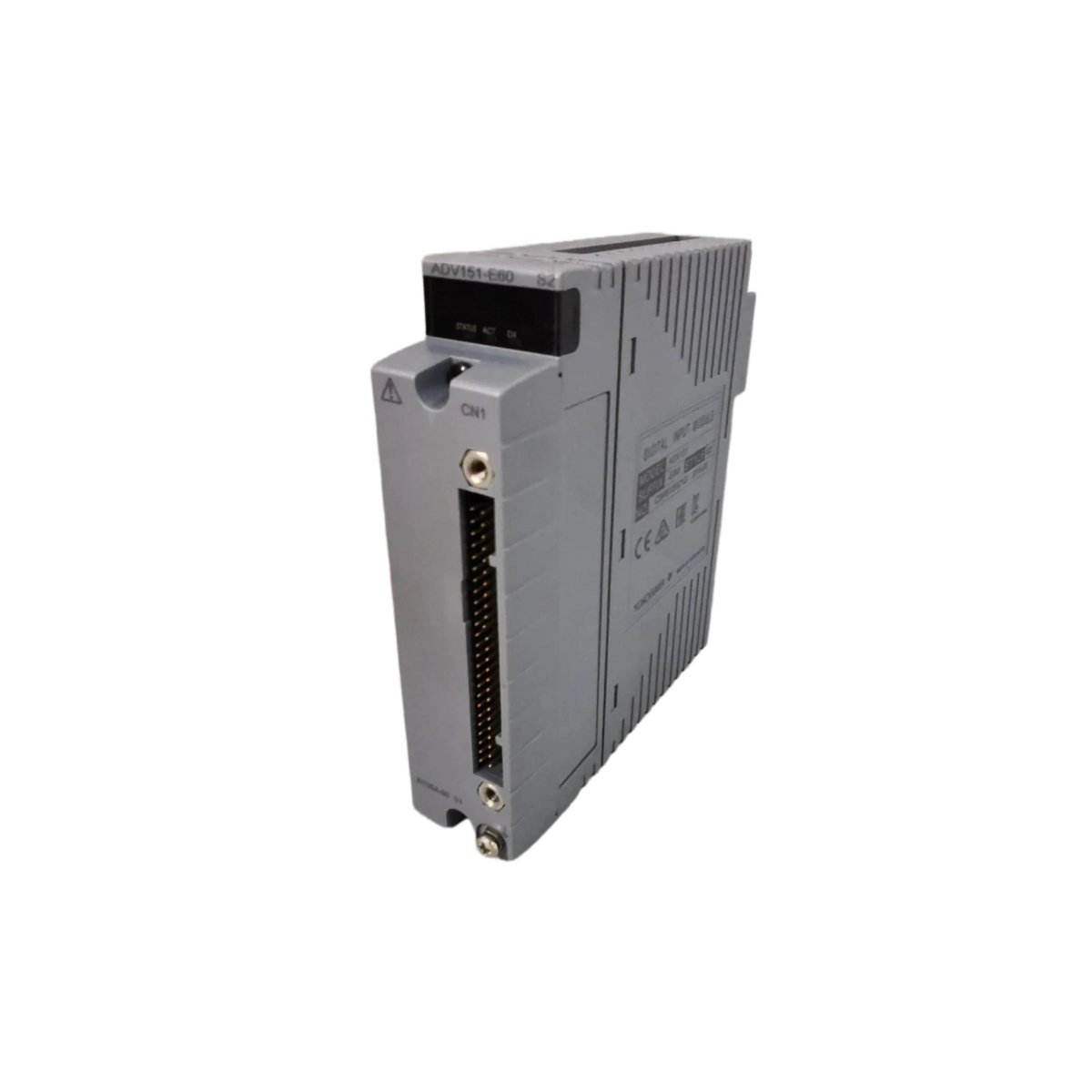

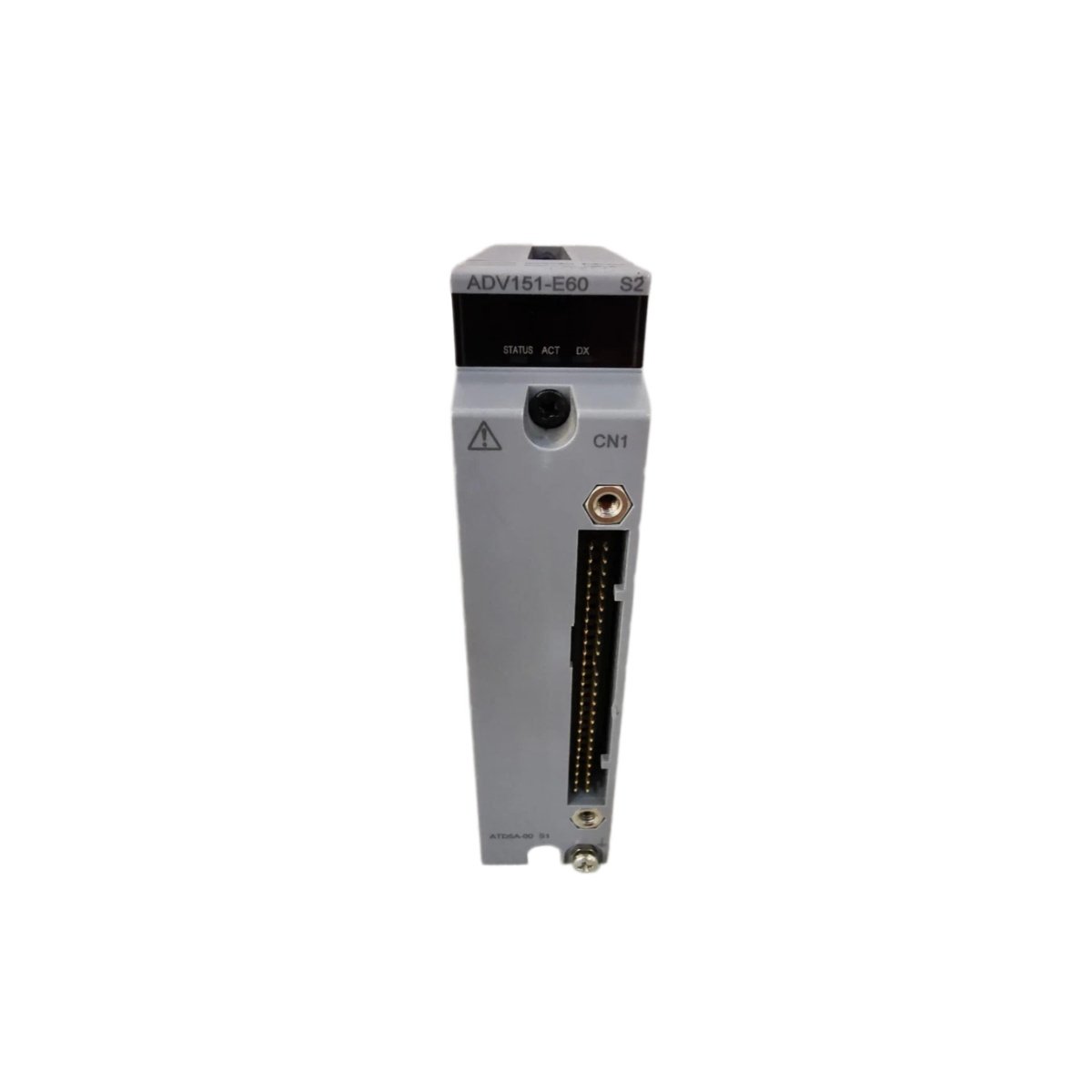

The Yokogawa ADV151-E00 features a compact form factor for mounting within the CENTUM node cabinet. Its dimensions measure 120.0 mm in height, 52.0 mm in width, and 125.0 mm in depth. The module weighs approximately 0.3 kilograms for straightforward installation procedures. This unit occupies a single slot in the ESB bus or E2 bus node. It connects to field wiring via the front-panel MIL-type connector. The module includes LED indicators for each channel and power status.
Input Specifications and Electrical Characteristics
This digital input module offers 32 discrete input channels for high-density applications. Each channel accepts 24 VDC signals from standard industrial sensors and contacts. The Yokogawa ADV151-E00 provides optical isolation between field signals and the internal logic. It features programmable input filters to eliminate contact bounce and noise. The module detects both dry contacts and voltage-sourced signals effectively. It operates with the standard ESB bus communication protocol. Consequently, this ensures seamless integration with the CENTUM VP system architecture.
Detailed Technical Specifications and Interface Details
We outline the module’s comprehensive technical parameters and operational capabilities below.
| Specification | Detail |
|---|---|
| Part Number | Yokogawa ADV151-E00 |
| Product Category | Digital Input Module |
| Dimensions (H x W x D) | 120.0 mm x 52.0 mm x 125.0 mm |
| Module Weight | Approximately 0.3 kg (0.66 lbs) |
| Number of Input Channels | 32 discrete input points |
| Input Signal Type | 24 VDC (sourcing or sinking configurable) |
| Input Voltage Range | 19.2 VDC to 28.8 VDC (nominal 24 VDC) |
| Input Current | 5 mA per channel at 24 VDC |
| ON-State Voltage | > 15.0 VDC |
| OFF-State Voltage | < 5.0 VDC |
| Input Impedance | Approximately 4.7 kΩ |
| Isolation Voltage | 1500 VAC (field to system bus) |
| Input Filter | Programmable from 0.5 ms to 20 ms |
| Response Time | 2 ms typical (filter bypass mode) |
| Number of Common Pairs | 16 isolated pairs (2 channels per common) |
| Field Wiring Connector | Front-panel MIL connector (40-pin) |
| Bus Interface | ESB bus or E2 bus compatible |
| Diagnostic Features | Channel status LEDs, open-circuit detection |
| Power Supply | 5 VDC from backplane |
| Power Consumption | 2.0 W typical |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Compliance | CE, RoHS |
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
