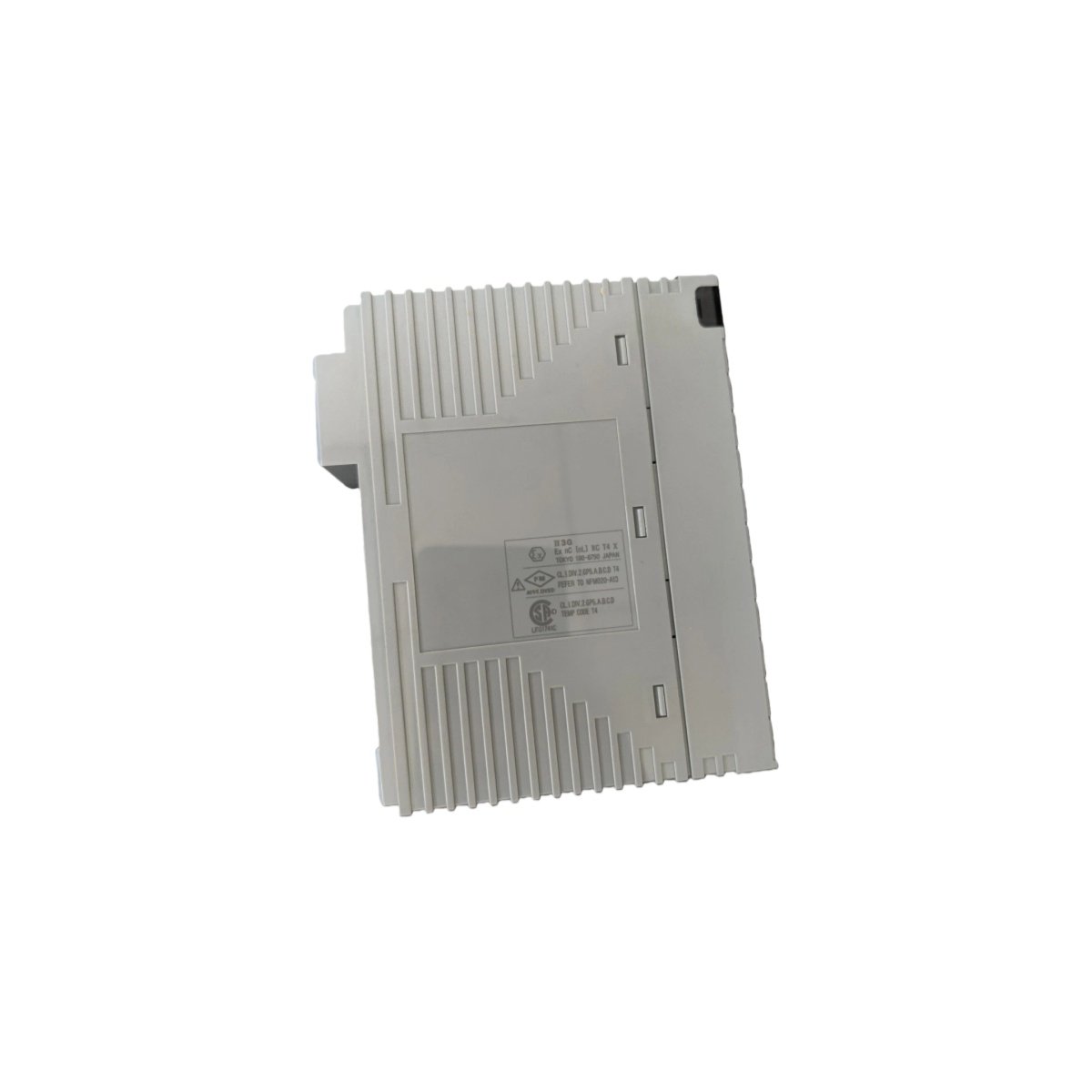

High-Voltage AC Input for CENTUM VP and CS 3000 Systems
The ADV141 digital input module provides 16 isolated AC input channels for Yokogawa CENTUM VP and CS 3000 distributed control systems. This module directly interfaces with 100–120 V AC field signals, eliminating the need for interposing relays when monitoring AC-powered equipment . Consequently, it simplifies system design and reduces overall component costs. It also supports dual-redundant configurations for enhanced system availability .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV141 |
| Product Type | AC Digital Input Module |
| Number of Inputs | 16 |
| Rated Voltage | 100 to 120 V AC, 50/60 Hz |
| Input ON Voltage | 80 V AC to 132 V AC (peak) |
| Input OFF Voltage | 20 V AC or less (peak) |
| Input Current (TYP) | 4.7 mA at 120 V/60 Hz |
| Input Current (MAX) | 7 mA per channel |
| Response Time | 160 ms or less |
| Dielectric Isolation | 2 kV AC (input to system), 1.35 kV AC (between commons) |
| Current Consumption | 500 mA at 5 V DC |
| Weight | 0.3 kg |
| Dimensions (W x H x D) | 3.2 x 10.7 x 13.0 cm |
| Operating Temperature | -20°C to +70°C |
| External Connection | Pressure clamp terminal or dedicated cable (AKB332) |
| Functions | Status input, pushbutton input |
| System Compatibility | CENTUM VP, CS 3000, ProSafe-RS |
| Country of Origin | Japan |
Input Characteristics and Signal Flexibility
The ADV141 module accepts AC signals within a rated voltage range of 100 to 120 V AC at 50 or 60 Hz . It employs opto-isolation on each channel, effectively protecting the control system from electrical noise and voltage transients . The module supports two functional modes: status input for standard ON/OFF detection and pushbutton input for edge counting applications . The status input response time is 160 ms, while the pushbutton input requires a minimum ON time of 200 ms and supports a maximum cycle rate of 2.5 Hz .
Physical Characteristics and Installation
The ADV141 weighs 0.3 kg and features a compact form factor measuring 3.2 x 10.7 x 13.0 cm . This module mounts into standard Yokogawa I/O racks and uses pressure clamp terminals or a dedicated AKB332 cable for field wiring . Its -20°C to +70°C operating temperature range ensures reliable performance across diverse industrial environments . Furthermore, the LED indicators on the front panel display real-time channel status, simplifying diagnostics and maintenance .
Application Scenarios
This module is widely deployed in applications where AC control power is standard and relay elimination is desired . Typical use cases include power plant utility monitoring, large motor control systems, building automation, and safety permissives . However, for 220–240 V AC applications, users should select the ADV142 module instead . The ADV141 is commonly found in oil and gas refineries, chemical plants, and power generation facilities where reliable AC signal acquisition is essential.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
