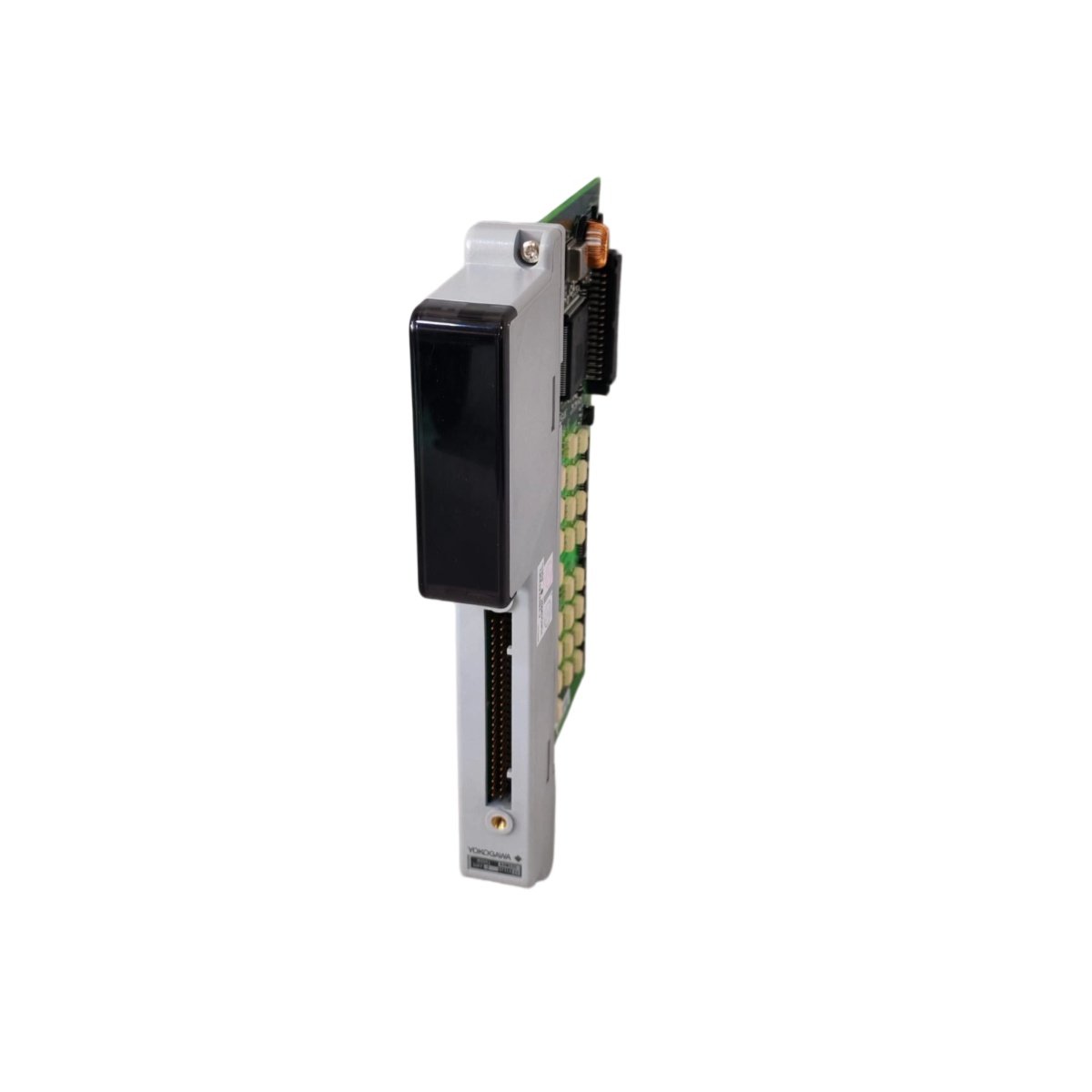

Overview of the Yokogawa ADM52 Contact Output I/O Card

The ADM52 works as a contact output I/O card within Yokogawa’s distributed control systems. This card switches external loads through isolated relay contacts for dependable process actuation. Engineers deploy it in process plants that demand precise ON/OFF control of field devices.

Key Technical Specifications of the ADM52

The ADM52 combines a rugged card body with a secure field wiring interface. Below you will find the core parameters that define this card’s performance envelope.

Physical Design and Interface Details

The ADM52 adopts a compact footprint that fits standard Yokogawa I/O racks. Its dimensions measure 130 mm in length, 100 mm in width, and 25 mm in depth. Moreover, the card weighs roughly 260 grams, which simplifies rack installation and field replacement. Twenty screw terminals secure field wiring without specialized tooling.

Performance and Switching Capabilities

This card provides sixteen contact output channels for flexible load control. Each contact handles 2 A at 250 V AC or 30 V DC for demanding loads. Optical isolation separates field circuits from internal logic, which protects sensitive control electronics. Consequently, the unit suits solenoid valves, indicators, and small motor starters.

Power and Environmental Considerations

The ADM52 operates on a 24 V DC nominal power supply. Power consumption remains approximately 4 W during normal operation. The operating temperature range spans 0°C to 55°C for industrial environments. Storage temperature extends from -20°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
