Product Overview

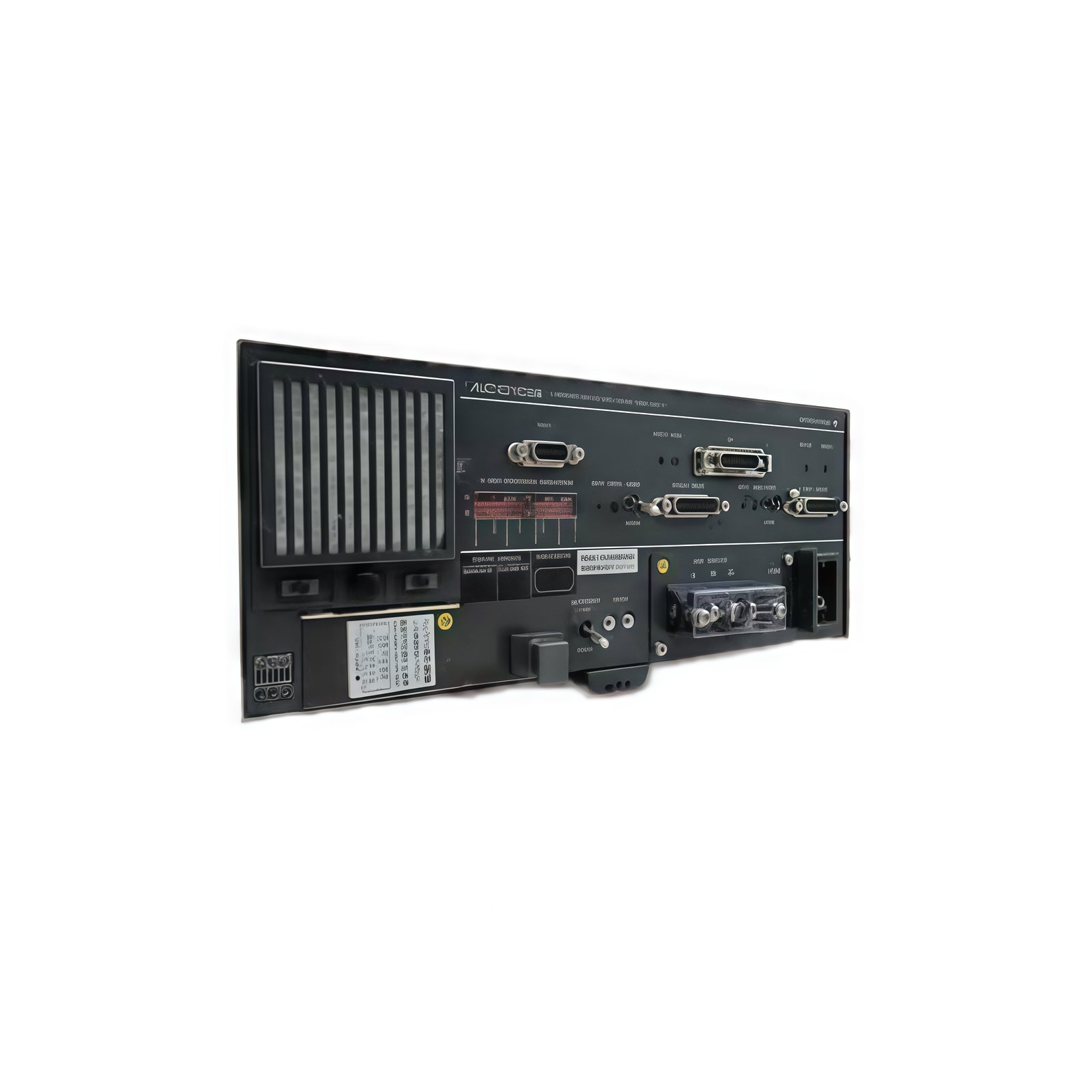

The Yokogawa ACG10S-E2110 operates as a communications gateway unit for industrial control networks. This device bridges field networks with supervisory systems, so data flows smoothly between layers. Consequently, plant engineers gain unified visibility across their process assets.
Technical Specifications
| Parameter | Detail |
|---|---|
| Model | ACG10S-E2110 |
| Brand | Yokogawa |
| Category | Communications Gateway Unit |
| Compatible Systems | CENTUM VP, ProSafe-RS, field networks |
| Interface Type | Ethernet and serial ports |
| Communication Protocols | Modbus, Ethernet/IP, OPC |
| Data Transfer Rate | 100 Mbps Ethernet |
| Weight | Approximately 0.9 kg |
| Dimensions | 45 mm × 130 mm × 120 mm |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approximately 6 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Style | DIN rail or panel mount |
| Component Count | One gateway unit, two connector sets |
| Energy Storage | Not applicable (line-powered device) |
Design and Construction
This gateway comes in a compact housing, which fits crowded control cabinets easily. Additionally, the metal enclosure shields internal electronics from electromagnetic noise. Front-facing LEDs report link status, so technicians spot faults without extra tools. Moreover, the DIN rail clip enables fast installation and removal.
Compatibility and Installation
This unit connects CENTUM VP systems with Modbus and Ethernet/IP field devices. During setup, engineers should assign unique addresses, because duplicate nodes disrupt network traffic. Furthermore, the gateway supports redundant power inputs for critical loops. The 24 V DC supply keeps wiring consistent across the cabinet.
Key Benefits
Operators choose this gateway for its multi-protocol support and stable throughput. As a result, it integrates legacy devices without costly controller upgrades. This model also simplifies network diagnostics through clear status reporting. Ultimately, its dependable operation reduces integration time and maintenance effort.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 52 × 125 mm |
