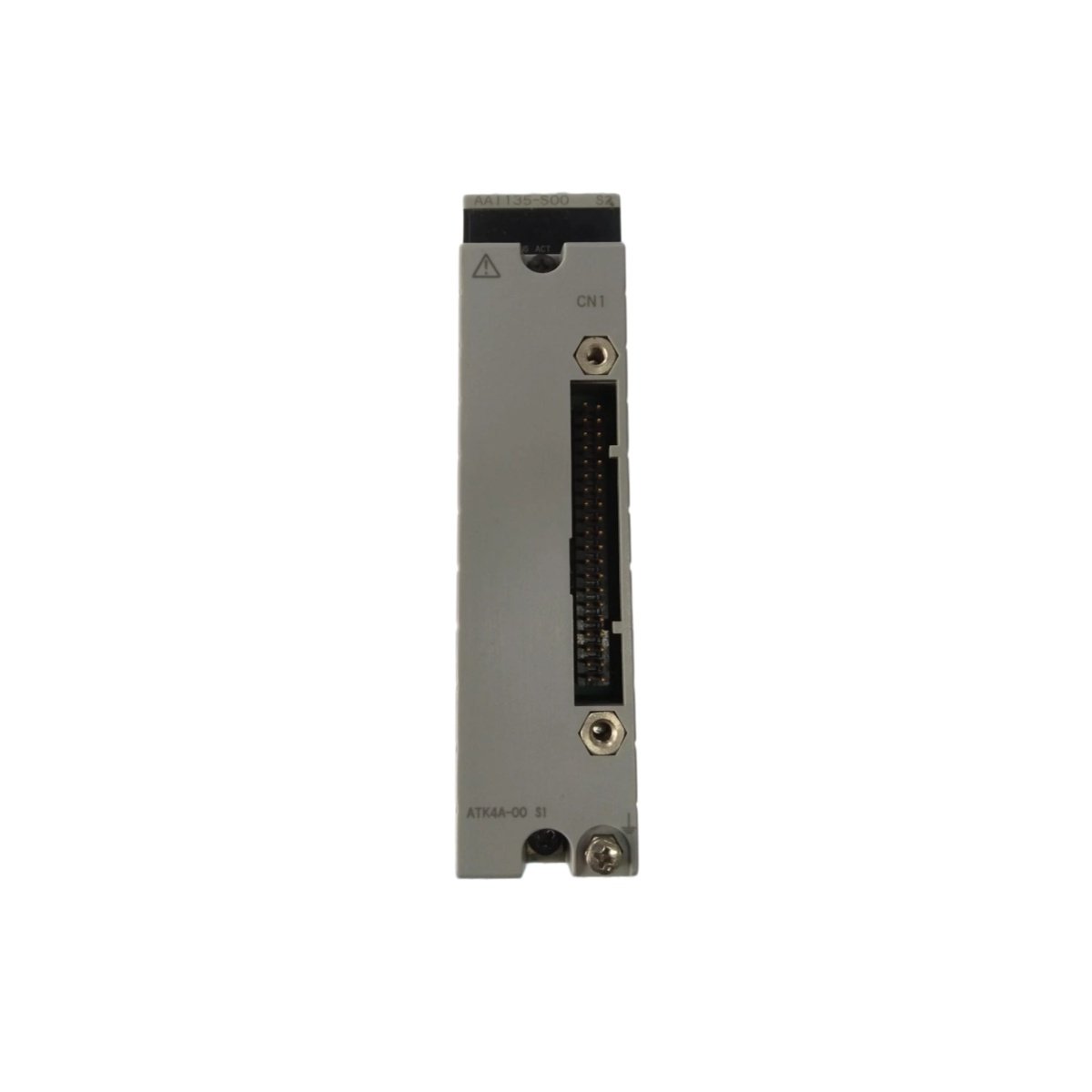

The Yokogawa AAI135-S03 captures analog signals from field instruments. This module accepts 1–5 V DC inputs from pressure and temperature transmitters. It integrates seamlessly into Yokogawa Centum VP and Stardom systems. You will rely on this unit for precise voltage-based process measurements.

Technical Specifications Overview

This analog input module provides thirty-two input channels on a single board. Each channel handles a 1–5 V DC signal with high accuracy. The Yokogawa AAI135-S03 features a 16-bit analog-to-digital converter per channel. A built-in low-pass filter removes unwanted high-frequency noise. Consequently, you obtain clean and stable voltage readings consistently.

Internal Design and Energy Storage

The Yokogawa AAI135-S03 contains one main PCBA with 118 discrete components. Key parts include thirty-two precision voltage dividers and filtering capacitors. The module also holds two electrolytic capacitors storing 680 µF of energy. This storage provides 10 ms of hold-up time during power dips. Additionally, a field-programmable gate array manages all channel scanning simultaneously.

Physical Interfaces and Mounting

You will find one front-facing 50-pin connector on this module. This connector accepts a Yokogawa terminal block such as A4N5L. Each signal wire connects to a spring-clamp termination externally. A green LED indicates normal communication with the field control unit. A red LED will illuminate for any channel out-of-range condition. Two locking levers secure the Yokogawa AAI135-S03 firmly in its slot.

Installation and Operational Reliability

Install this analog input module in a clean and dry control cabinet. Maintain 25 mm of space above for proper cooling airflow. The module performs a self-diagnostic routine on every power-up cycle. Therefore, you get immediate verification of healthy hardware status. This unit supports online replacement without shutting down the entire system.
