Technical Specifications and Core Features

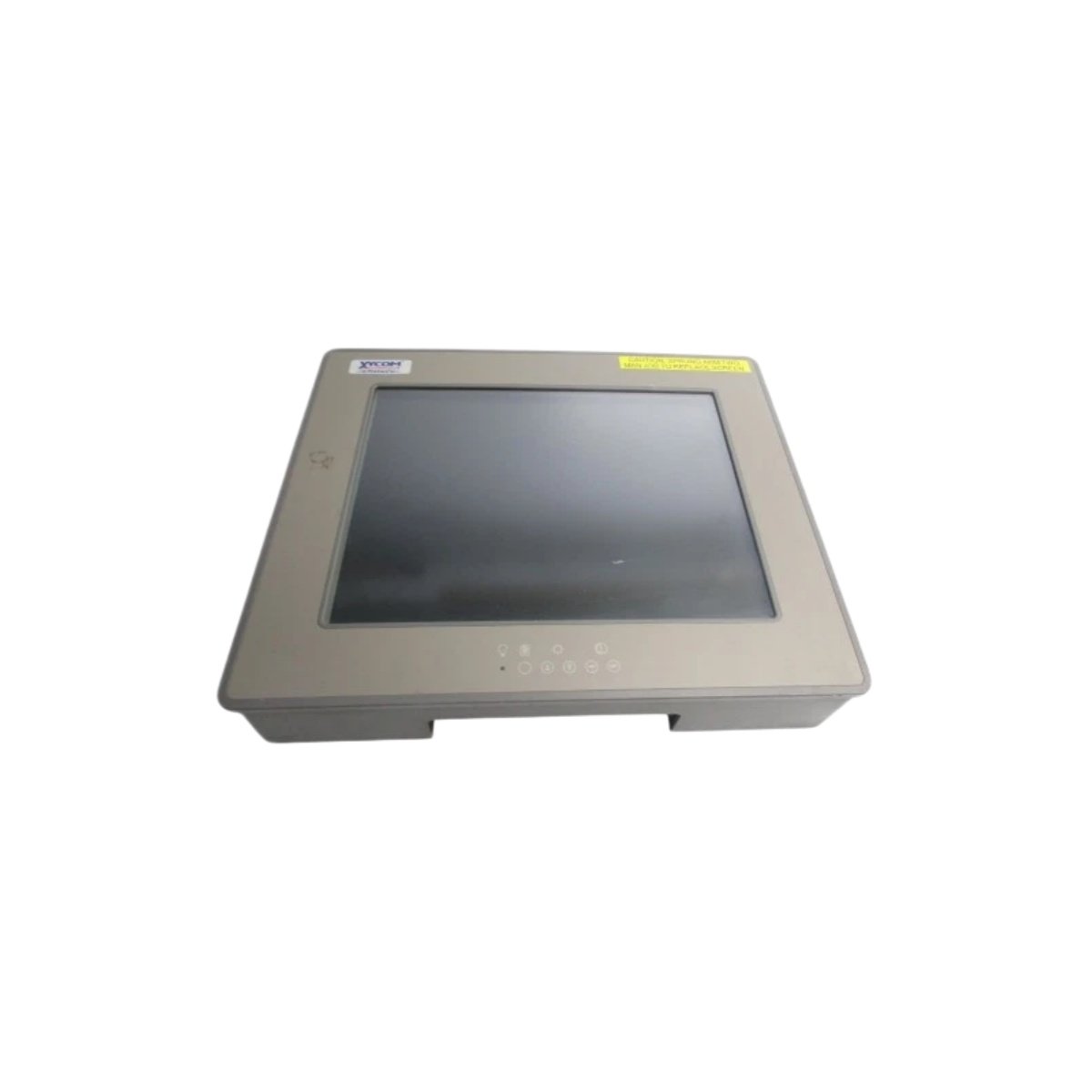

The Xycom XT1502T industrial operator interface combines a high-resolution display with a rugged analog resistive touchscreen for reliable human-machine interaction. This 15-inch TFT LCD unit delivers crisp visuals at 1024 x 768 (XGA) resolution and supports up to 262,144 colors for detailed graphical interfaces . Users can operate the touchscreen over 1 million touch actuations, ensuring long-term durability in active production environments . The unit measures approximately 375 mm x 285 mm x 65 mm and weighs 3.5 kg, making it suitable for panel or VESA mounting .
| Parameter | Specification |
|---|---|
| Manufacturer | Xycom / GE Fanuc |
| Model Number | XT1502T |
| Display Size | 15-inch TFT LCD |
| Resolution | 1024 x 768 (XGA) |
| Display Colors | 262,144 |
| Brightness | 200–400 NIT (depending on variant) |
| Contrast Ratio | 150:1 to 500:1 |
| Touch Technology | Analog resistive |
| Touch Lifespan | >1 million actuations |
| Video Input | VGA (15-pin analog) |
| Serial Interfaces | RS-232, RS-485 |
| USB Ports | 2 x USB 2.0 |
| Ethernet | 10/100 Mbps TCP/IP |
| Front Panel Protection | NEMA 4/12, IP65 |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Backlight Life | 50,000 hours |
| Power Input | 24V DC (12–36V DC range) |
| Power Consumption | ≤ 30W |
| Dimensions (W x H x D) | 375 x 285 x 65 mm |
| Weight | Approx. 3.5 kg |
| Certifications | UL, cUL, CE |
Functional Capabilities and Connectivity
The XT1502T actively displays real-time process data, machine status, and control interfaces for industrial automation applications. It automatically scales and centers images for standard VESA modes, ensuring optimal display quality across different resolutions . The analog resistive touchscreen supports single-point touch input and works effectively even when operators wear gloves. Moreover, the unit includes front-panel OSD controls with a rear lock switch to prevent unauthorized adjustments during normal operation . Engineers can connect the monitor to host systems via VGA video input and use the serial ports for touchscreen communication. The unit ships with necessary VGA and serial cables .
Application Scenarios and Rugged Design
This operator interface suits demanding environments such as factory floors, chemical plants, and power generation facilities. Its IP65-rated front panel resists dust, water, and corrosive substances, making it ideal for food processing, washdown areas, and outdoor installations . The UL and cUL recognized design also supports installation in hazardous locations . The Xycom XT1502T performs effectively in manufacturing line monitoring, SCADA data acquisition, and process control applications . Many system integrators choose this unit for both new installations and legacy system upgrades due to its robust construction and flexible connectivity options.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
